Park / Neutral Position Switch: Components

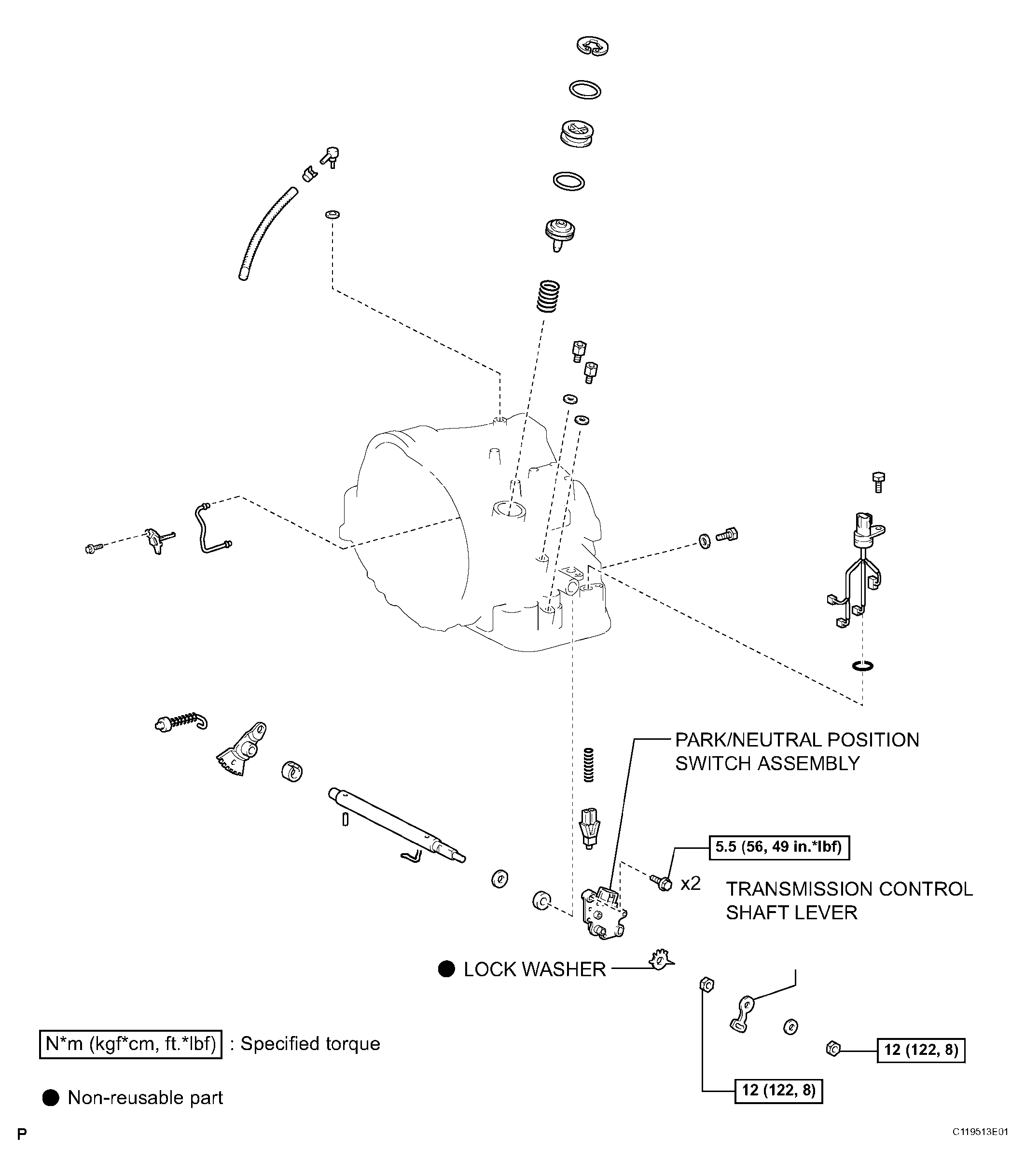

Fig 1: Exploded View Of Park / Neutral Position Switch Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Park / Neutral Position Switch Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
