Park / Neutral Position Switch: Installation

INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
1. Install the park/neutral position switch to the manual valve shaft.
2. Temporarily install the 2 bolts.
3. Place a new lock plate and tighten the nut.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  Fig 1: Installing Park/Neutral Position Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Temporarily install the control shaft lever.
5. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
6. Remove the control shaft lever.

  Fig 2: Removing Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Align the groove with the neutral basic line.
8. Hold the switch in position and tighten the 2 bolts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  Fig 3: Aligning Groove With Neutral Basic Line
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Using a screwdriver, stake the nut with the lock plate.

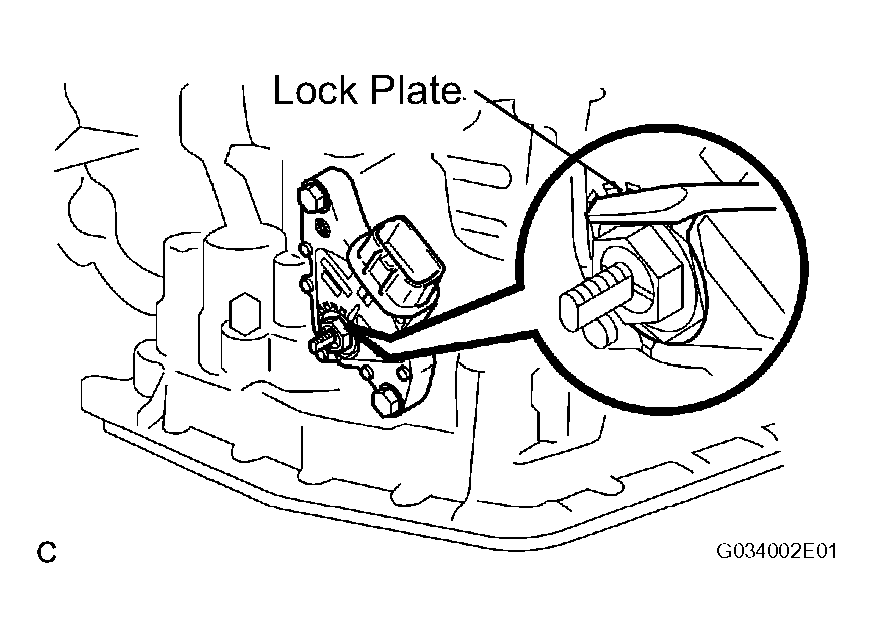

  Fig 4: Staking Nut With Lock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Install the control shaft lever, washer and nut.
  Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)
11. Connect the park/neutral position switch connector.
INSTALL TRANSMISSION CONTROL ASSEMBLY
1. Temporarily install the control cable to the control shaft lever with the nut.

  Fig 5: Installing Transmission Control Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the control cable with the clip to the bracket.
  NOTE: Insert the cable securely.
INSTALL BATTERY CARRIER
1. Install the battery carrier with the 4 bolts.
  Torque: 13 N*m (132 kgf*cm, 10 ft.*lbf)
INSTALL BATTERY
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )

Fig 6: Installing Battery Carrier
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY (See ADJUSTMENT )
