Second Brake Piston: Components

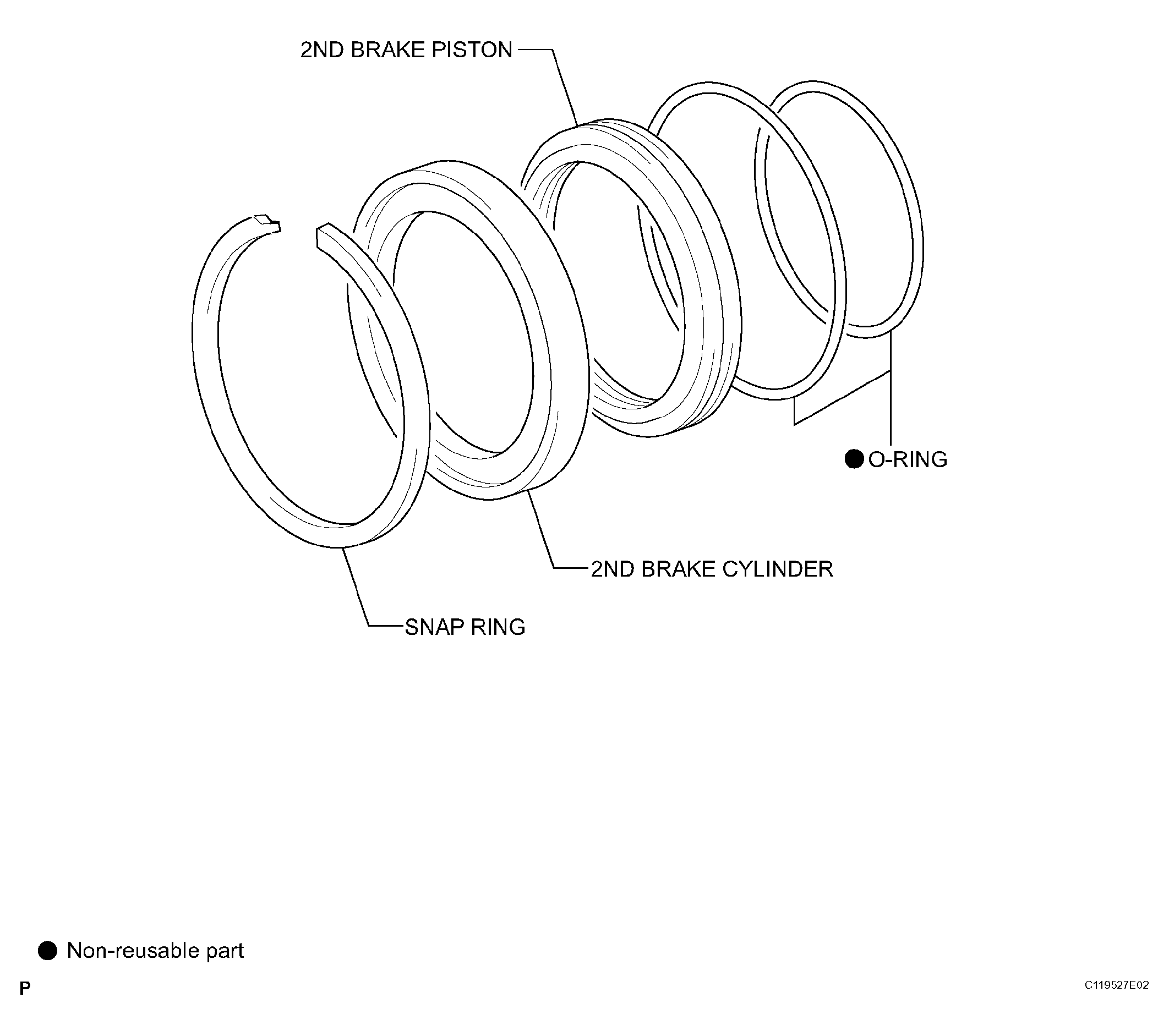

Fig 1: Exploded View Of Second Brake Piston Components

G04463102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
