Second Coast Brake: Components

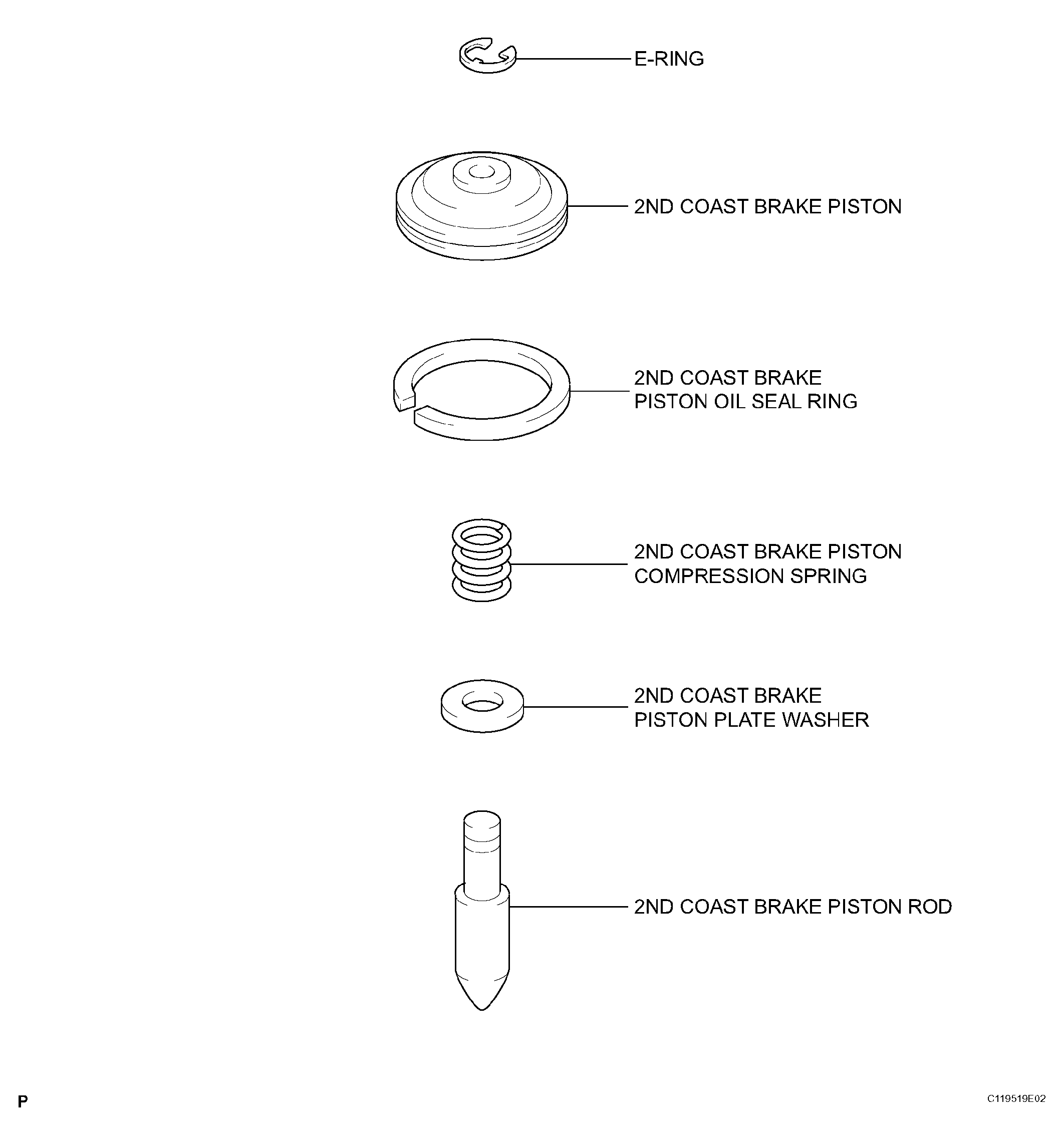

Fig 1: Exploded View Of Second Coast Brake Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
