On-Vehicle Inspection

  1. CHECK SHIFT LOCK OPERATION
    1. Shift the shift lever to P position.
    2. Turn the ignition switch to LOCK.
    3. Check that the shift lever cannot be shifted to any other positions other than P.
    4. Turn the ignition switch to ON, depress the brake pedal and check that the shift lever can be shifted to any other positions.

      If operation cannot be done as specified, inspect the shift lock control ECU.

  2. CHECK SHIFT LOCK RELEASE BUTTON OPERATION
    1. Using a screwdriver, remove the shift lock release button cover.
    2. When operating the shift lever with the shift lock release button pressed and the ignition key in ACC or ON, check that the lever can be shifted to any other position.

      If operation cannot be done as specified, check the shift lever assembly installation condition.

  3. CHECK KEY INTERLOCK OPERATION
    1. Turn the ignition switch to ON.
    2. Depress the brake pedal and shift the shift lever to any other positions other than P.
    3. Check that the ignition key cannot be turned to LOCK.
    4. Shift the shift lever to P position, turn the ignition key to LOCK and check that the ignition key can be removed.

      If operation cannot be done as specified, inspect the shift lock control ECU.

  4. INSPECT SHIFT LOCK CONTROL ECU
    1. Using a voltmeter, measure the voltage at each terminal.

      HINT:

      Do not disconnect the shift lock control ECU connector.

      Fig 1: Measuring Voltage Shift Lock Control ECU
      G04462681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TERMINAL DESCRIPTION SPECIFIED CONDITION

      Terminal Measuring Condition Voltage (V)
      5 (IG) - 1 (E) Ignition switch ON 10 to 14
      5 (IG) - 1 (E) Ignition switch OFF Below 1
      3 (STP) - 1 (E) Depress brake pedal 10 to 14
      3 (STP) - 1 (E) Release brake pedal Below 1

      If the result is not as specified, replace the shift lock control ECU.

    2. Using an ohmmeter, measure the resistance at terminal E (1) and body ground.

      HINT:

      Do not disconnect the shift lock control ECU connector.

      Fig 2: Measuring Resistance Terminal E (1) And Body Ground
      G04462682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TERMINAL DESCRIPTION SPECIFIED CONDITION (1 OF 3)

      Terminal Measuring Condition Specified Value
      1 (E) - Body ground Always Below 1

      If the result is not as specified, replace the shift lock control ECU.

    3. Disconnect the connector of shift lock control ECU.
    4. Using an ohmmeter, measure the resistance between terminals.

      Resistance

      TERMINAL DESCRIPTION SPECIFIED CONDITION (2 OF 3)

      Terminal Measuring Condition Specified Value
      A5 (IG) - B2 (SLS+) Switch ON Below 1
      A5 (IG) - B2 (SLS+) Switch OFF 10 k or higher

      If the result is not as specified, replace the shift lock control ECU.

      Fig 3: Shift Lock Control ECU Connector
      G04462683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect STP terminal to the batteries positive (+) terminal, and E terminal to the battery negative (-) terminal, and apply about 12 V between STP - E terminals.
    6. Using an ohmmeter, measure the resistance between terminals.

      Resistance

      TERMINAL DESCRIPTION SPECIFIED CONDITION (3 OF 3)

      Terminal Measuring Condition Specified Value
      A1 (E) - B1 (SLS-) Connect Battery Below 1
      A1 (E) - B1 (SLS-) Disconnect Battery 10 k or higher

      If the result is not as specified, replace the shift lock control ECU.

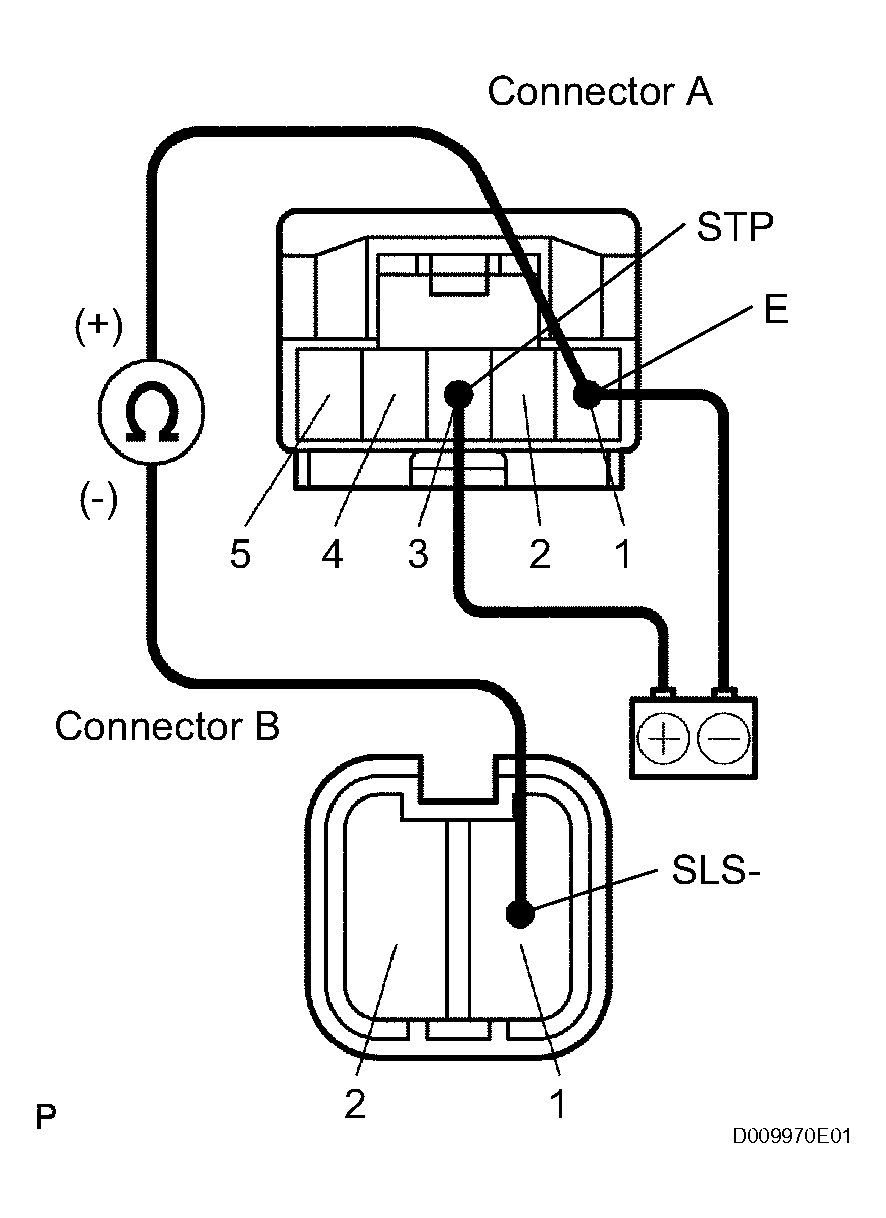

      Fig 4: Measuring Resistance Between Terminals
      G04462684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT SHIFT LOCK SOLENOID
    1. Disconnect the solenoid connector.
    2. Apply battery positive voltage between terminals 1 and 2. Check that operation noise can be heard from the solenoid.

      If the solenoid does not operate, replace the solenoid.

      Fig 5: Identifying Positive Voltage Between Terminals 1 And 2
      G04462685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
