Transmission Wire: Components

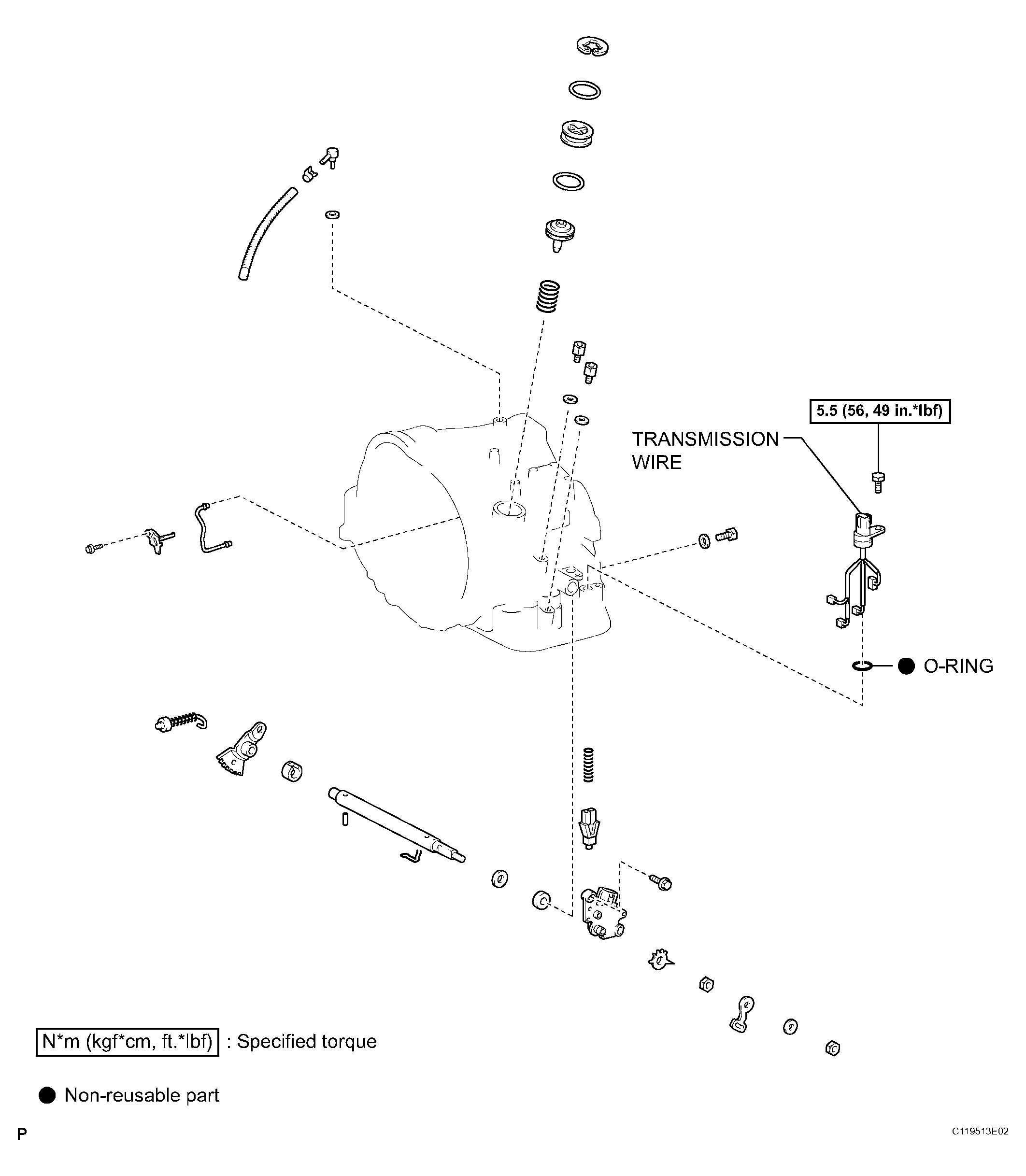

Fig 1: Transmission Wire Replacement Components With Torque Specifications (1 Of 2)
G04462657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transmission Wire Replacement Components With Torque Specifications (2 Of 2)
G04462658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
