UNDERDRIVE Clutch: Components

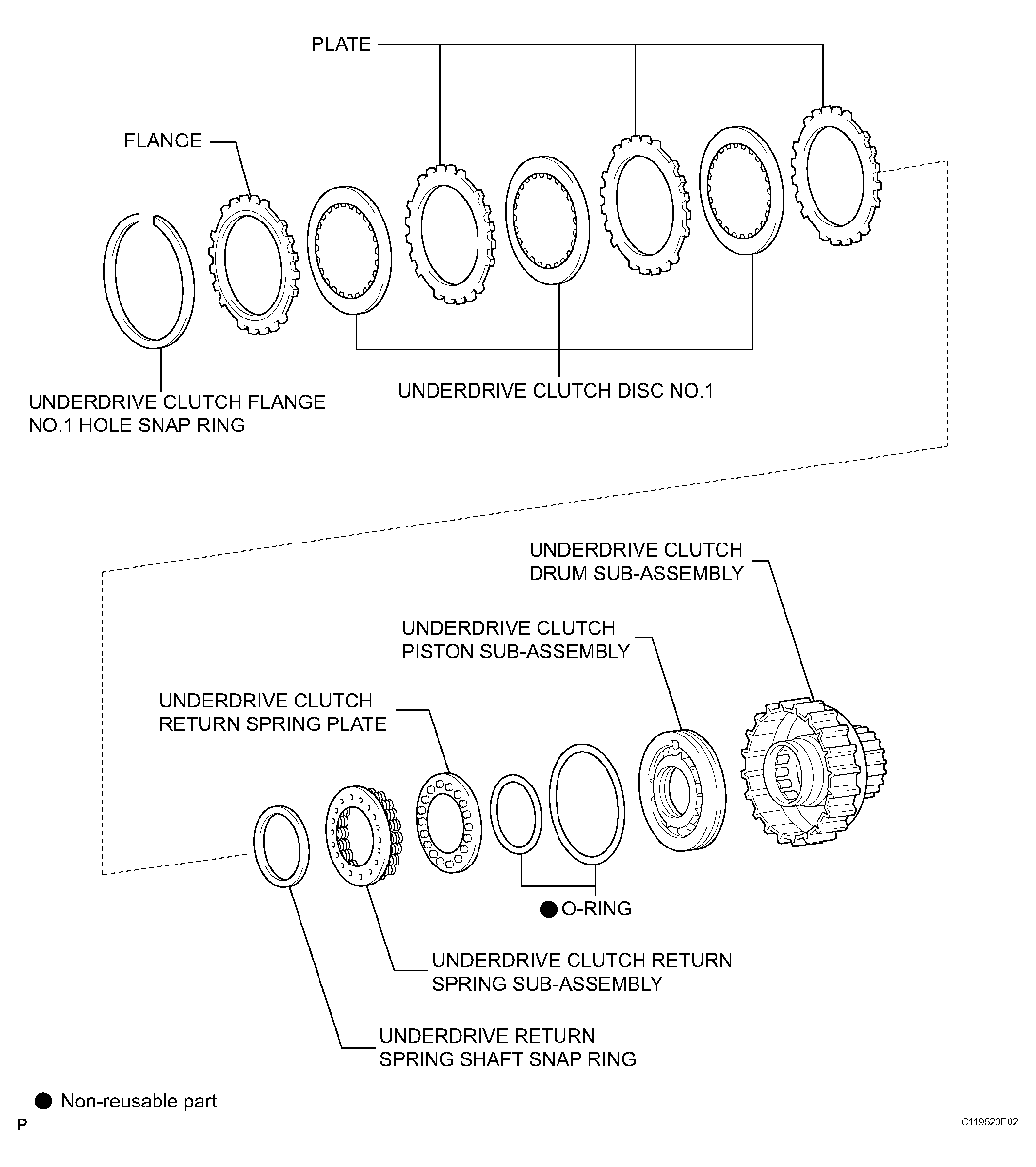

Fig 1: Exploded View Of Underdrive Clutch Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
