Valve Body Assembly: Installation

  1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
    1. Coat 3 new O-rings with ATF and install them to each solenoid valves.
    2. Install the No. 1 and No. 2 solenoid valves with the bolt (A bolt).
    3. Install the No. 3 solenoid valve with the bolt (B bolt).
    4. Install the line pressure control solenoid valve and lock plate with the bolt (C bolt).

      Torque: Bolt A

      11 N*m (110 kgf*cm, 8 ft.*lbf)

      Bolt B

      11 N*m (110 kgf*cm, 8 ft.*lbf)

      Bolt C

      6.5 N*m (66 kgf*cm, 58 in.*lbf)

      Bolt length:

      Bolt A: 25 mm (0.984 in.)

      Bolt B: 60 mm (2.362 in.)

      Bolt C: 12 mm (0.472 in.)

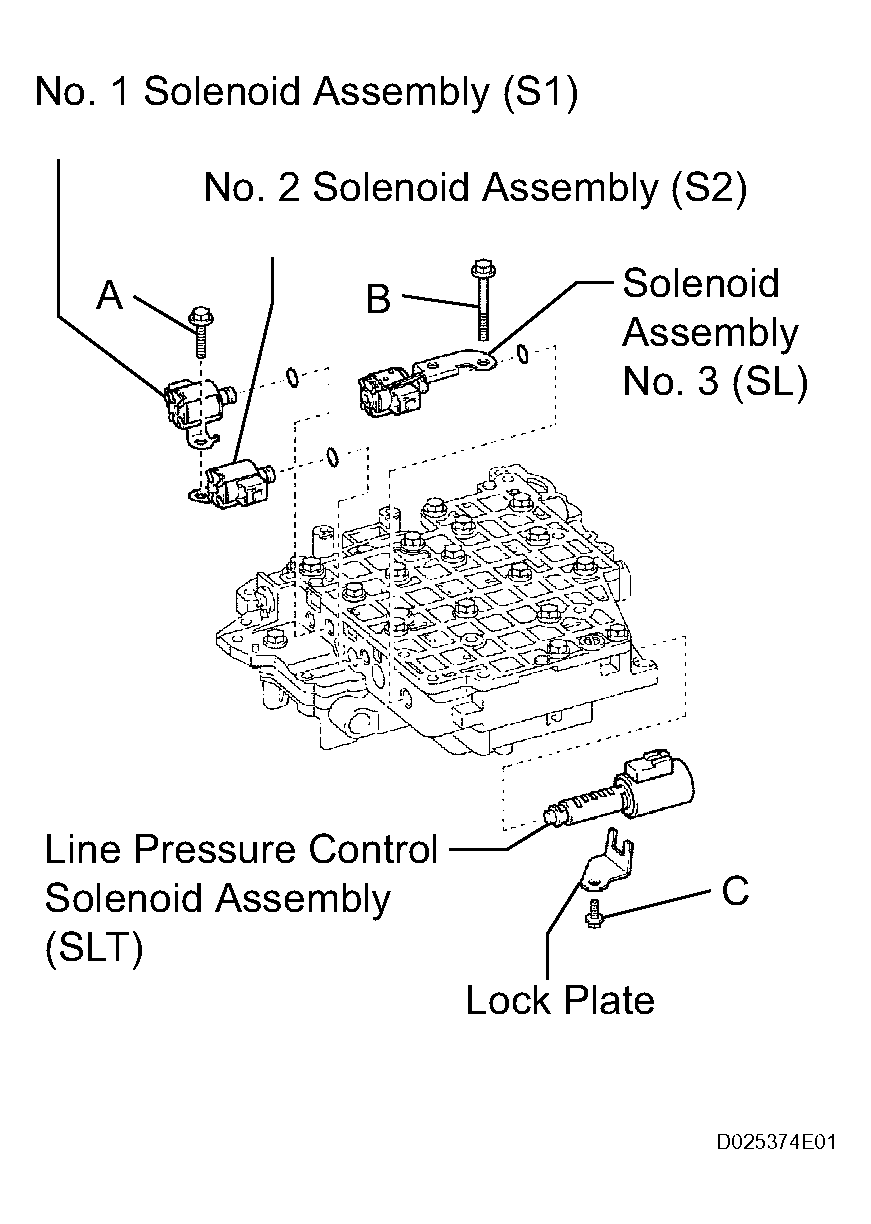

      Fig 1: Installing Line Pressure Control Solenoid Valve And Lock Plate With Bolt
      G04462673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using needle-nose pliers, while connecting the manual valve connecting rod to the manual valve lever, install the valve body with the manual valve together.

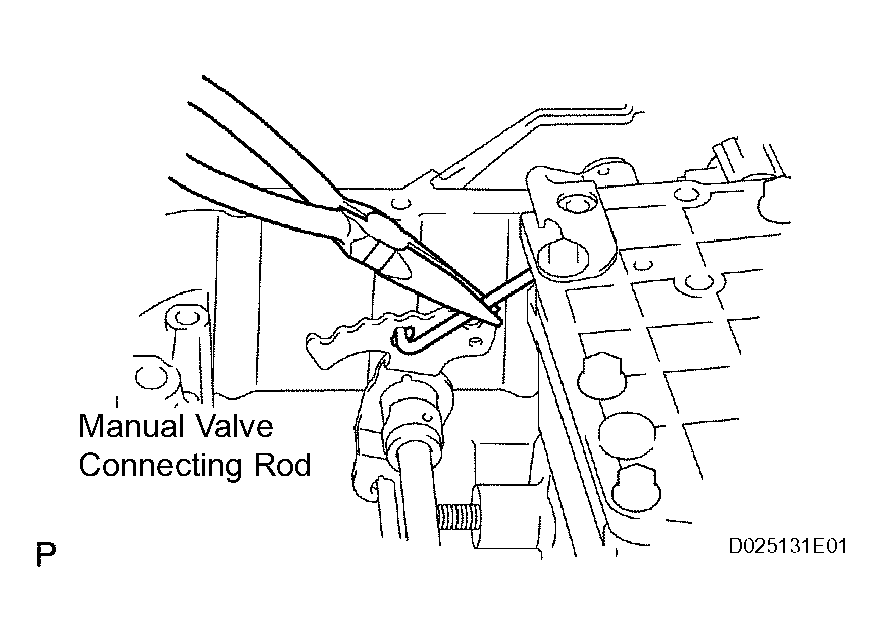

      Fig 2: Connecting Manual Valve Connecting Rod To Manual Valve Lever
      G04462674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the 17 bolts.

      Bolt length:

      Bolt A: 20 mm (0.79 in.)

      Bolt B: 28 mm (1.10 in.)

      Bolt C: 50 mm (1.97 in.)

      Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)

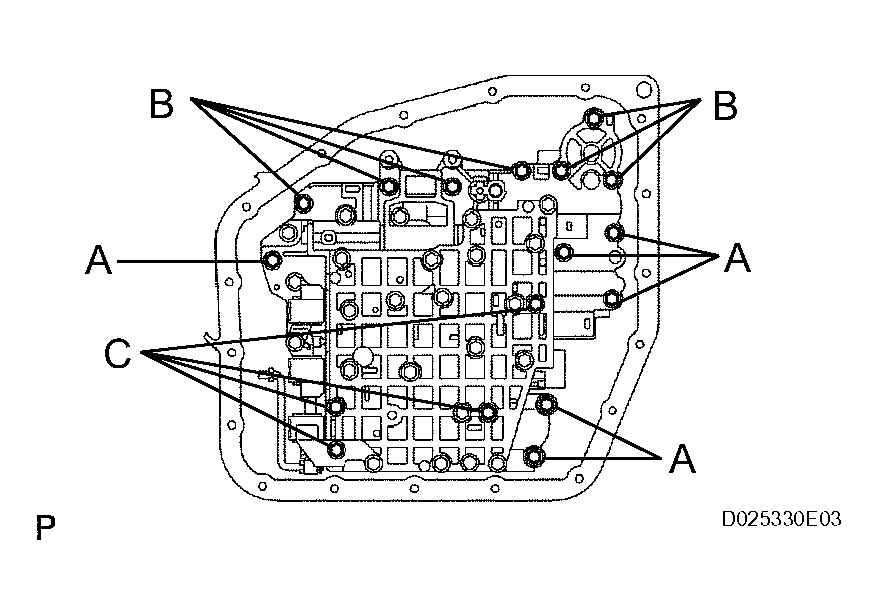

      Fig 3: Identifying Bolts Length Specification
      G04462675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the manual detent spring with the bolt.

      Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)

      Fig 4: Install Manual Detent Spring Bolt With Torque Specification
      G04462676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Connect the 4 solenoid connectors.

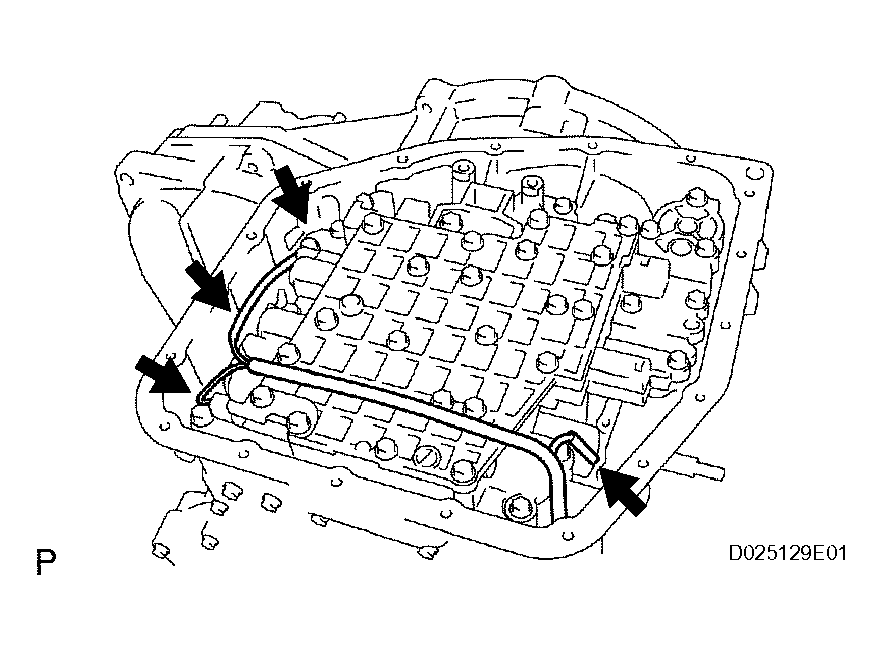

      Fig 5: Connecting Solenoid Connectors
      G04462677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
    1. Install the oil strainer with the 3 bolts.

      Bolt length:

      Bolt A: 12 mm (0.47 in.)

      Bolt B: 20 mm (0.79 in.)

      Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)

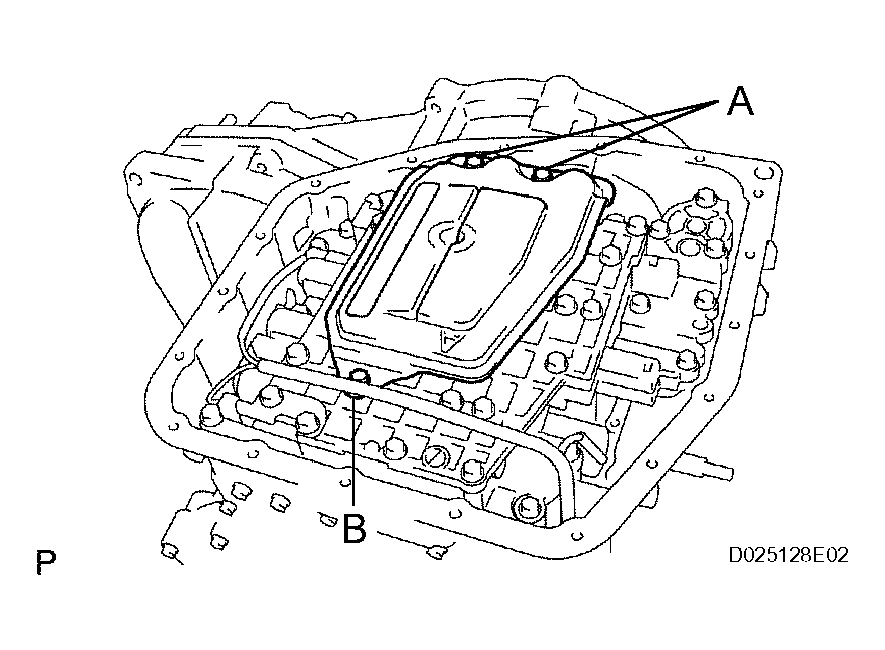

      Fig 6: Installing Oil Strainer
      G04462678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUBASSEMBLY
    1. Install the 2 magnets to the oil pan.
      Fig 7: Installing Magnets To Oil Pan
      G04462679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new gasket to the oil pan and install them to the transaxle.
    3. Install the 18 bolts.

      Torque: 5.3 N*m (55 kgf*cm, 48 in.*lbf)

  4. INSTALL ENGINE UNDER COVER LH
  5. ADD AUTOMATIC TRANSAXLE FLUID

    ATF type: T-IV

    Capacity: 3.0 liters (3.2 US qts, 2.6 lmp. qts)

    Fig 8: Installing Engine Under Cover LH
    G04462680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT AUTOMATIC TRANSAXLE FLUID

    HINT:

    (See INSPECTION PROCEDURE  )

  7. RESET MEMORY

    HINT:

    (See INITIALIZATION  )
