Toyota
›
2006
›
Matrix Base, FWD, Standard
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio/Visual System
›
Audio And Visual System
›
Illumination Circuit
›
Wiring Diagram
Illumination Circuit: Wiring Diagram

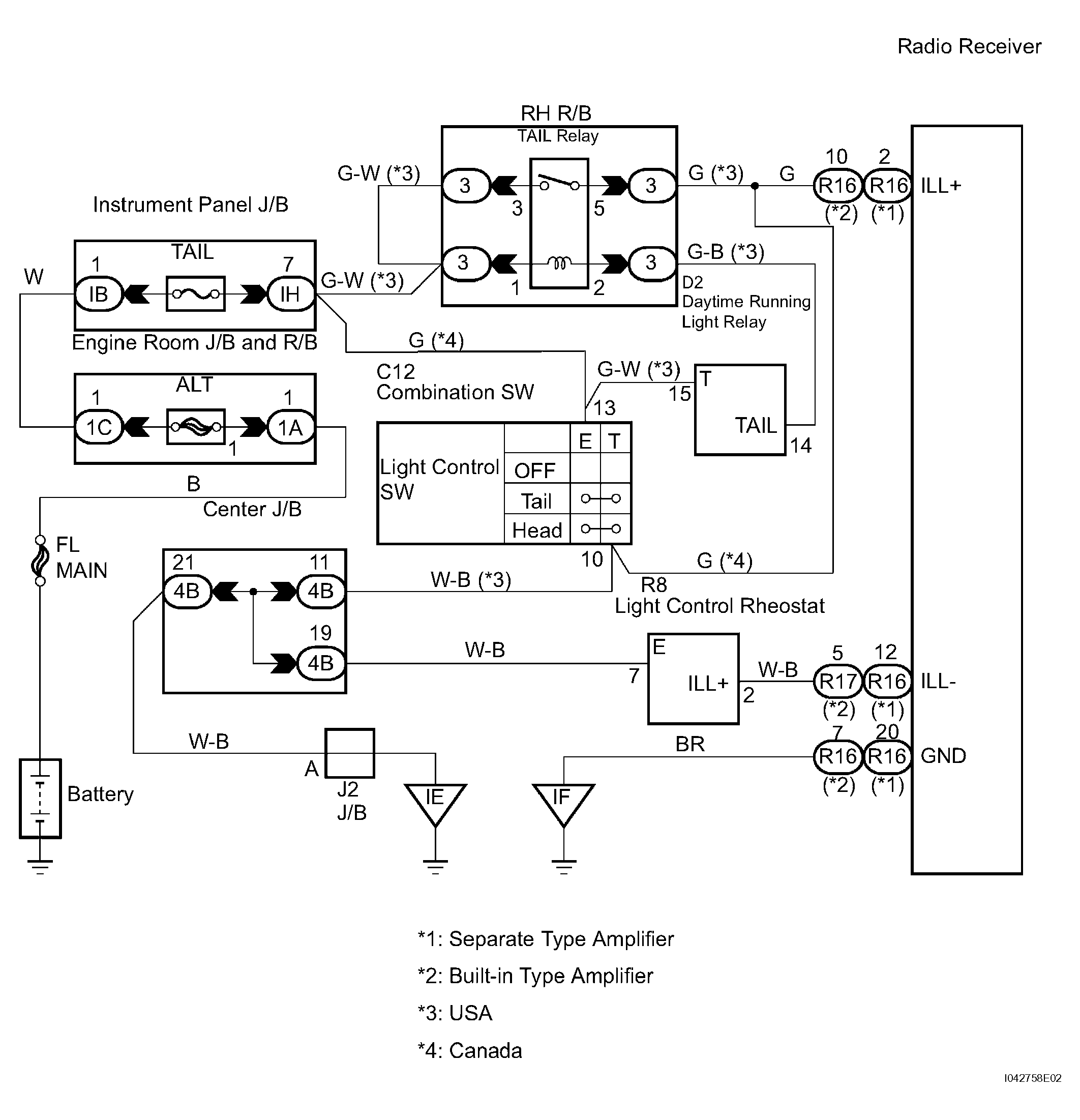

Fig 1: Illumination Circuit Wiring Diagram
