Front Axle Hub Bolt: Components

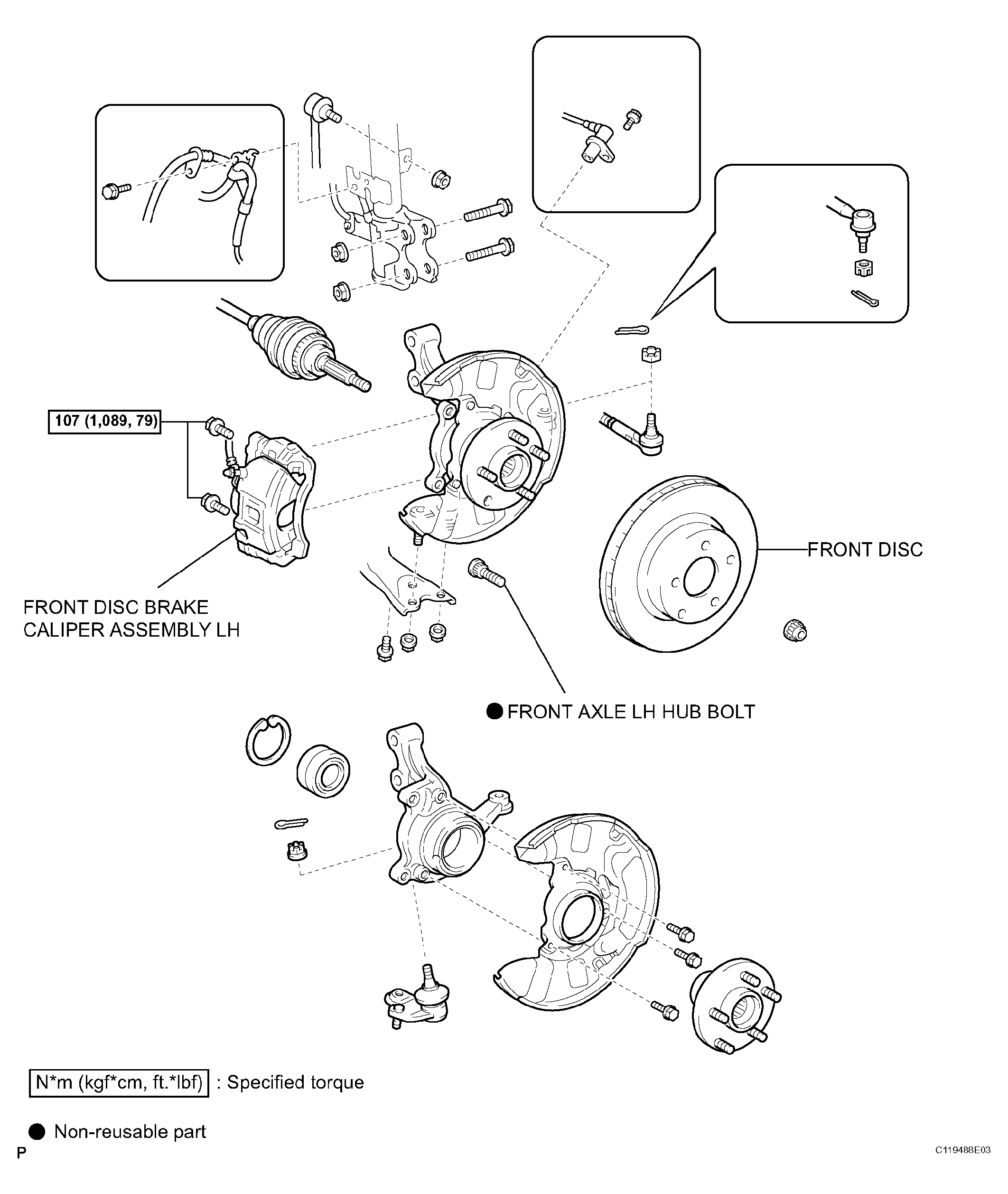

Fig 1: Identifying Front Axle Hub Bolt Components

G04464843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
