Rear Axle Hub Bolt: Installation

  1. INSTALL REAR AXLE LH HUB BOLT (2WD DRIVE TYPE)
    1. Install a washer and nut to a new LH hub bolt as shown in the illustration.
    2. Using a hammer handle or an equivalent to hold the hub & bearing assembly, install the LH hub bolt by tightening the nut.

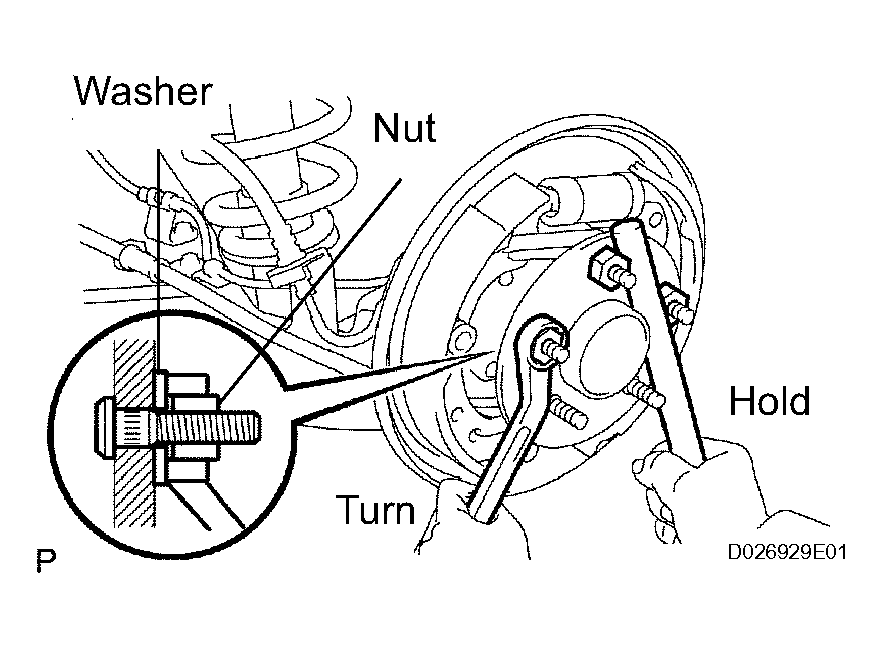

      Fig 1: Installing Rear Axle LH Hub Bolt (2WD Drive Type)
      G04464866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR AXLE LH HUB BOLT (4WD DRIVE TYPE)
    1. Using a press and a extension bar, install a new LH hub bolt.
  3. INSTALL REAR AXLE CARRIER SUB-ASSEMBLY LH (4WD DRIVE TYPE) (See REMOVAL  )
  4. INSTALL NO. 1 REAR WHEEL BEARING DUST DEFLECTOR LH (4WD DRIVE TYPE) (See REMOVAL  )
    Fig 2: Installing Rear Axle LH Hub Bolt (4WD Drive Type)
    G04464867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. TEMPORARILY TIGHTEN UPPER CONTROL ARM ASSEMBLY (4WD DRIVE TYPE) (See REMOVAL  )
  6. INSTALL REAR AXLE ASSEMBLY LH (4WD DRIVE TYPE) (See REMOVAL  )
  7. TEMPORARILY TIGHTEN NO. 1 REAR SUSPENSION ARM ASSEMBLY LH (See REMOVAL  )
  8. INSTALL NO. 4 REAR BRAKE TUBE (4WD DRIVE TYPE) (See REMOVAL  )
  9. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY (4WD DRIVE TYPE) (See  INSTALLATION  )
  10. APPLICATION HIGH TEMPERATURE GREASE (4WD DRIVE TYPE) (See  REASSEMBLY  )
  11. INSTALL REAR BRAKE SHOE (4WD DRIVE TYPE) (See  REASSEMBLY  )
  12. INSTALL REAR BRAKE AUTOMATIC ADJUST LEVER LH (4WD DRIVE TYPE) (See  REASSEMBLY  )
  13. INSTALL FRONT BRAKE SHOE (4WD DRIVE TYPE) (See  REASSEMBLY  )
  14. INSTALL PARKING BRAKE SHOE STRUT SET LH (4WD DRIVE TYPE) (See  REASSEMBLY  )
  15. INSTALL REAR SPEED SENSOR LH (4WD DRIVE TYPE) (See REMOVAL  )
  16. INSPECT REAR DRUM BRAKE INSTALLATION (4WD DRIVE TYPE) (See  REASSEMBLY  )
  17. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY (for Rear Drum Brake)
  18. INSTALL REAR AXLE SHAFT LH NUT (4WD DRIVE TYPE) (See INSTALLATION  )
  19. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY (4WD DRIVE TYPE)
  20. INSPECT BEARING BACKLASH (4WD DRIVE TYPE) (See ON-VEHICLE INSPECTION  )
  21. INSPECT AXLE HUB DEVIATION (4WD DRIVE TYPE) (See ON-VEHICLE INSPECTION  )
  22. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY (4WD DRIVE TYPE) (See ON-VEHICLE INSPECTION  )
  23. ADJUST REAR DRUM BRAKE SHOE CLEARANCE (4WD DRIVE TYPE) (See  REASSEMBLY  )
  24. INSTALL REAR AXLE SHAFT LH NUT (4WD DRIVE TYPE) (See INSTALLATION  )
  25. INSTALL REAR STABILIZER LINK ASSEMBLY LH (4WD DRIVE TYPE) (See  INSTALLATION  )
  26. BLEED BRAKE LINE (4WD DRIVE TYPE)

    HINT:

    See BLEEDING

  27. INSTALL REAR DISC (DISC REAR RAKE TYPE) (See INSTALLATION  )
  28. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH (DISC REAR BRAKE TYPE) (See INSTALLATION  )
  29. INSTALL REAR WHEEL

    Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

  30. STABILIZE SUSPENSION (4WD DRIVE TYPE)
  31. FULLY TIGHTEN UPPER CONTROL ARM ASSEMBLY (4WD DRIVE TYPE) (See  INSTALLATION  )
  32. FULLY TIGHTEN NO. 1 REAR SUSPENSION ARM ASSEMBLY LH (4WD DRIVE TYPE)
  33. INSPECT FLUID LEVEL IN RESERVOIR (4WD DRIVE TYPE)
  34. INSPECT AND ADJUST REAR WHEEL ALIGNMENT (4WD DRIVE TYPE)

    HINT:

    See REAR WHEEL ALIGNMENT (FOR 4WD)

  35. INSPECT ABS SPEED SENSOR SIGNAL
    1. Vehicle Stability Control System (See TEST MODE PROCEDURE )
    2. Anti-lock Brake System (See TEST MODE PROCEDURE )
