Ignition Switch: Removal

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE STEERING COLUMN COVER LWR
1. Remove the 3 screws, then remove the steering column cover LWR.

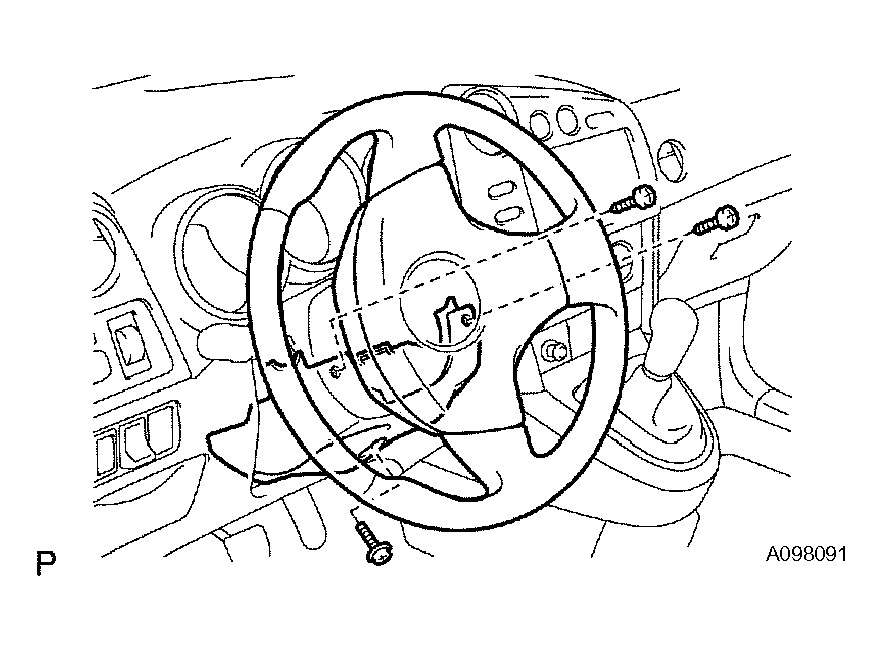

  Fig 1: Removing Steering Column Cover LWR Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE IGNITION OR STARTER SWITCH ASSEMBLY
1. Disconnect the ignition switch connector and unlock warning switch connector.

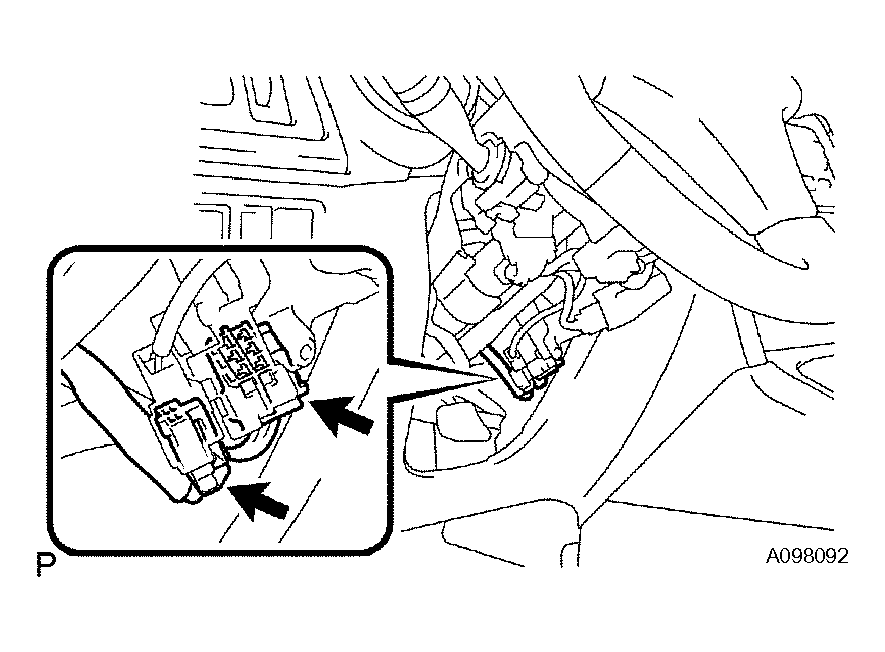

  Fig 2: Disconnecting Ignition Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the unlock warning switch connector from the ignition switch assembly.

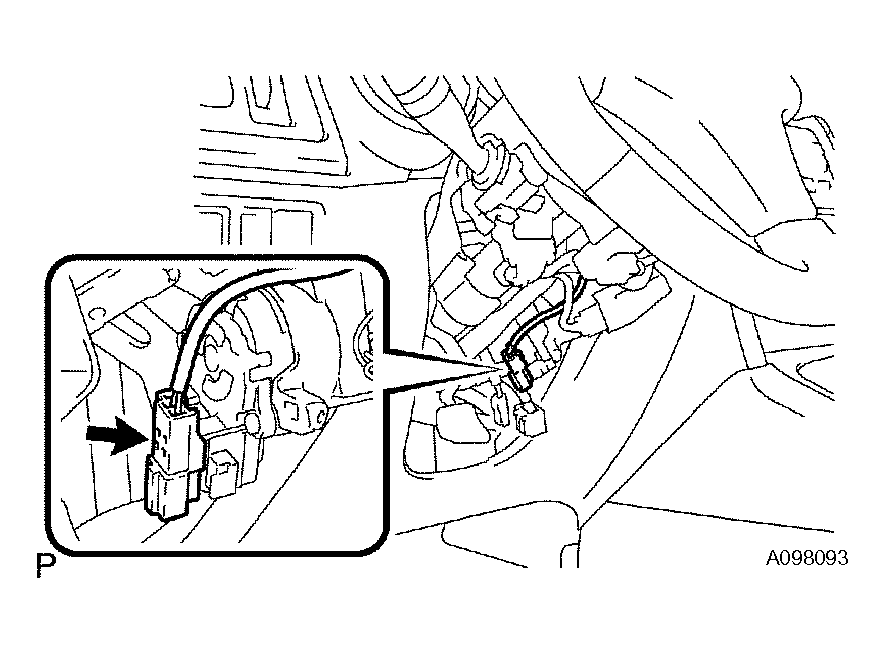

  Fig 3: Disconnecting Unlock Warning Switch Connector From Ignition Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the wire harness from the steering assembly.

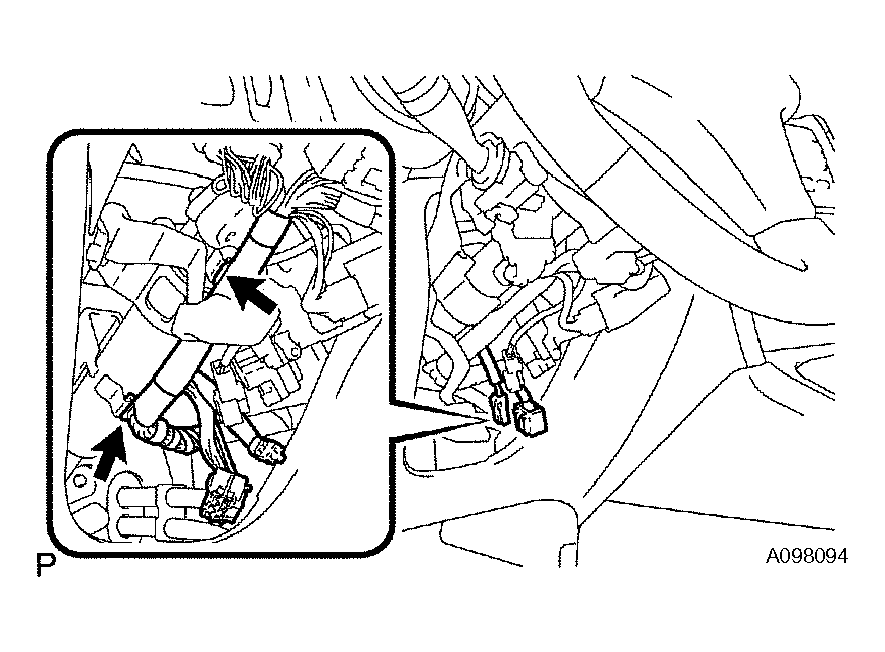

  Fig 4: Disconnecting Wire Harness From Steering Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 screws, then remove the ignition switch assembly.

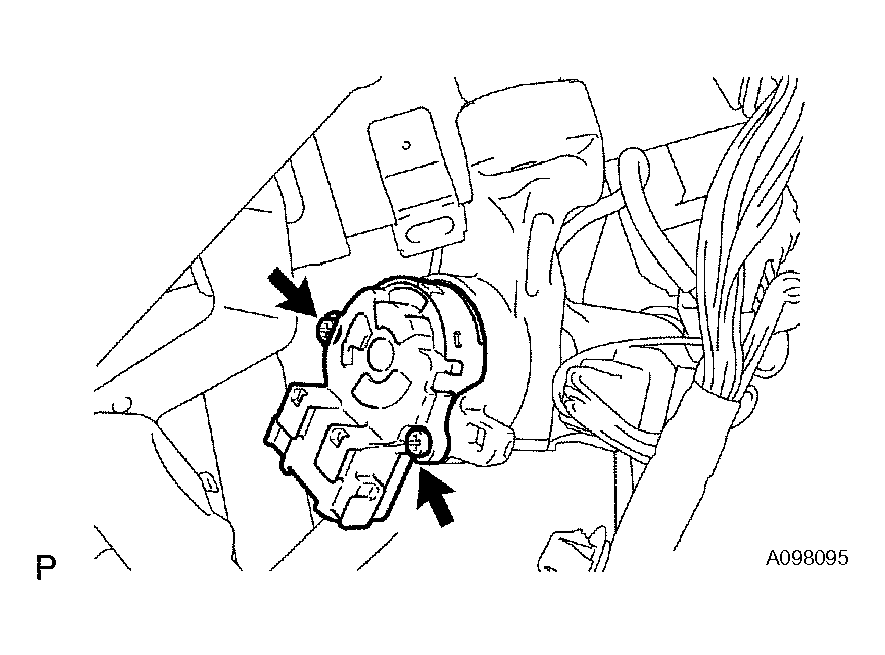

  Fig 5: Removing Ignition Switch Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
