Engine Control System (1ZZ-FE) - SFI System (For 2WD) - Introduction, System & Circuit Checks
›
EVAP System
›
Wiring Diagram
EVAP System: Wiring Diagram

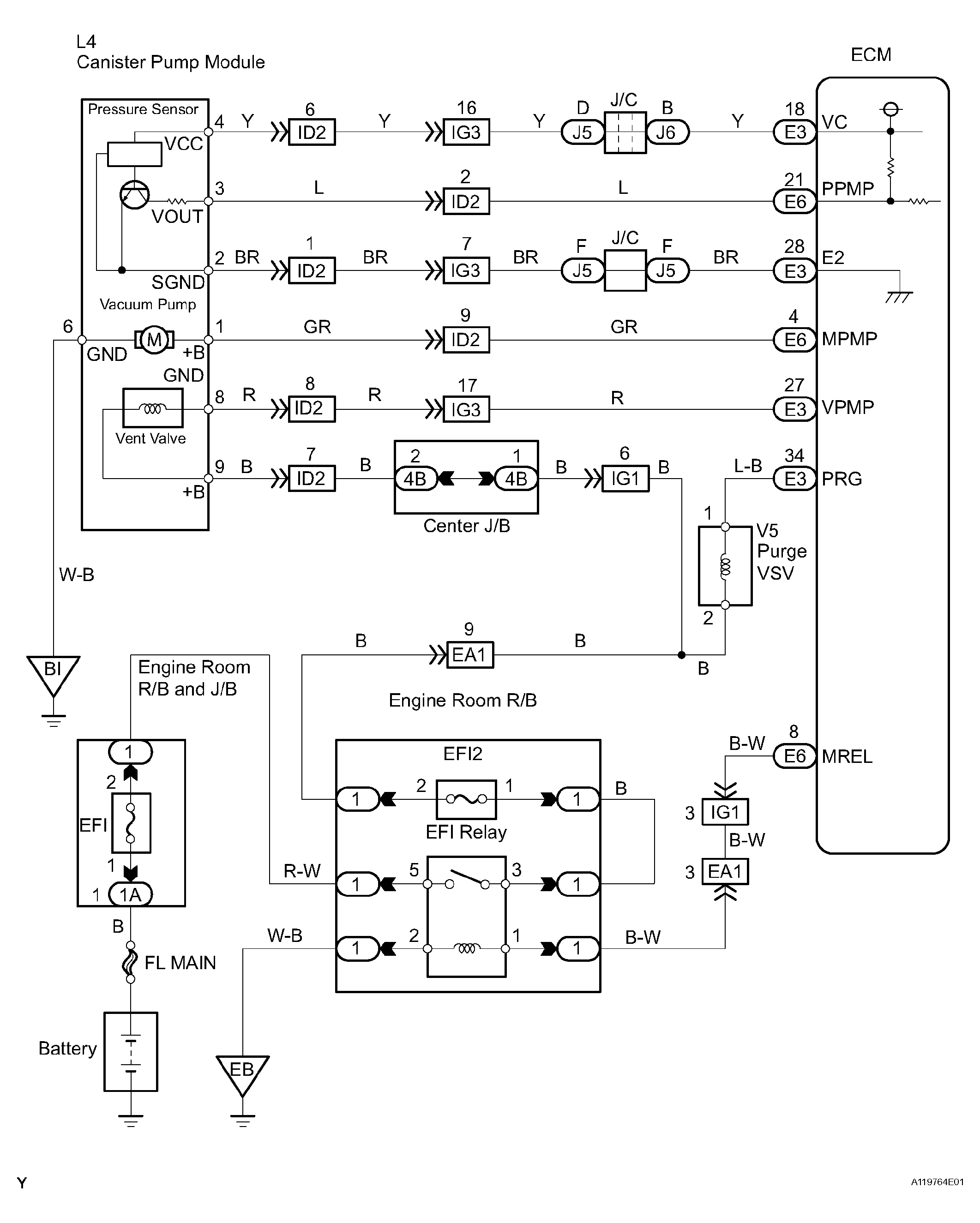

Fig 1: EVAP System - Wiring Diagram
