EVAP System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

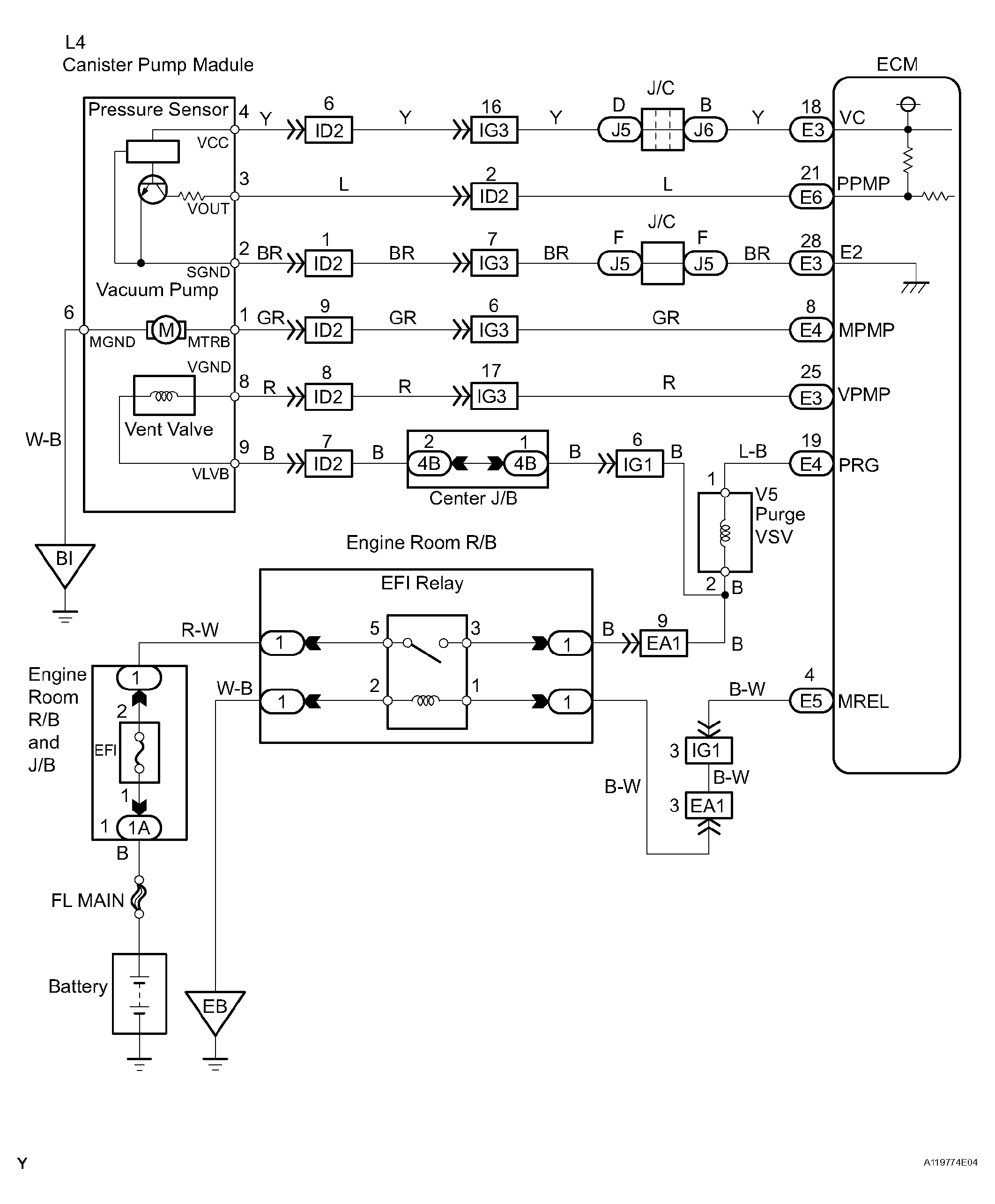

Fig 1: Canister Pump Module - Wiring Diagram
G04460834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
