Engine Ignition System (1ZZ-FE)
›
Ignition System
›
Parts Location
Parts Location

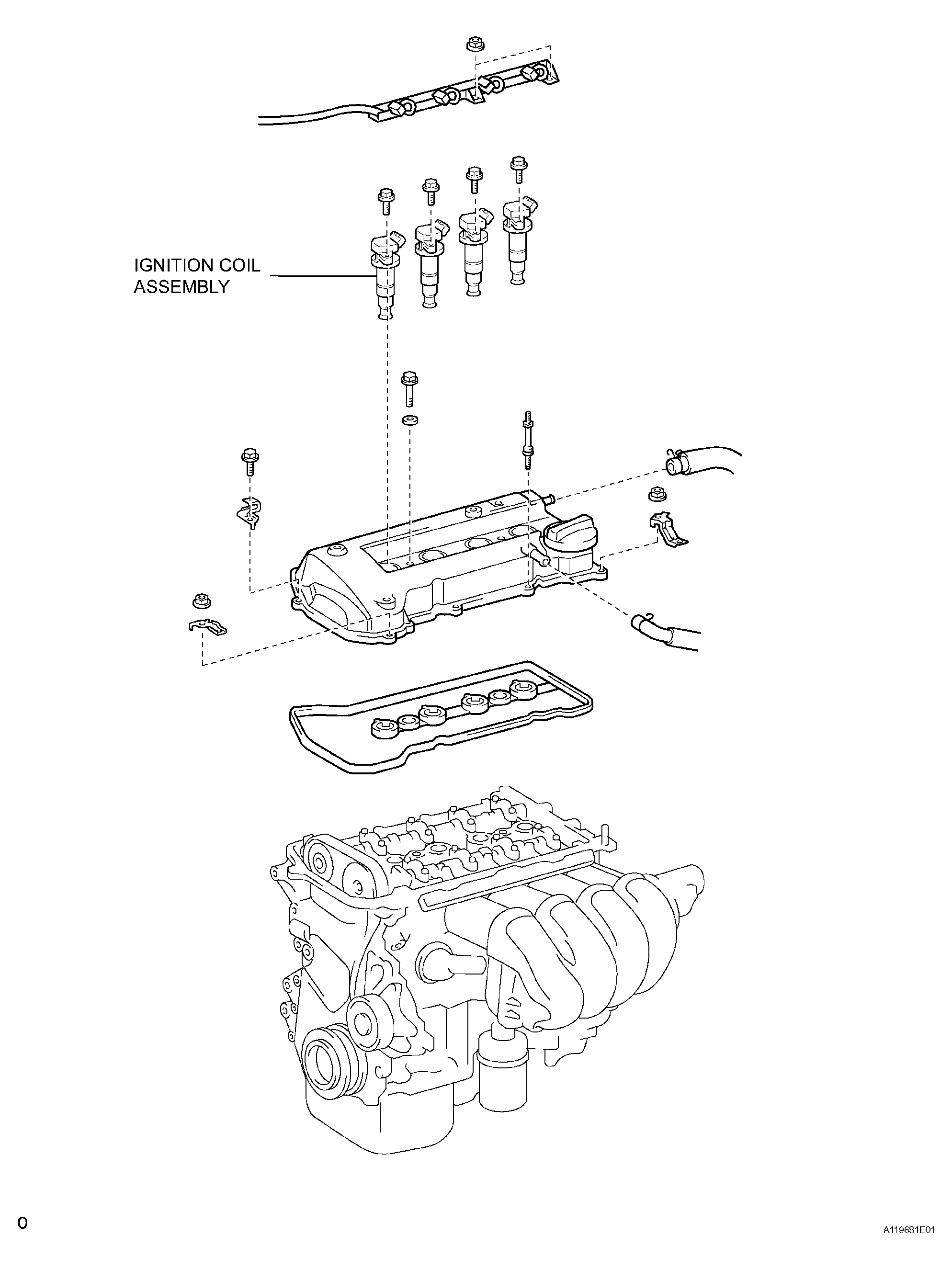

Fig 1: Identifying Ignition System Parts Location (1ZZ-FE) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

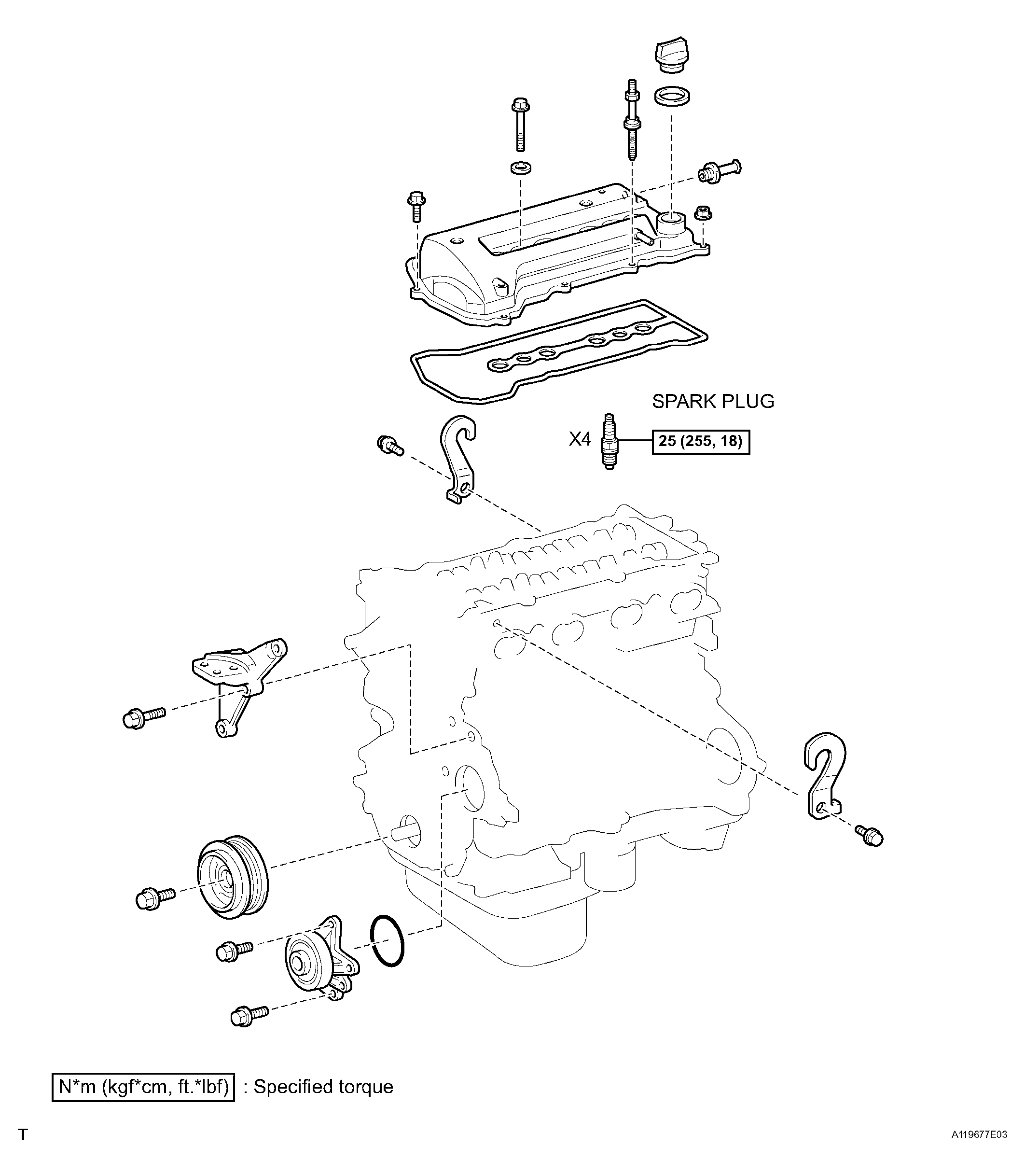

Fig 2: Identifying Ignition System Parts Location (1ZZ-FE) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
