DTC P0500 Vehicle Speed Sensor "A": Description

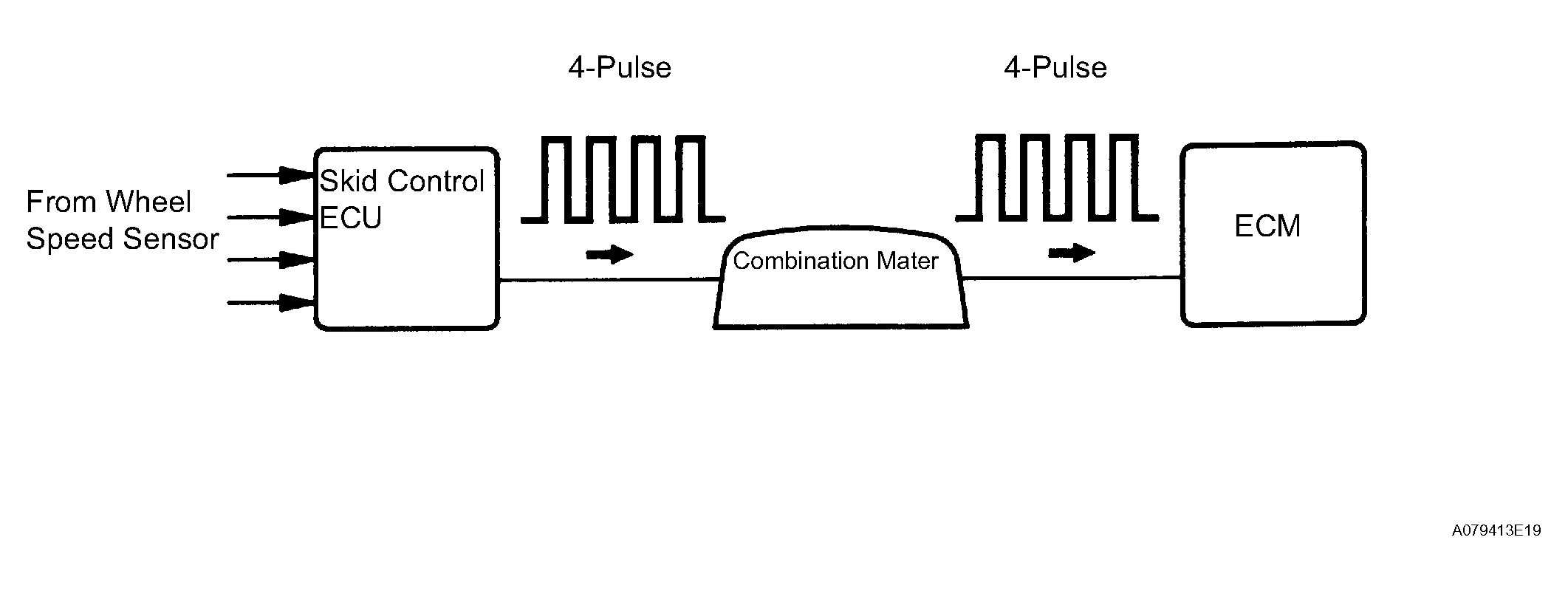

Vehicles, which are equipped with ABS (Anti-Lock Brake System), detect the vehicle speed using the skid control ECU and wheel speed sensor. The wheel speed sensor monitors the wheel rotation speed and sends a signal to the skid control ECU. The skid control ECU converts the wheel speed signal into a 4-pulse signal and transmits it to the ECM via the combination meter. The ECM determines the vehicle speed based on the frequency of the pulse signal.
DTC TROUBLE DETECTION REFERENCE
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| P0500 | While vehicle being driven, no vehicle speed sensor signal to ECM (2 trip detection logic) |
|
