Fuel Injector: Components

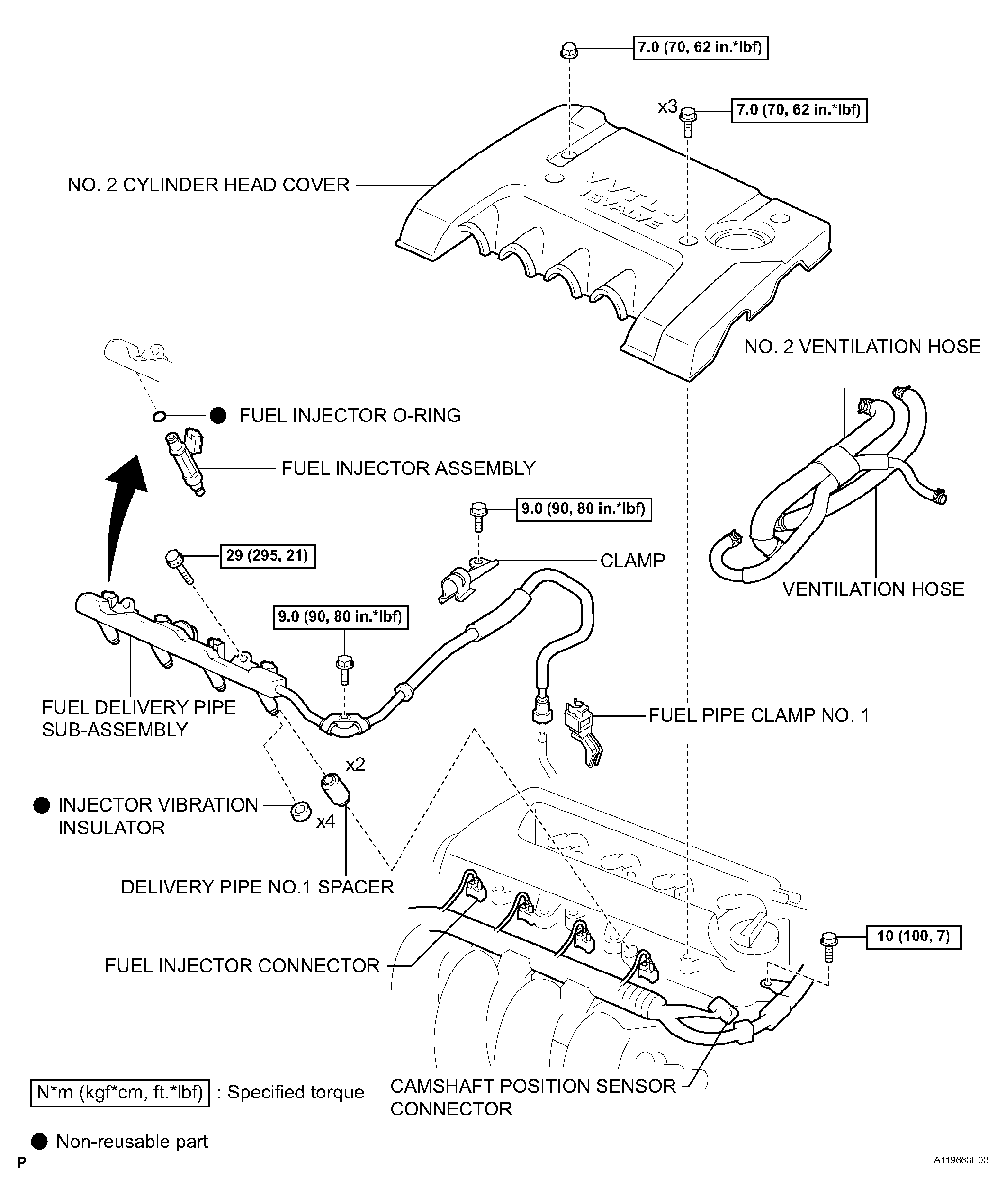

Fig 1: Exploded View Of Fuel Injector Components With Torque Specifications
G04462014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
