Floor Shift Assembly: Components

WARNING: This page is about a different variant/trim than selected.

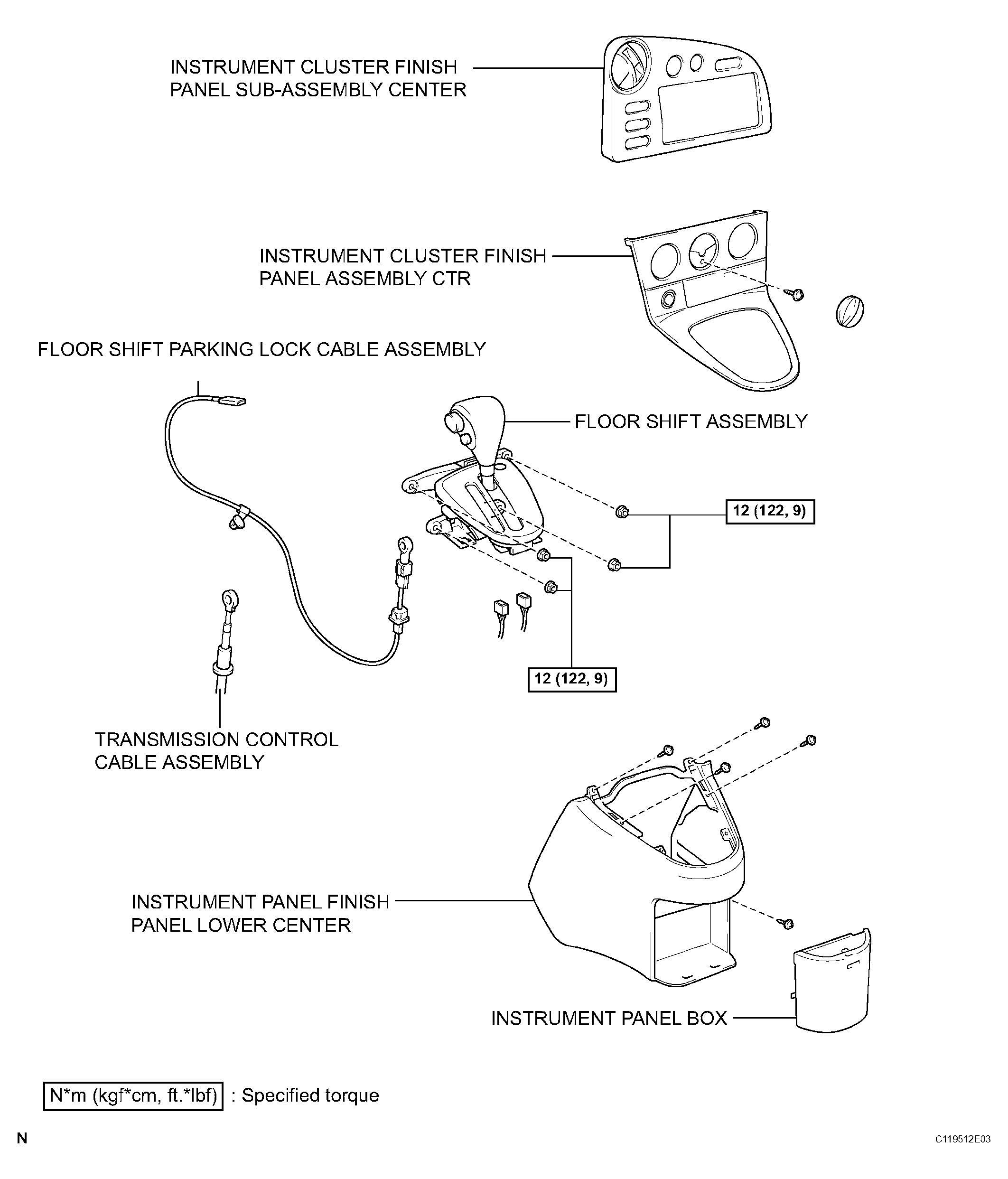

Fig 1: Floor Shift Assembly Replacement Components With Torque Specifications (1 Of 2)
G04463372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

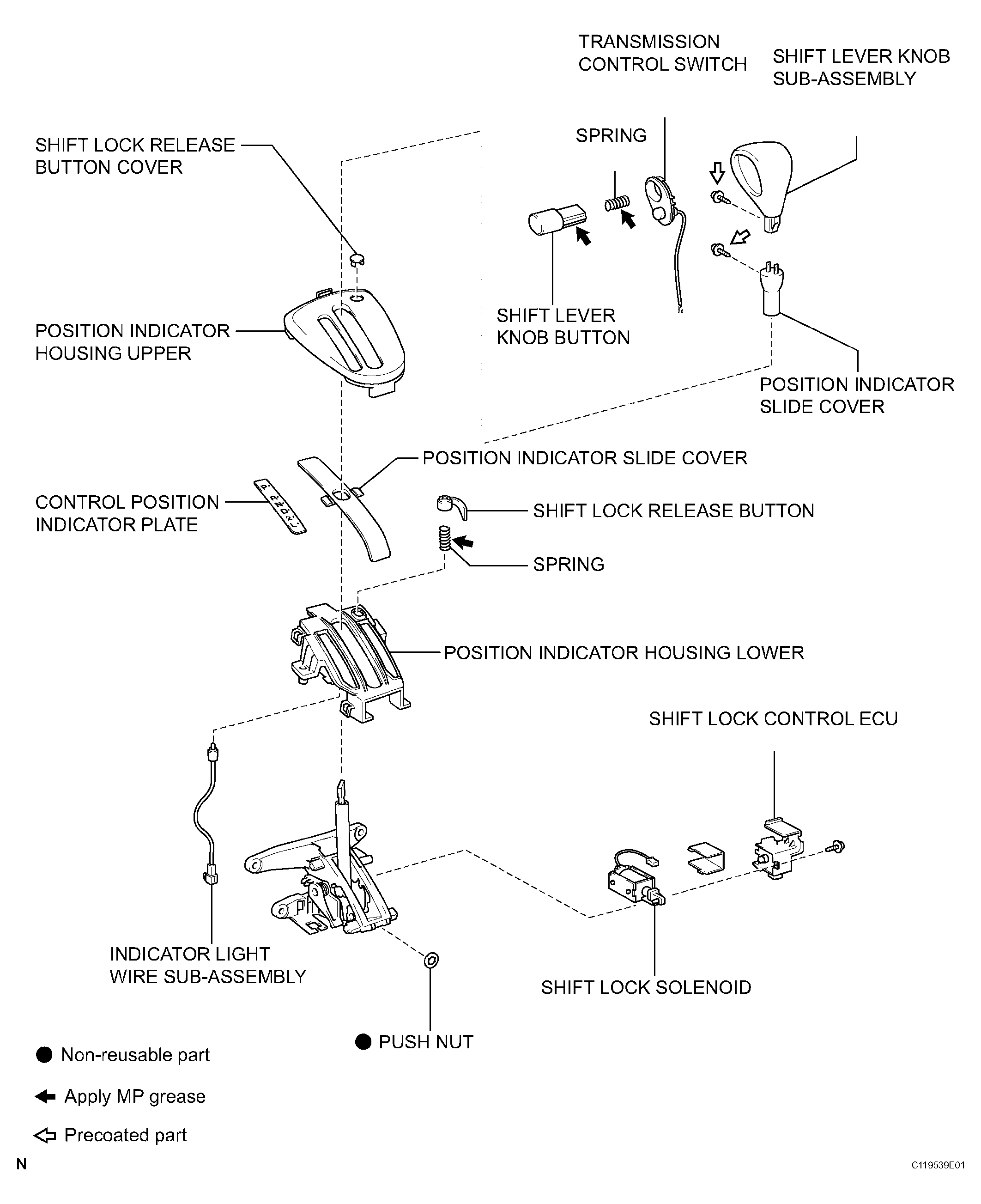

Fig 2: Floor Shift Assembly Replacement Components With Torque Specifications (2 Of 2)
G04463373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
