Transmission Revolution Sensor: Components

WARNING: This page is about a different variant/trim than selected.

Fig 1: Transmission Revolution Sensor Replacement Components With Torque Specifications (1 Of 2)

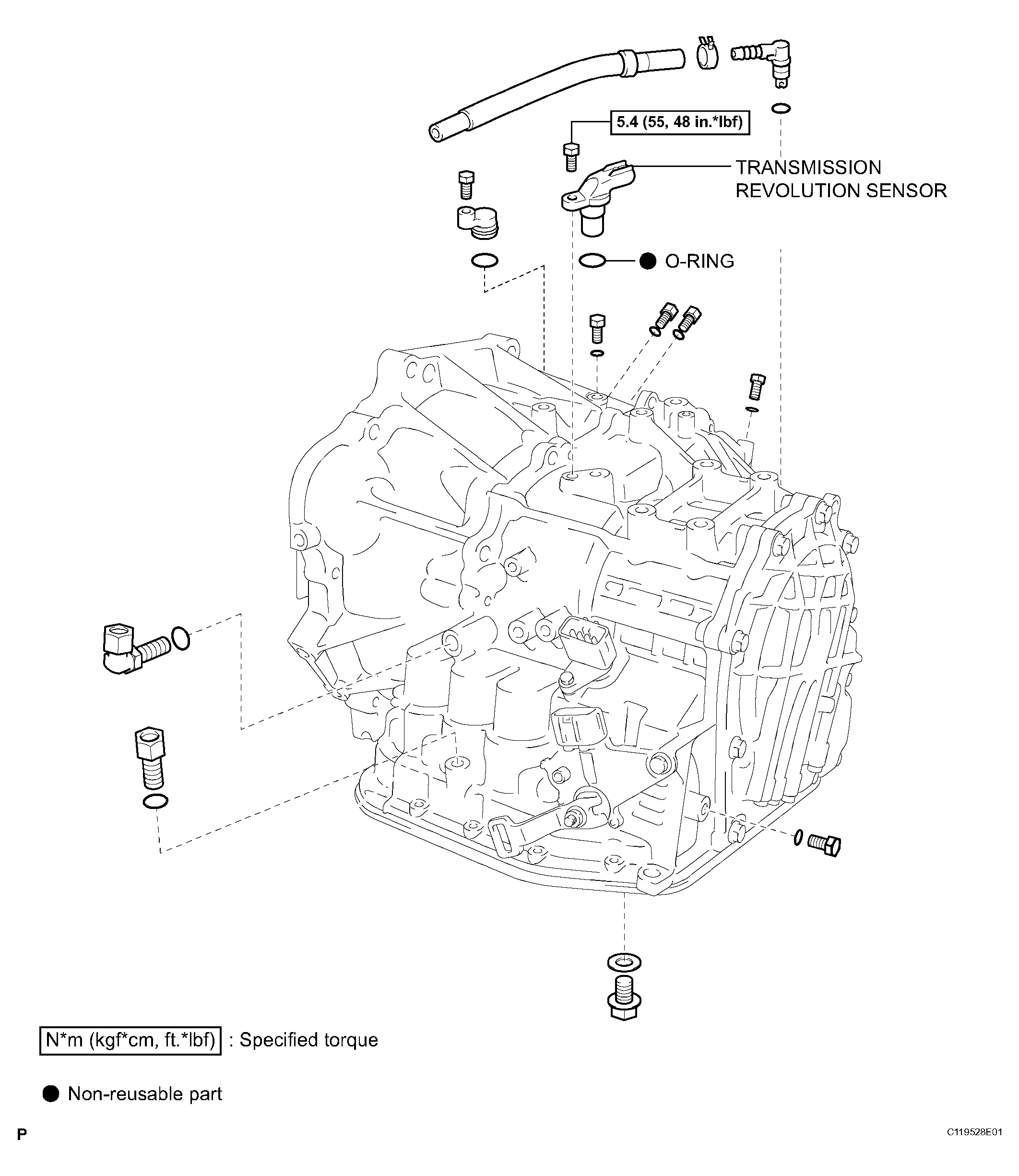

Fig 2: Transmission Revolution Sensor Replacement Components With Torque Specifications (2 Of 2)
