Inspection Procedure

1. Check if the cellular phone can make calls in a certain location.

   OK :

   It can make calls.

NG : END (CELLULAR PHONES CAN ONLY FUNCTION IN CELLULAR SERVICE AREAS)

OK : GO TO NEXT STEP

1. Enter the "Information" screen by pressing the "INFO" switch.
2. Select "Telephone".

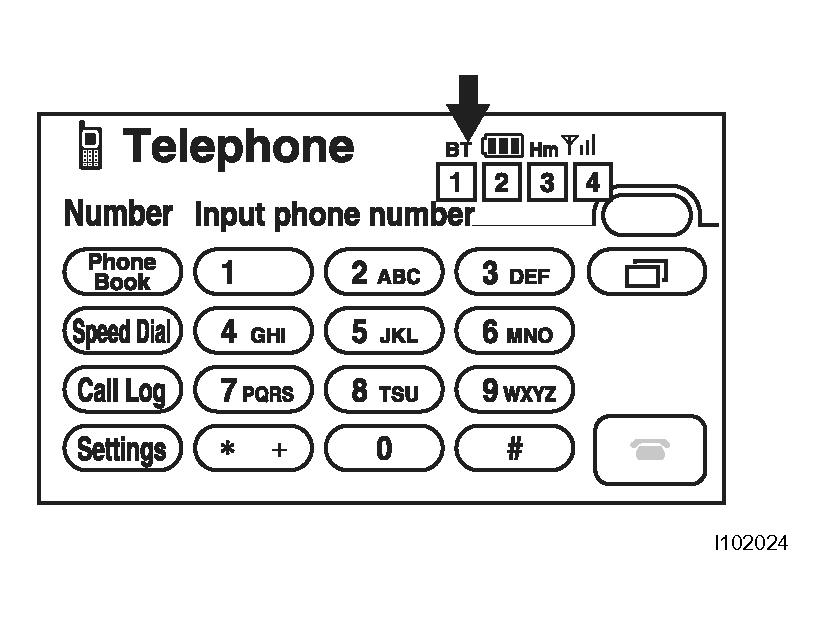

   Fig 1: Identifying Selecting Telephone

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the "BT" mark.

   Result

   RESULT CHART



   Condition	Proceed to
   Yellow color	A
   Blue color	B
   No connection mark is displayed	C

B : REPLACE MULTI-DISPLAY

C : SELECT REGISTERED CELLULAR PHONE OR REGISTER BLUETOOTH COMPATIBLE PHONE

Fig 2: Checking BT Mark

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

A : Go to next step

BRING CELLULAR PHONE TO LOCATION WHERE BT MARK TURNS BLUE
