Inspection Procedure

1. Check if the component shown by the sub-code is displayed in the check result of the other components.
   1. Check if "01-DC" is output for the other components.
   2. If "01-DC" is output for any other components, check if the same physical address is displayed.

      Result

      RESULT CHART



      Result	Proceed to
      "01-DC" is output and same physical address is displayed	A
      "01-DC" is not output or same physical address is not displayed	B

      HINT:

      For the list of the components shown by sub-codes, refer to the table in the step below.

B : Go to step   4

A : Go to next step

1. Enter the diagnostic mode.
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
3. Identify the component which has stored this code.

   Component table:

   G/W GATEWAY COMPONENT DISPLAY CODE CHART



   Display	Component
   G/W Gateway	ECU
   DSP-AMP	Stereo component amplifier
   EMV	Multi-display
   AUDIO H/U	Radio receiver

   HINT:

   "G/W" is the component which has stored this code in the example shown in the illustration.

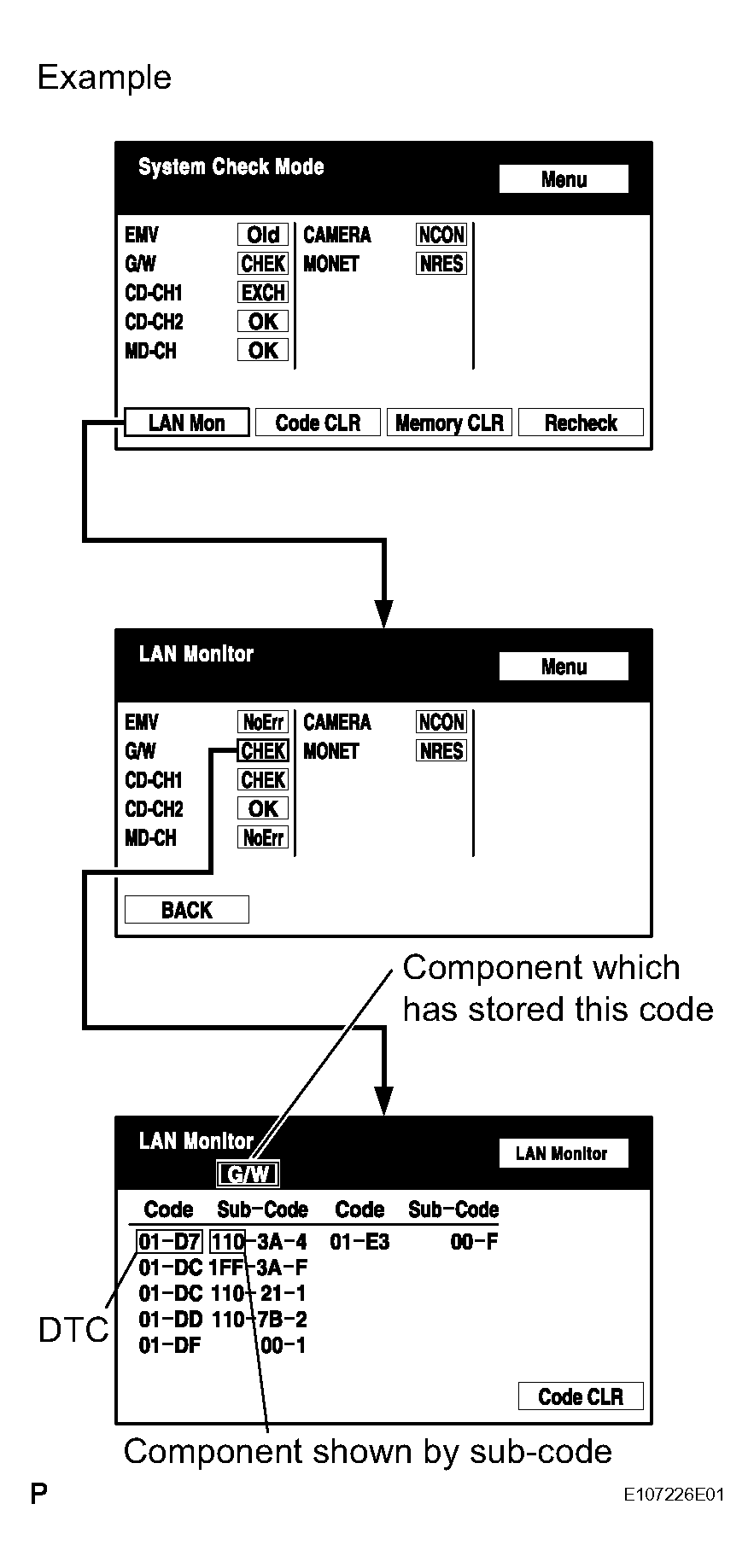

   Fig 1: Identifying Component Which Has Stored Code

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NEXT

1. Select the component which has stored this code.

   Component table:

   G/W GATEWAY COMPONENT DISPLAY CODE CHART



   Component	Proceed to
   Gateway ECU (G/W)	GATEWAY ECU COMMUNICATION ERROR
   Stereo component amplifier (DSP-AMP)	STEREO COMPONENT AMPLIFIER COMMUNICATION ERROR
   Multi-display (EMV)	MULTI-DISPLAY COMMUNICATION ERROR
   Radio receiver (AUDIO H/U)	RADIO RECEIVER COMMUNICATION ERROR

NEXT : END

1. Clear the DTCs (see DTC CHECK / CLEAR  ).

   HINT:

   If "01-DC" is output for only one component, this may not indicate a malfunction.

NEXT

1. Recheck for DTCs and check if the same trouble code occurs again.

   OK :

   Malfunction disappears.

NG : Go to step   3

OK : END
