Inspection Procedure

NOTE: Be sure to read DESCRIPTION before performing the following procedures.
  1. CHECK MULTI-DISPLAY POWER SOURCE CIRCUIT
    1. Refer to the MULTI-DISPLAY POWER SOURCE CIRCUIT  .

      If the power source circuit is operating normally, proceed to the next step.

    NEXT

  2. INSPECT RADIO RECEIVER
    1. for 9 Speaker System:

      Disconnect the R5 and R6 receiver connectors.

    2. for 6 Speaker System:

      Disconnect the R5 receiver connector.

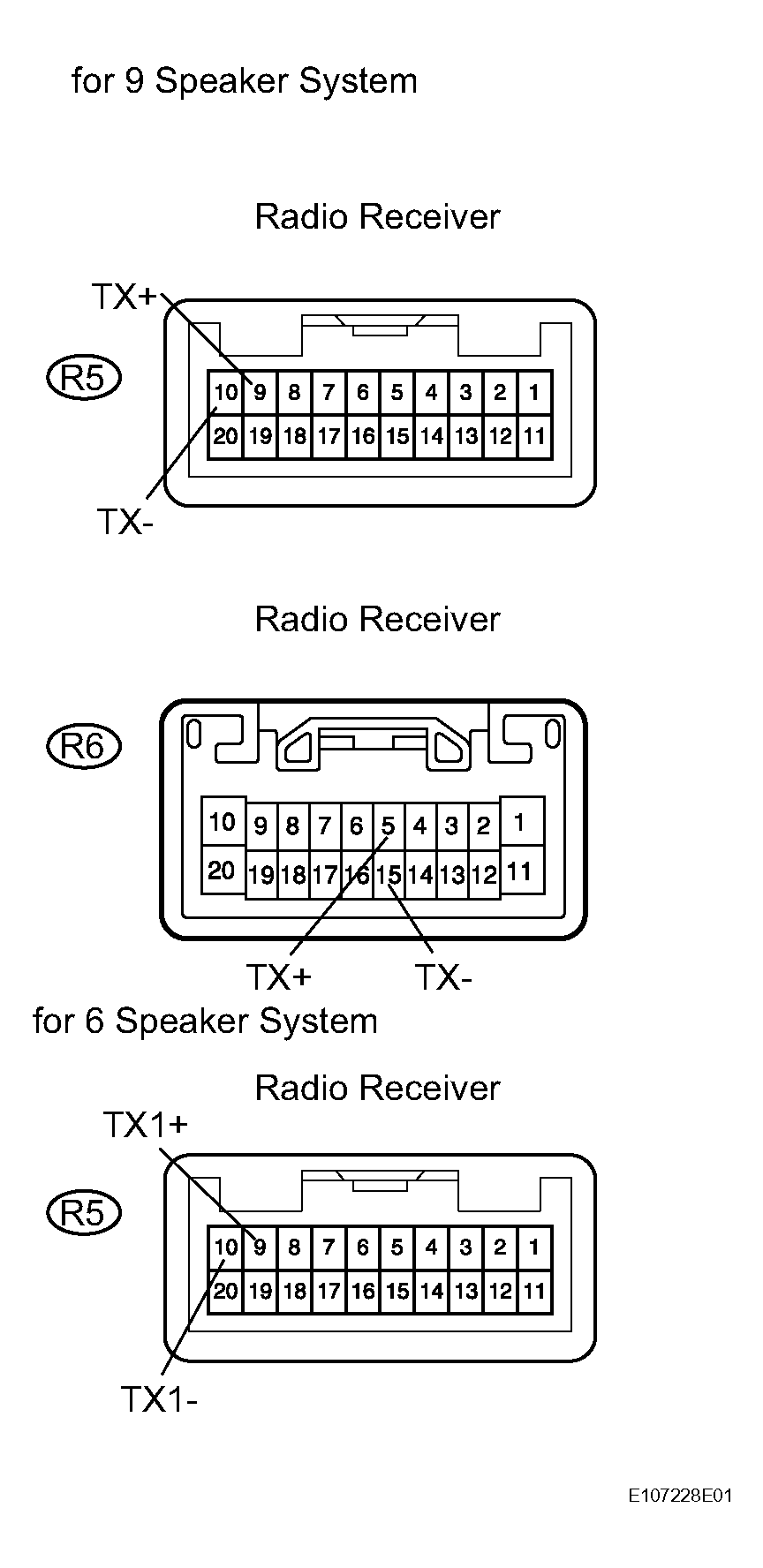

    3. Measure the resistance of the receiver.

      Standard resistance

      RESISTANCE AND RECEIVER CONDITION SPECIFICATION

      Tester Connection Specified Condition
      R5--9 (TX1+) - R5--10 (TX1-)*1 60 to 80 Ω
      R5--9 (TX+) - R5--10 (TX-)*2 60 to 80 Ω
      R6-5 (TX+) - R6--15 (TX-)*2 60 to 80 Ω

      HINT:

      • *1: for 6 speaker system
      • *2: for 9 speaker system

    NG : REPLACE RADIO RECEIVER

    Fig 1: Inspecting Radio Receiver
    G04476313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  3. IDENTIFY COMPONENT WHICH HAS STORED THIS CODE
    1. Enter the diagnostic mode.
    2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
    3. Identify the component which has stored this code.

      Component table:

      G/W GATEWAY COMPONENT DISPLAY CODE CHART

      Display Component
      G/W Gateway ECU
      DSP-AMP Stereo component amplifier
      AUDIO H/U Radio Receiver

      HINT:

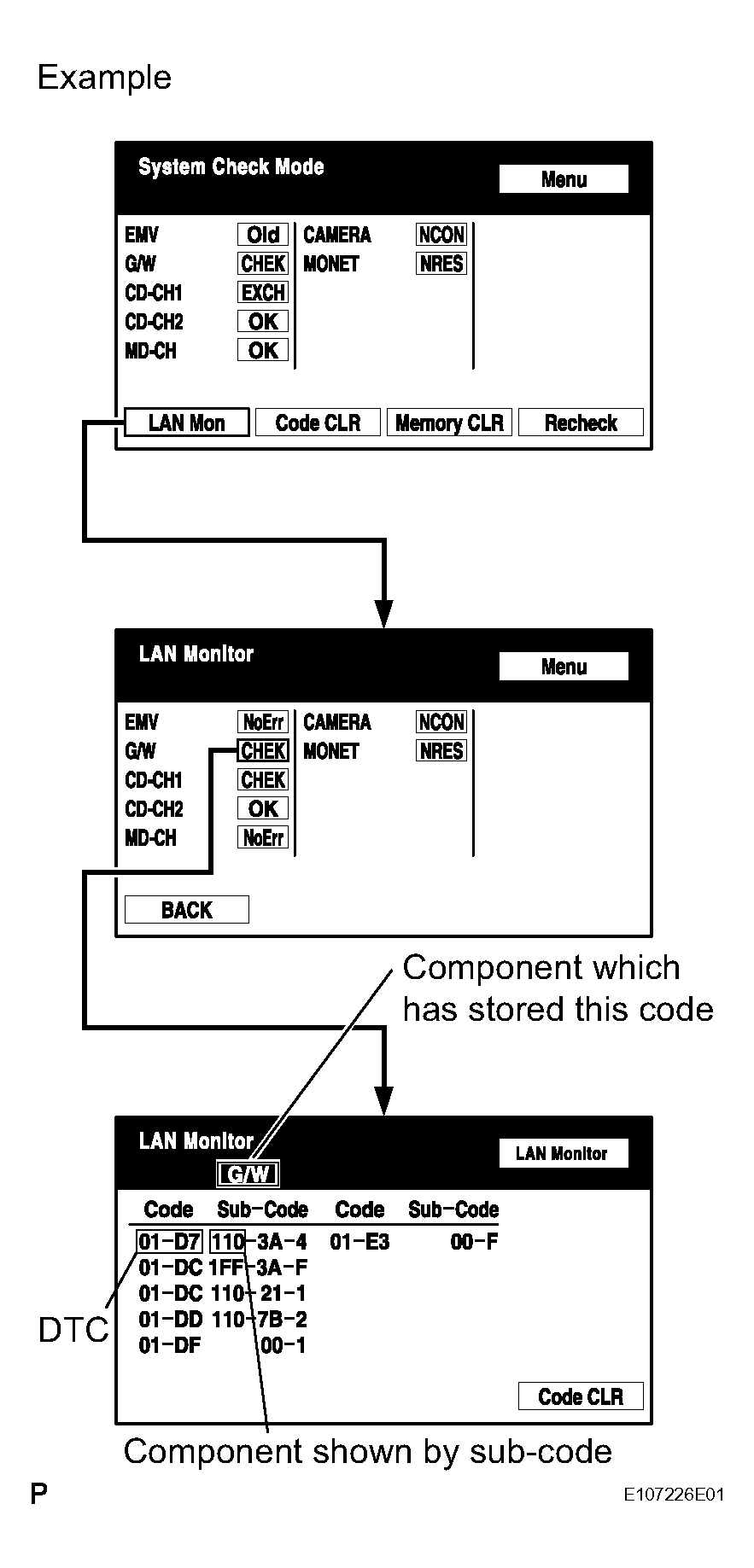

      "G/W" is the component which has stored this code in the example shown in the illustration.

      Fig 2: Identifying Component Which Has Stored Code
      G04476314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NEXT

  4. CHECK WIRE HARNESS (MULTI-DISPLAY - COMPONENT WHICH HAS STORED THIS CODE)

    HINT:

    For details of the connectors, refer to the "TERMINALS OF ECU " .

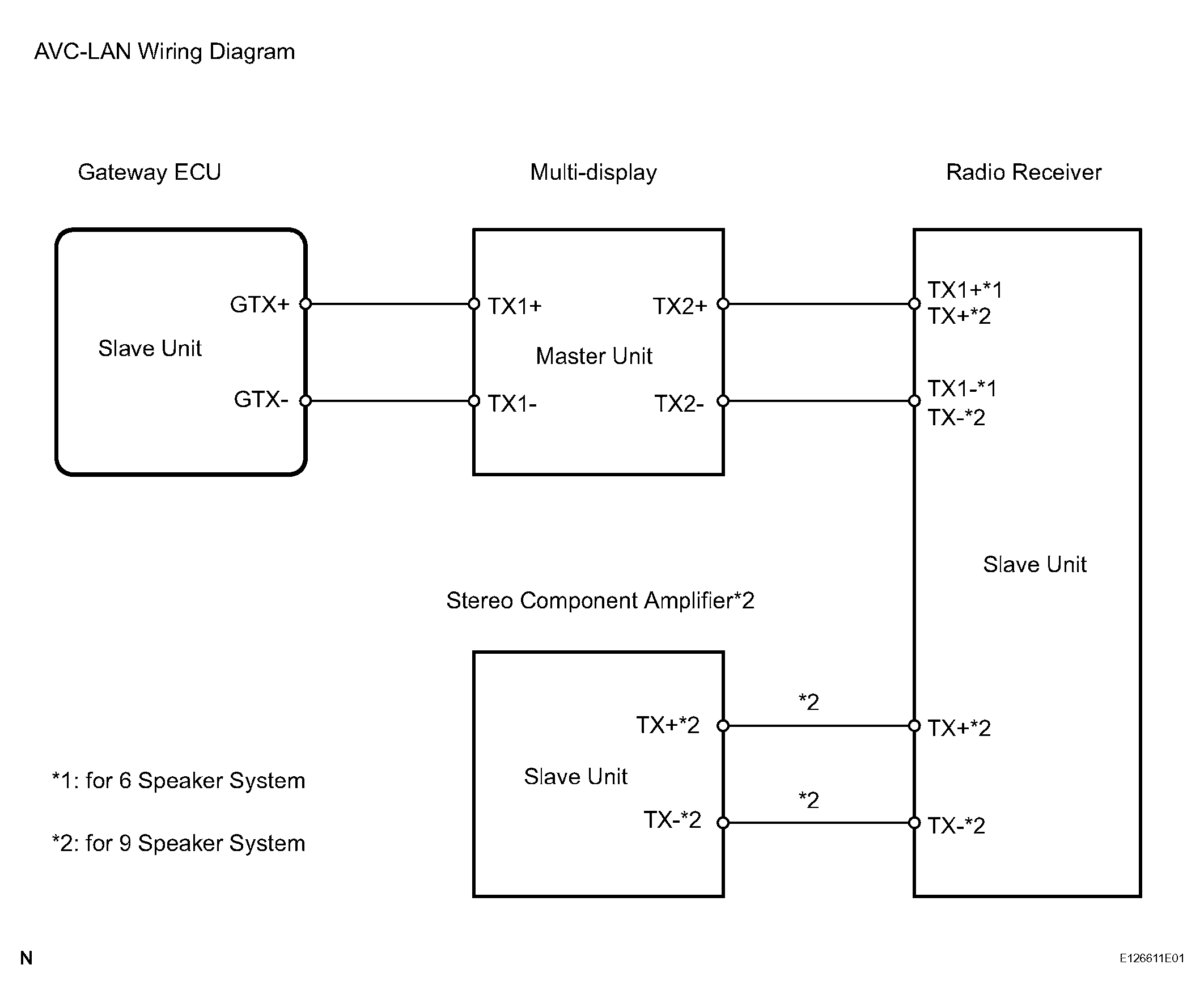

    1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the multi-display and the component which has stored this code.
      1. Disconnect all connectors between the multi-display and the component which has stored this code.
      2. Check for an open or short in the AVC-LAN circuit between the multi-display and the component which has stored this code.

        OK :

        There is no open or short circuit.

        Fig 3: Audio And Visual System AVC-LAN - Circuit Diagram
        G04476315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : GO TO NEXT STEP

  5. REPLACE MULTI-DISPLAY
    1. Replace the multi-display with a normal one and check if the same problem occurs again.

      OK :

      Same problem does not occur.

    NG : REPLACE COMPONENT WHICH HAS STORED THIS CODE

    OK : END
