Inspection Procedure

NOTE: The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precautionary notice for the supplemental restraint system.
  1. CHECK ILLUMINATION
    1. Check if the illumination for the radio receiver, steering pad switch, multi-display and other illuminations (hazard switch, etc.) come on when the light control switch is turned to the HEAD or TAIL position.

      Result

      RESULT CHART

      Result Proceed to
      Illumination comes on for all components except steering pad switch. A
      Illumination comes on for all components except radio receiver. B
      Illumination comes on for all components except multi-display. C
      No illumination comes on (radio receiver, hazard switch, multi-display, etc.). D

    B : Go to step   6

    C : Go to step   7

    D : GO TO METER / GAUGE SYSTEM

    A : Go to next step

  2. CHECK WIRE HARNESS (BATTERY - SPIRAL CABLE)
    1. Disconnect the C12 cable connector.
    2. Measure the voltage of the wire harness side connector.

      Standard voltage

      VOLTAGE AND RECEIVER CONDITION SPECIFICATION

      Tester Connection Condition Specified Condition
      C12-12 (ILL+) - Body ground Light control switch TAIL or HEAD 10 to 14 V

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    Fig 1: Checking Wire Harness (Battery - Spiral Cable)
    G04476355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  3. INSPECT STEERING PAD SWITCH

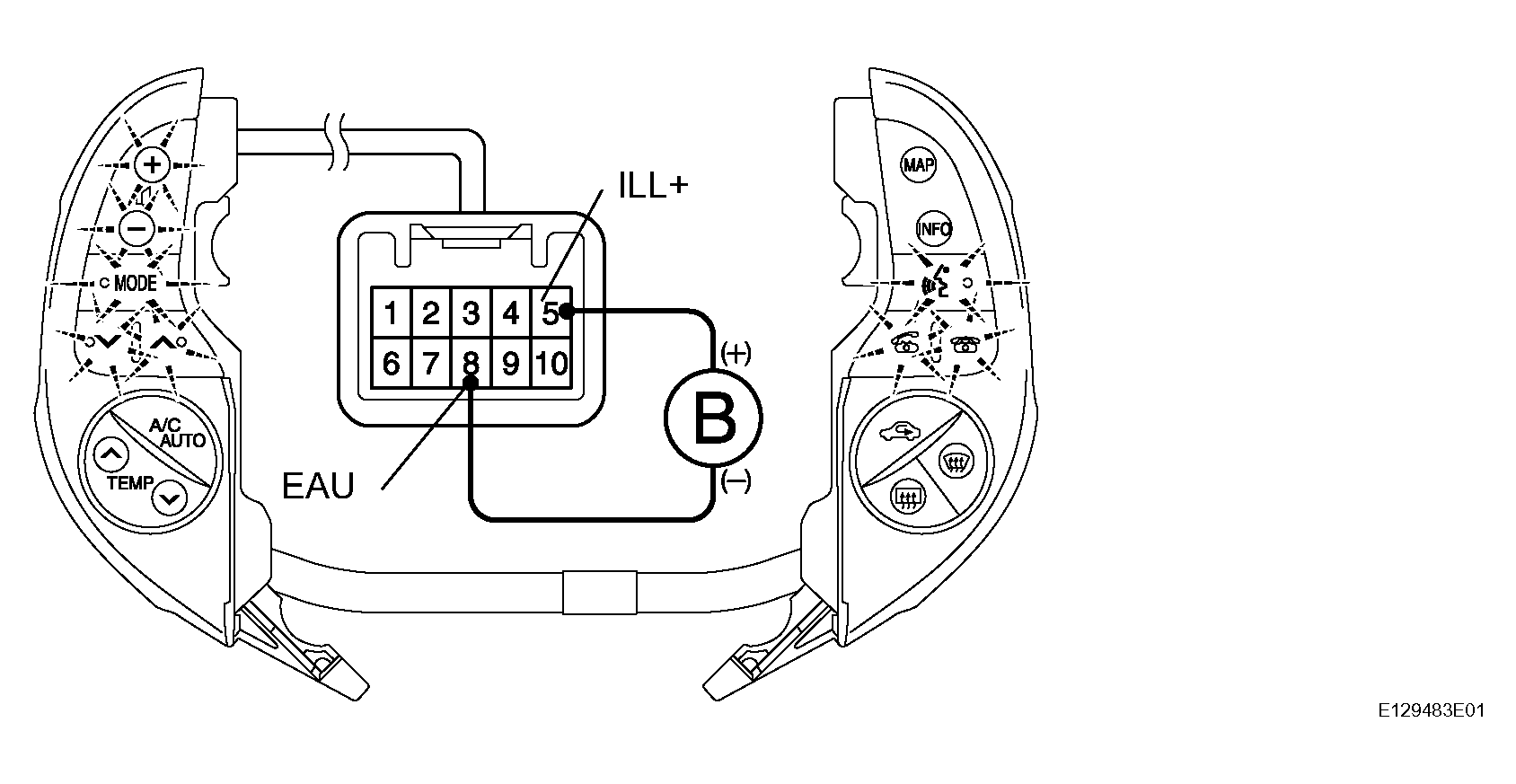

    Fig 2: Checking Illumination For Steering Pad Switch Comes On
    G04476356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the steering pad switch connector.
    2. Connect the battery's positive (+) lead to terminal 5 (ILL+) and the negative (-) lead to terminal 8 (EAU) of the steering pad switch connector.
    3. Check if the illumination for the steering pad switch comes on.

      OK :

      Illumination for the steering pad switch comes on.

    NG : REPLACE STEERING PAD SWITCH

    OK : GO TO NEXT STEP

  4. INSPECT SPIRAL CABLE
    1. Disconnect the steering pad switch connector.
    2. Disconnect the spiral cable connector.
    3. Measure the resistance of the cable.

      Standard resistance

      RESISTANCE AND RECEIVER CONDITION SPECIFICATION

      Tester Connection Spiral Cable Position Specified Condition
      C12-4 (EAU) - A-8 (EAU) Center Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      C12-12 (ILL+) - A-5 (ILL+) Center Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      NOTE: The spiral cable is an important part of the SRS. Incorrect removal or installation of the spiral cable may prevent the airbag from deploying. Be sure to read the SRS section's precaution.

    NG : REPLACE SPIRAL CABLE

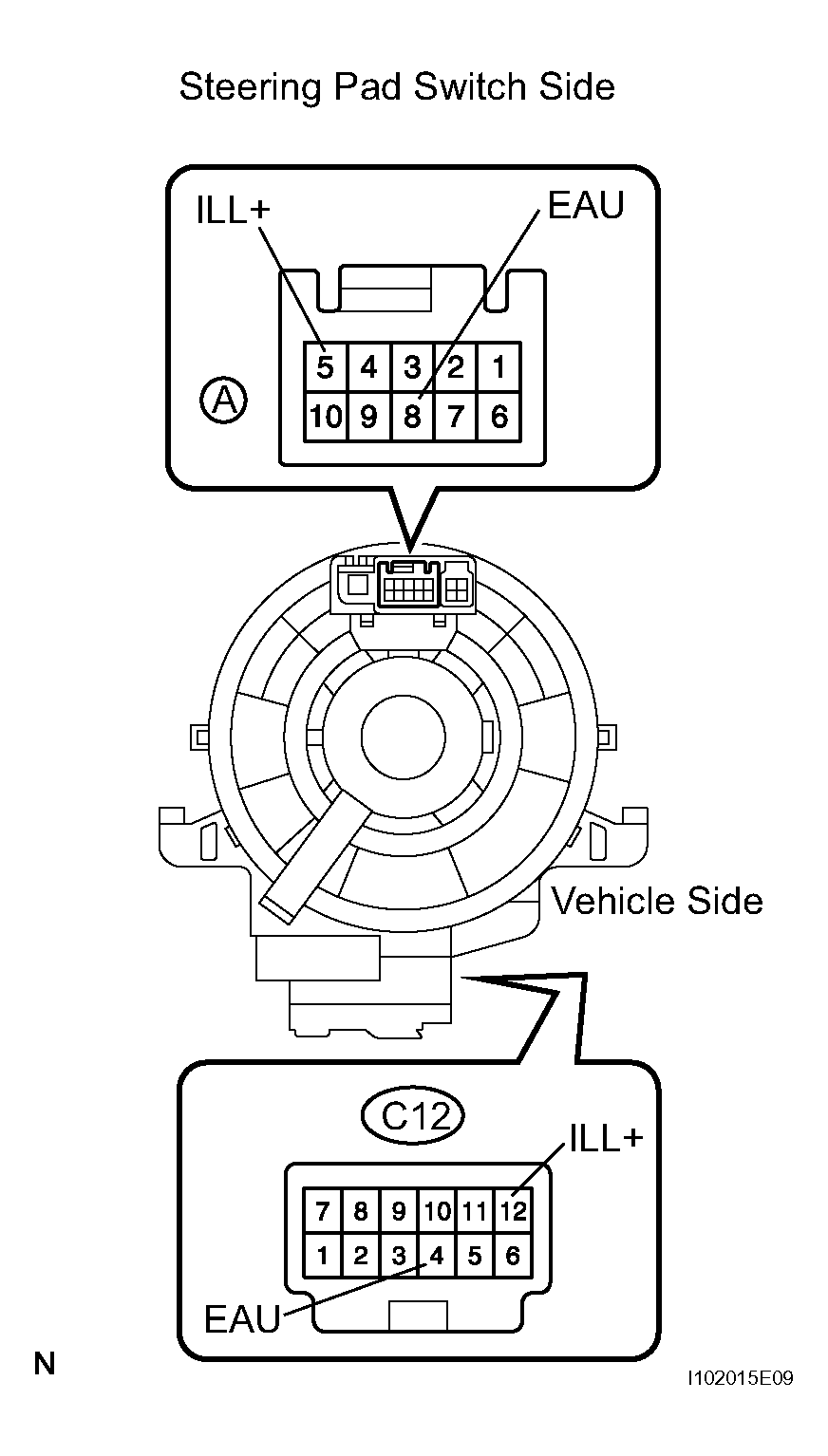

    Fig 3: Measuring Resistance Of Cable
    G04476357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  5. CHECK WIRE HARNESS (SPIRAL CABLE - RADIO RECEIVER)
    1. Disconnect the R5 receiver connector.
    2. Disconnect the C12 cable connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      RESISTANCE AND RECEIVER CONDITION SPECIFICATION

      Tester Connection Specified Condition
      R5--6 (SWG) - C12-4 (EAU) Below 1 Ω
      R5--6 (SWG) - Body ground 10 kΩ or higher

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

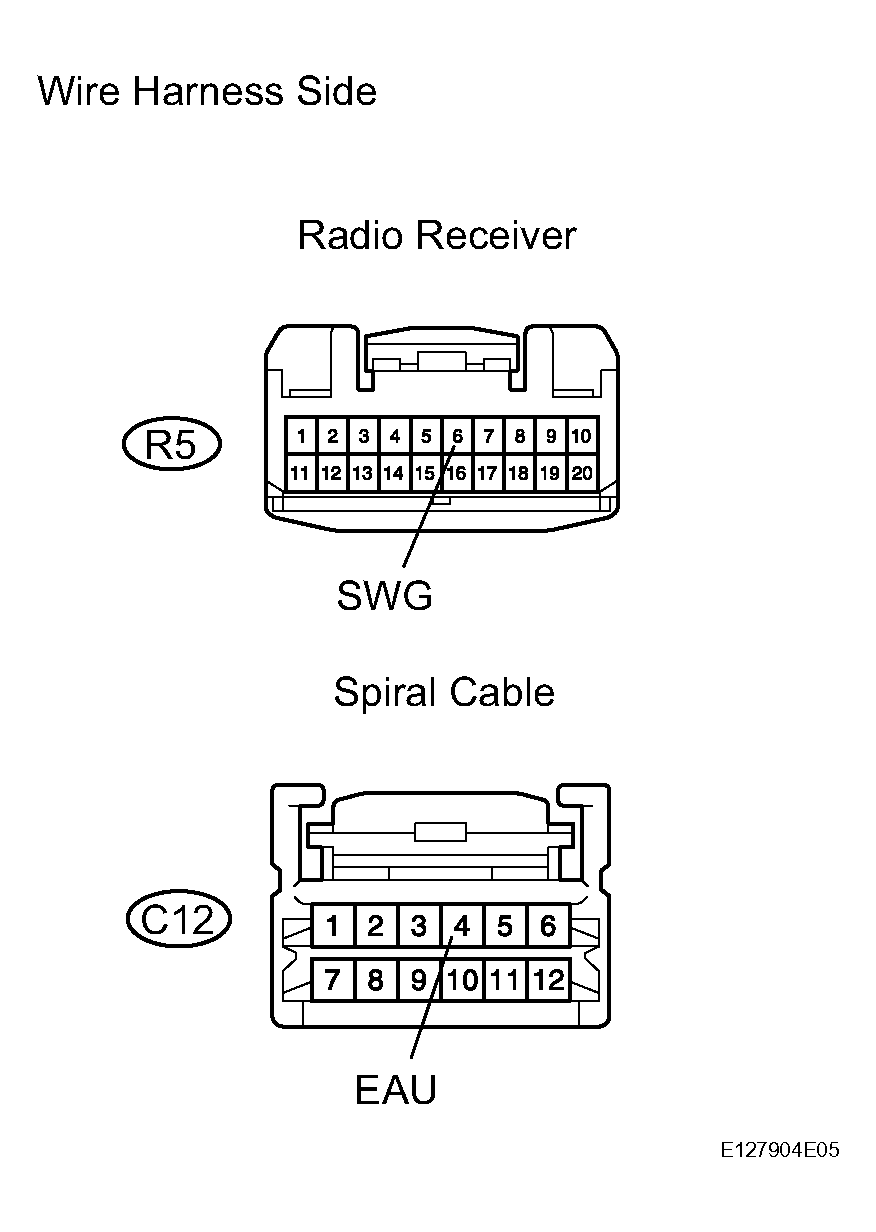

    Fig 4: Checking Wire Harness (Spiral Cable - Radio Receiver)
    G04476358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

    REPLACE RADIO RECEIVER

  6. CHECK WIRE HARNESS (BATTERY - RADIO RECEIVER)
    1. Disconnect the R3* 1 or R6* 2 receiver connector.
    2. Measure the voltage of the wire harness side connector.

      Standard voltage

      VOLTAGE AND RECEIVER CONDITION SPECIFICATION

      Tester Connection Condition Specified Condition
      R3--10 (ILL+) - Body ground* 1 Light control switch TAIL or HEAD 10 to 14 V
      R6-2 (ILL+) - B0dy ground* 2 Light control switch TAIL or HEAD 10 to 14 V
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      RESISTANCE AND RECEIVER CONDITION SPECIFICATION

      Tester Connection Specified Condition
      R4--5 (ILL-) - Body ground* 1 Below 1 Ω
      R6--12 (ILL-) - Body ground* 2 Below 1 Ω

      HINT:

      • * 1: for 6 speaker system
      • * 2: for 9 speaker system

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

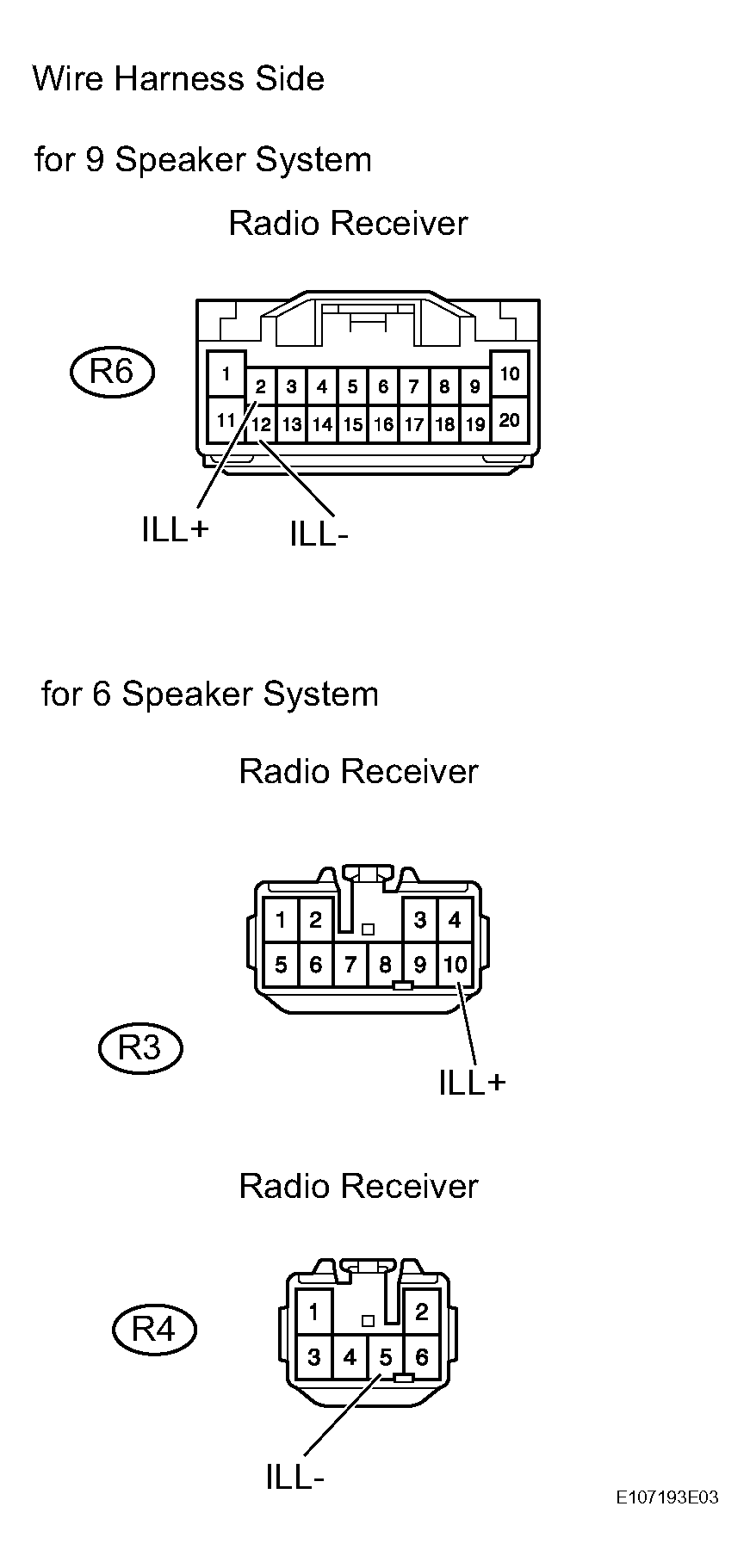

    Fig 5: Checking Wire Harness (Battery - Radio Receiver)
    G04476359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

    REPLACE RADIO RECEIVER

  7. CHECK WIRE HARNESS (BATTERY - MULTI-DISPLAY)
    1. Disconnect the M13 display connector.
    2. Measure the voltage of the wire harness side connector.

      Standard voltage

      VOLTAGE AND RECEIVER CONDITION SPECIFICATION

      Tester Connection Condition Specified Condition
      M13-1 (ILL+) - Body ground* 1 Light control switch TAIL or HEAD 10 to 14 V
      M13-12 (ILL+) - Body ground* 2 Light control switch TAIL or HEAD 10 to 14 V
    3. Measure the resistance of the wire harness side connector.

      Standard resistance

      RESISTANCE AND RECEIVER CONDITION SPECIFICATION

      Tester Connection Specified Condition
      M13-2 (ILL-) - Body ground* 1 Below 1 Ω
      M13-11 (ILL-) - Body ground* 2 Below 1 Ω

      HINT:

      • * 1: for 3 connector type
      • * 2: for 4 connector type

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

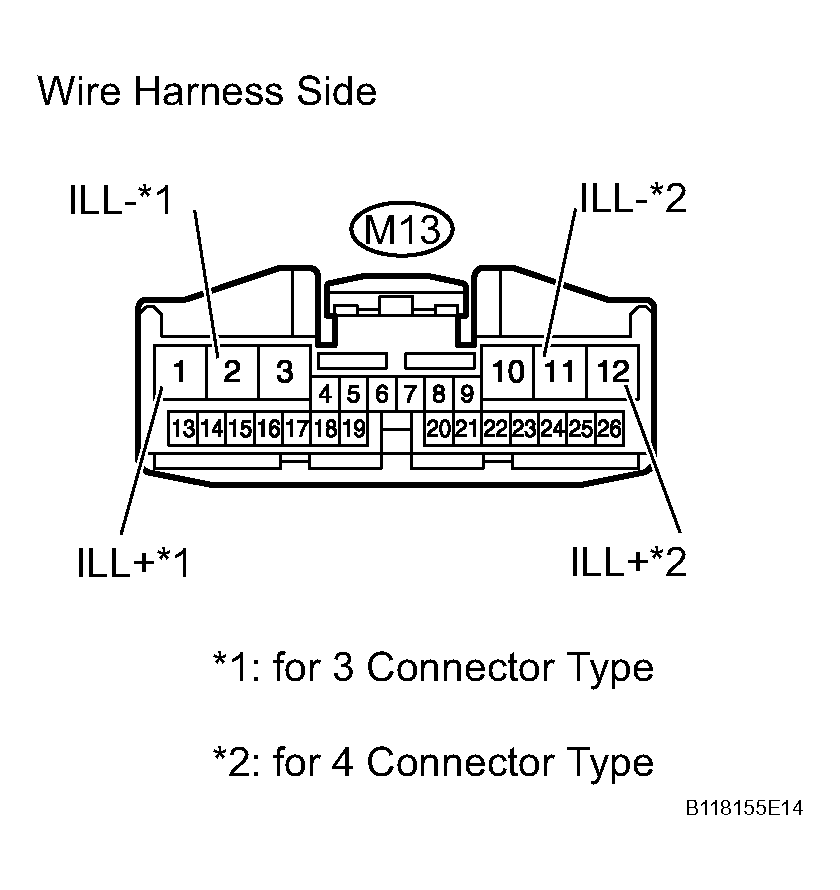

    Fig 6: Checking Wire Harness (Battery - Multi-Display)
    G04476360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

    REPLACE MULTI-DISPLAY
