2006
›
Prius
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio/Visual
›
Audio And Visual System
›
System Diagram
System Diagram

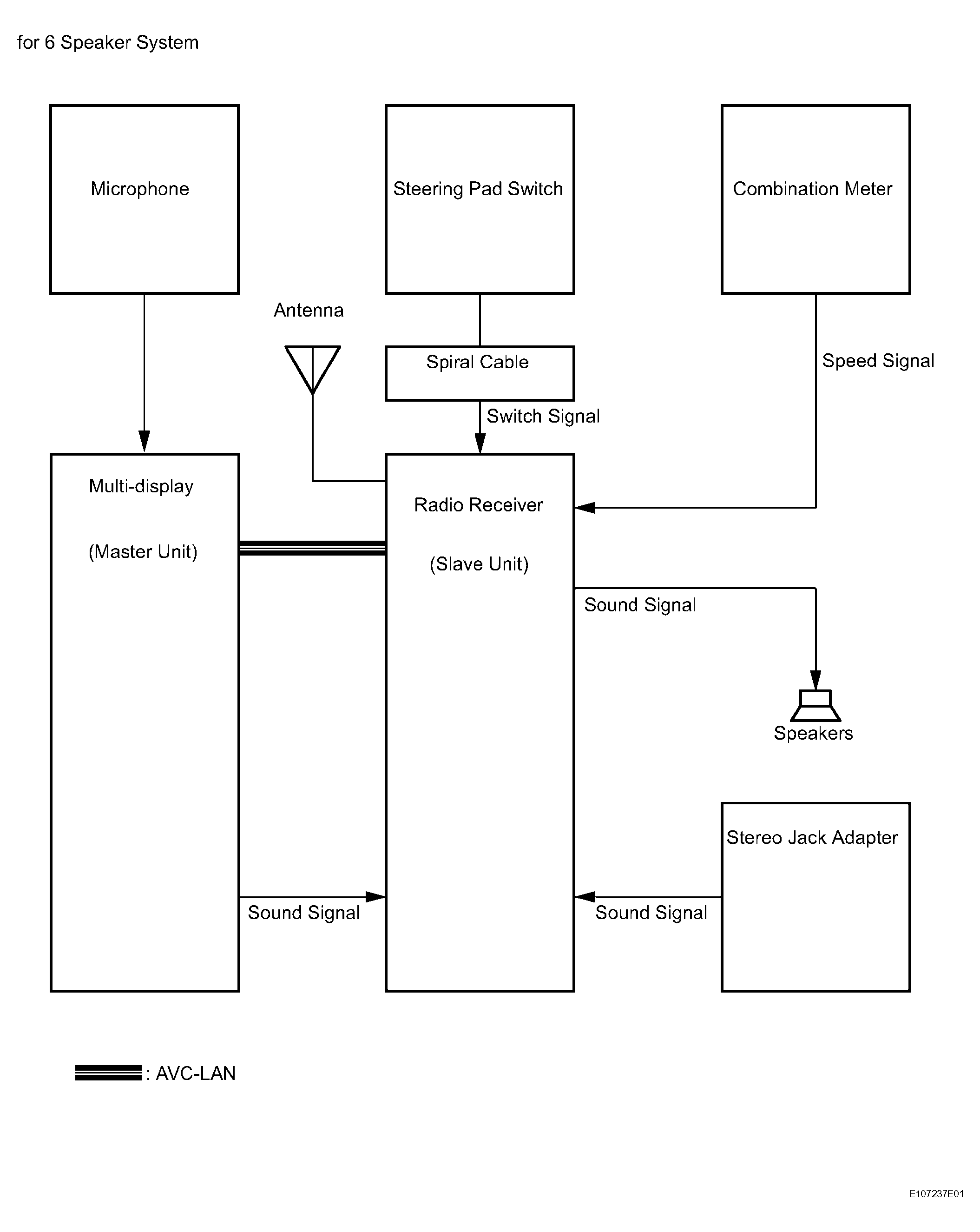

Fig 1: Audio And Visual System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

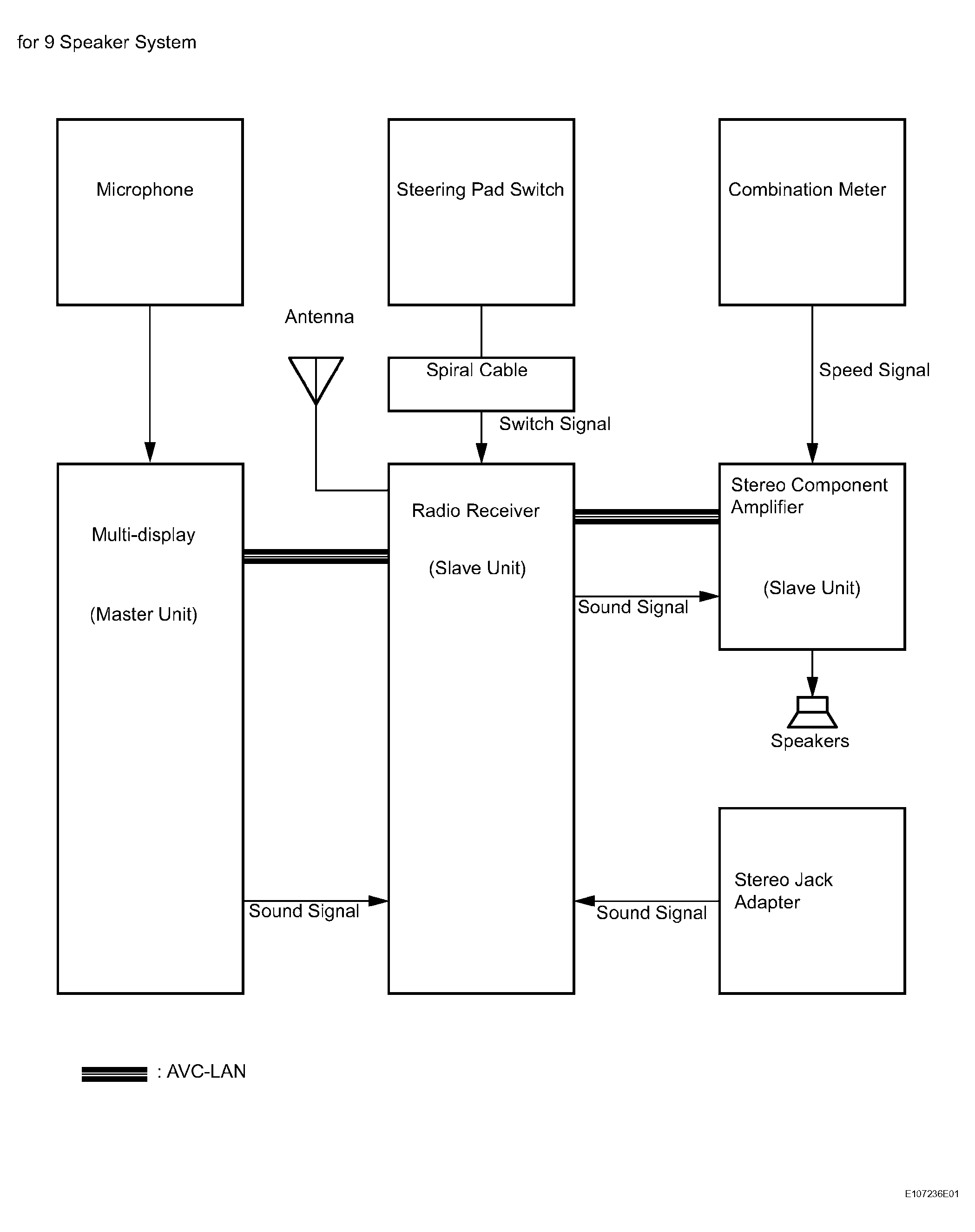

Fig 2: Audio And Visual System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
