Radio Receiver: Installation

INSTALL NO. 2 RADIO BRACKET
1. Install the No. 2 radio bracket to the radio receiver with the 6 screws.

  Fig 1: Installing No. 2 Radio Bracket To Radio Receiver With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 RADIO BRACKET
1. Install the No. 1 radio bracket to the radio receiver with the 6 screws.

  Fig 2: Installing No. 1 Radio Bracket To Radio Receiver With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIO RECEIVER WITH BRACKET
1. Connect all the connectors and install the radio receiver.
2. Install the 4 screws.
INSTALL MULTI-DISPLAY ASSEMBLY (See INSTALLATION )
INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER (See INSTALLATION )
INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY (see INSTALLATION )
INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

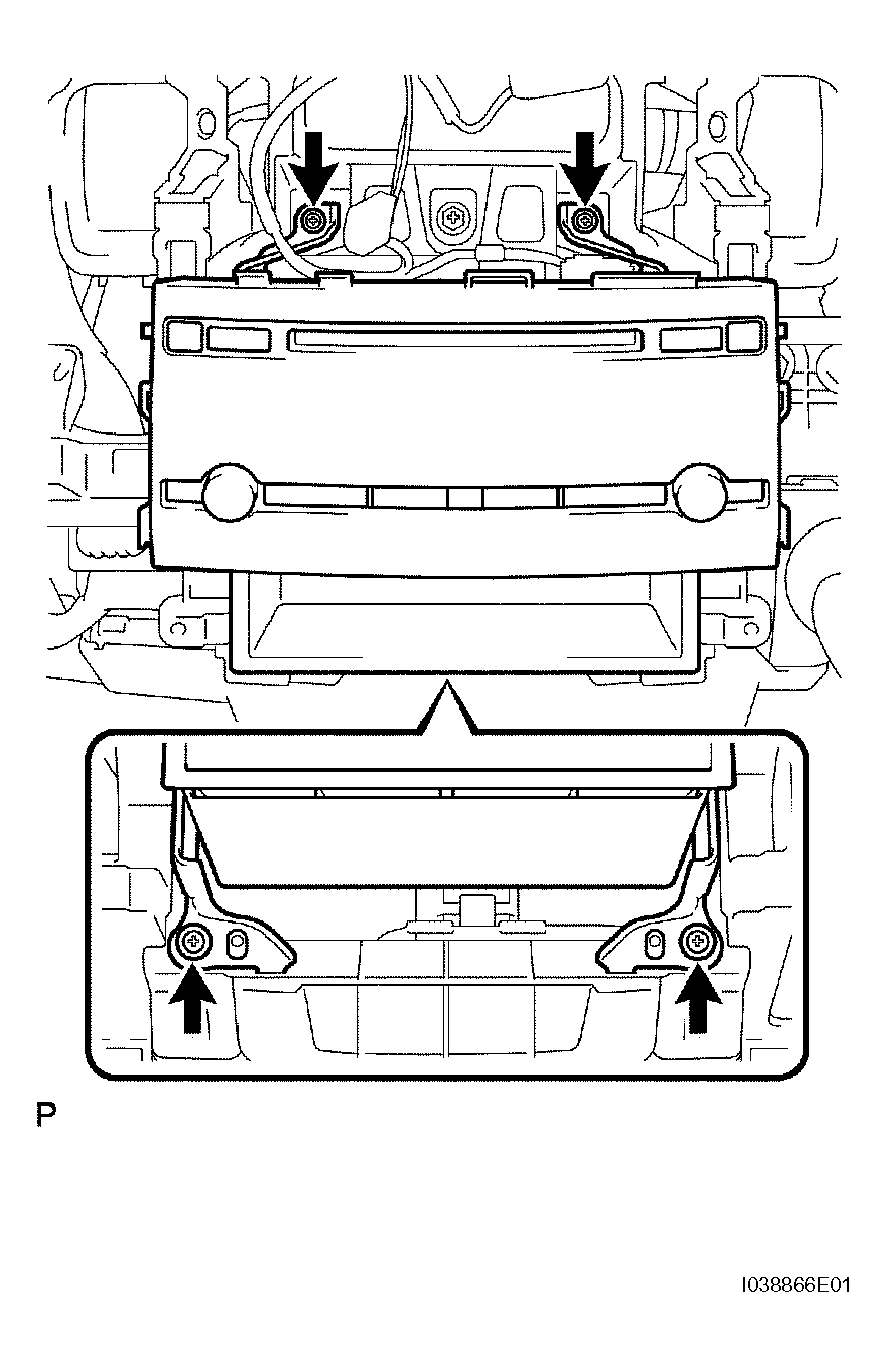

  Fig 3: Installing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
