Inspection Procedure

1. Check if the cellular phone can make calls in a certain location.

   OK : It can make calls.

NG : END (CELLULAR PHONES CAN ONLY FUNCTION IN CELLULAR SERVICE AREAS)

OK : GO TO NEXT STEP

1. Enter the "Information" screen by pressing the "INFO" switch.
2. Select "Telephone".

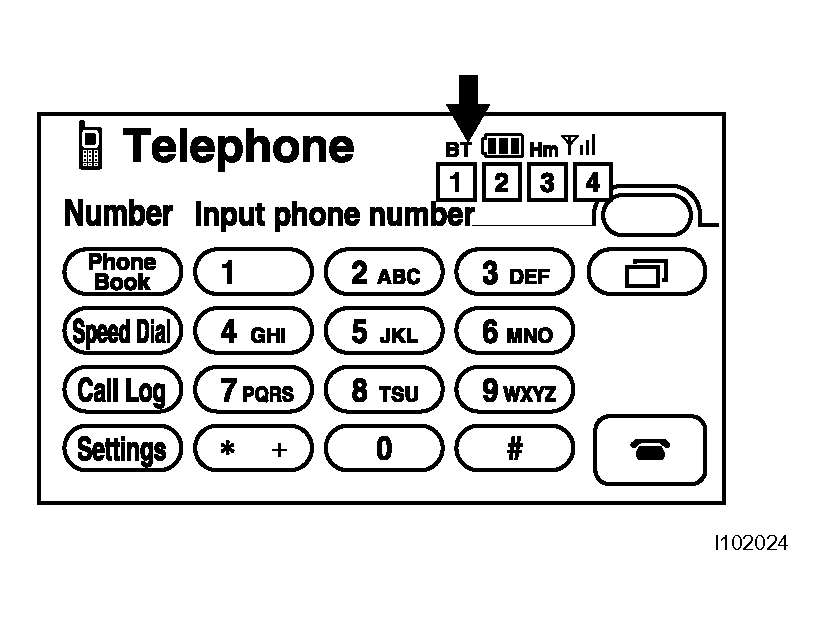

   Fig 1: Checking Reception (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the "BT" mark.

   Result

   CONDITION CHART



   Condition	Proceed to
   Yellow color	A
   Blue color	B
   No connection mark is displayed	C

B : REPLACE MULTI-DISPLAY

C : SELECT A REGISTERED CELLULAR PHONE OR REGISTER A BLUETOOTH COMPATIBLE PHONE

Fig 2: Checking Reception (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

A : BRING CELLULAR PHONE TO LOCATION WHERE THE BT MARK TURNS BLUE
