Inspection Procedure

CHECK NAVIGATION SETTINGS
1. Enter the "Menu" screen by pressing the "MENU" switch.
2. Select "Set up".

  Fig 1: Check Navigation Settings (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that "Voice Recognition Guidance" is not OFF.
  OK : Voice Recognition Guidance is not OFF.
NG : TURN VOICE RECOGNITION GUIDANCE "ON"

Fig 2: Check Navigation Settings (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP
CHECK MAP DISC
1. Check that the map disc is not deformed or cracked.
  OK : No deformations or cracks on map disc.
NG : REPLACE MAP DISC

Fig 3: Ensure Map Disc Is Not Cracked Or Deformed
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP
CHECK MAP DISC
1. Check for dirt on the map disc surface.
  OK : No dirt is on the map disc surface.

  NOTE: Do not use a conventional record cleaner or anti-static preservative.

  HINT:

  If the disc is dirty, clean the disc by wiping the disc surface radially with a soft cloth.
NG : CLEAN MAP DISC

Fig 4: Cleaning Disc
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP
CHECK MICROPHONE (NAVIGATION CHECK MODE)
1. Enter the "MICROPHONE & VOICE RECOGNITION CHECK" mode (see NAVIGATION CHECK MODE ).
2. When a voice is input into the microphone, check that the microphone input level meter changes according to the input voice.
3. Push the recording switch and perform voice recording.
  HINT:

  The recording limit is 5 seconds.
4. Check that the recording indicator remains on while recording and that the recorded voice is played normally without noise or distortion.
  OK : All check results are normal.
OK : REPLACE NAVIGATION ECU

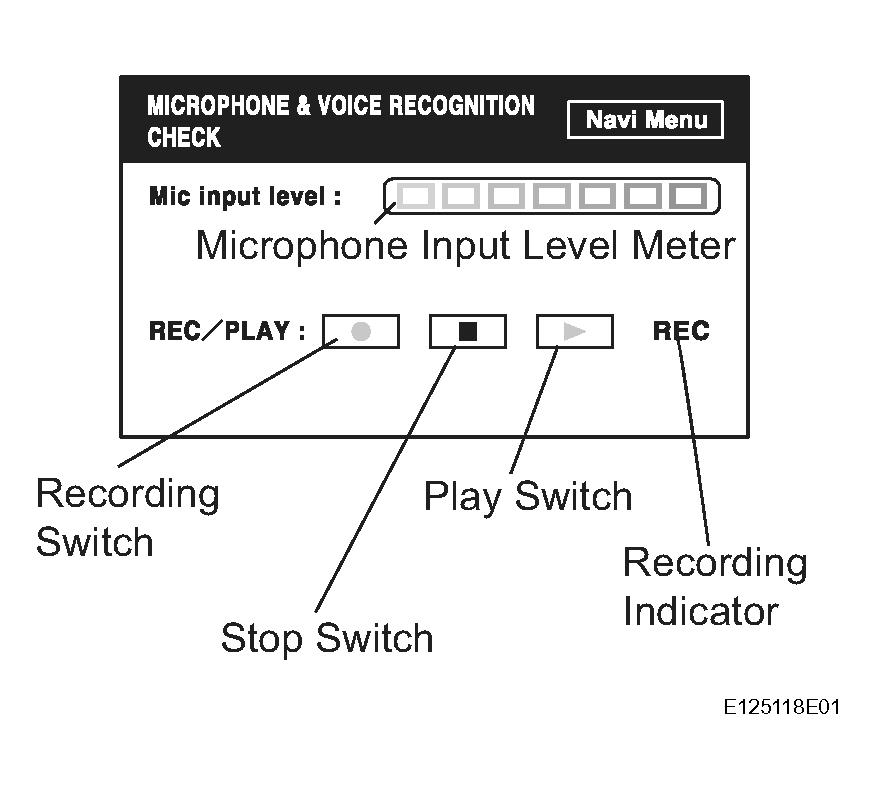

Fig 5: Check Microphone (Navigation Check Mode) Screen Display
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : GO TO NEXT STEP
CHECK MICROPHONE (DISPLAY CHECK MODE)
1. Enter the "MICROPHONE & VOICE RECOGNITION CHECK" mode (see DISPLAY CHECK MODE ).
2. When a voice is input into the microphone, check that the microphone input level meter changes according to the input voice.
3. Push the recording switch and perform voice recording.
  HINT:

  The recording limit is 5 seconds.
4. Check that the recording indicator remains on while recording and that the recorded voice is played normally without noise or distortion.
  OK : All check results are normal.
NG : PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE

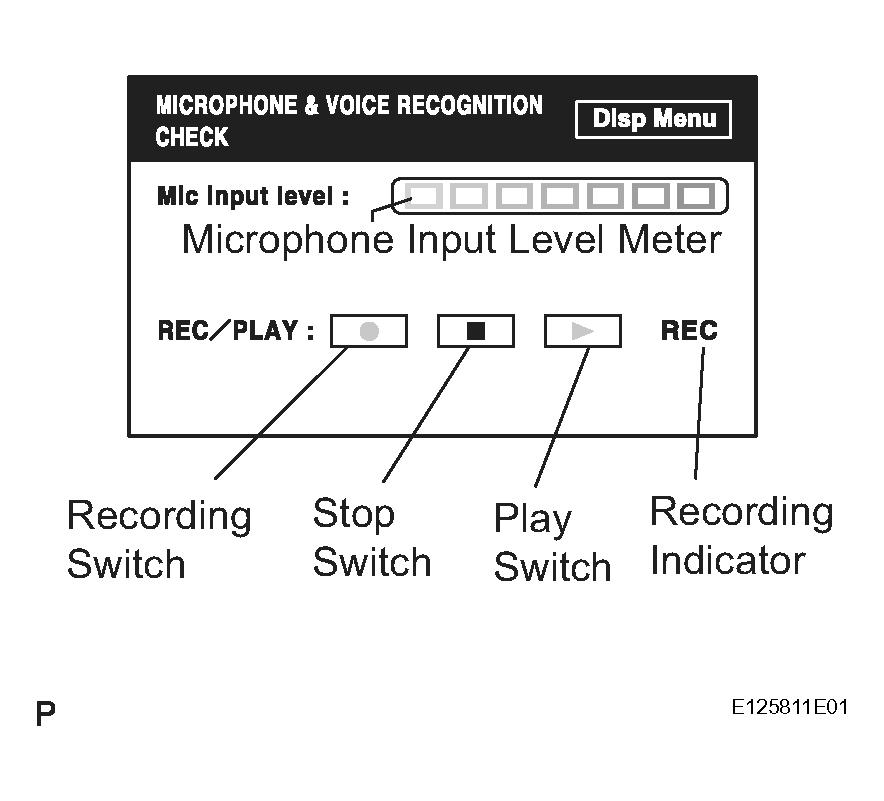

Fig 6: Check Microphone (Display Check Mode) Screen Display
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : END
