Brake Actuator: Components

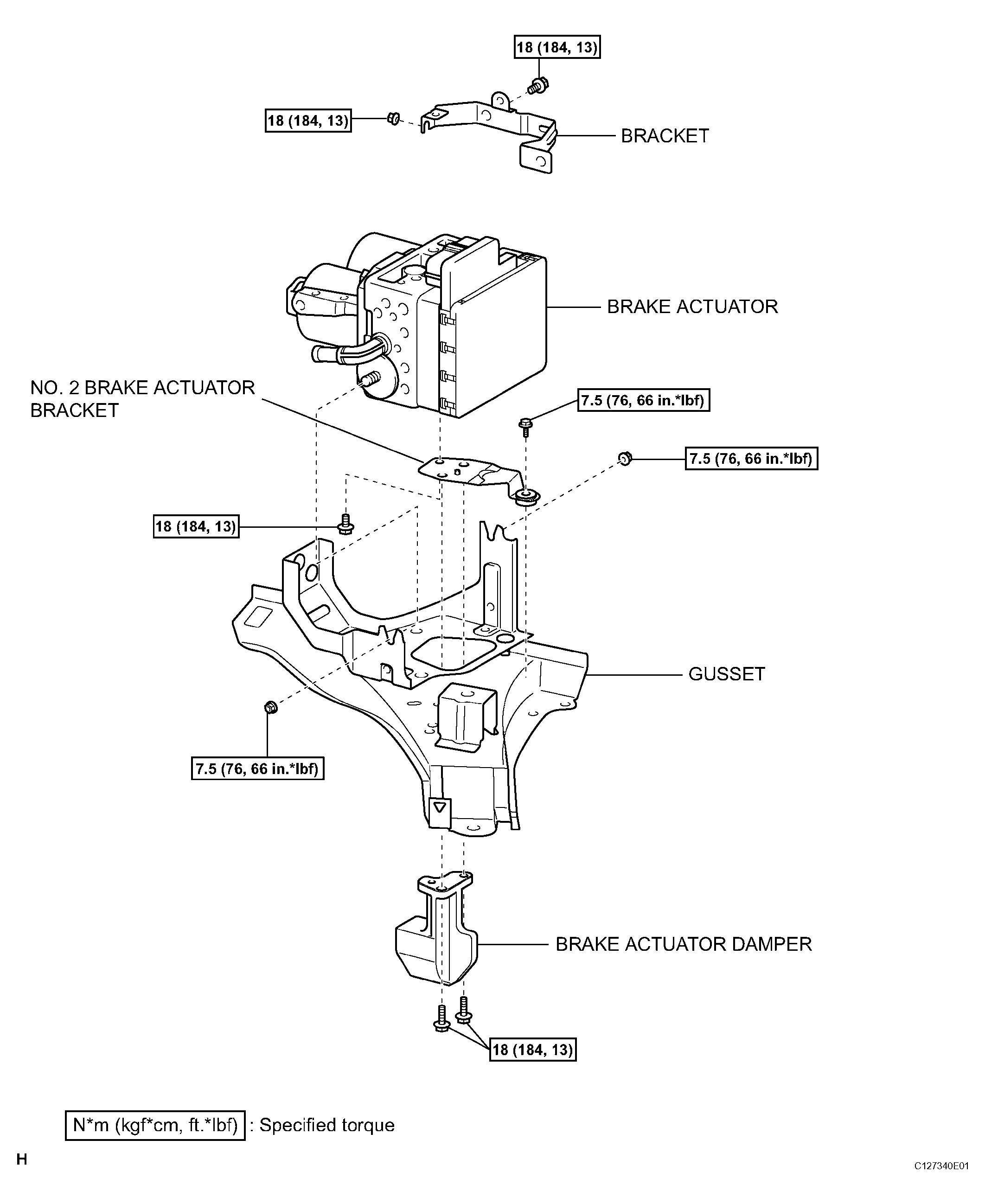

Fig 1: Identifying Brake Actuator Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Brake Actuator Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

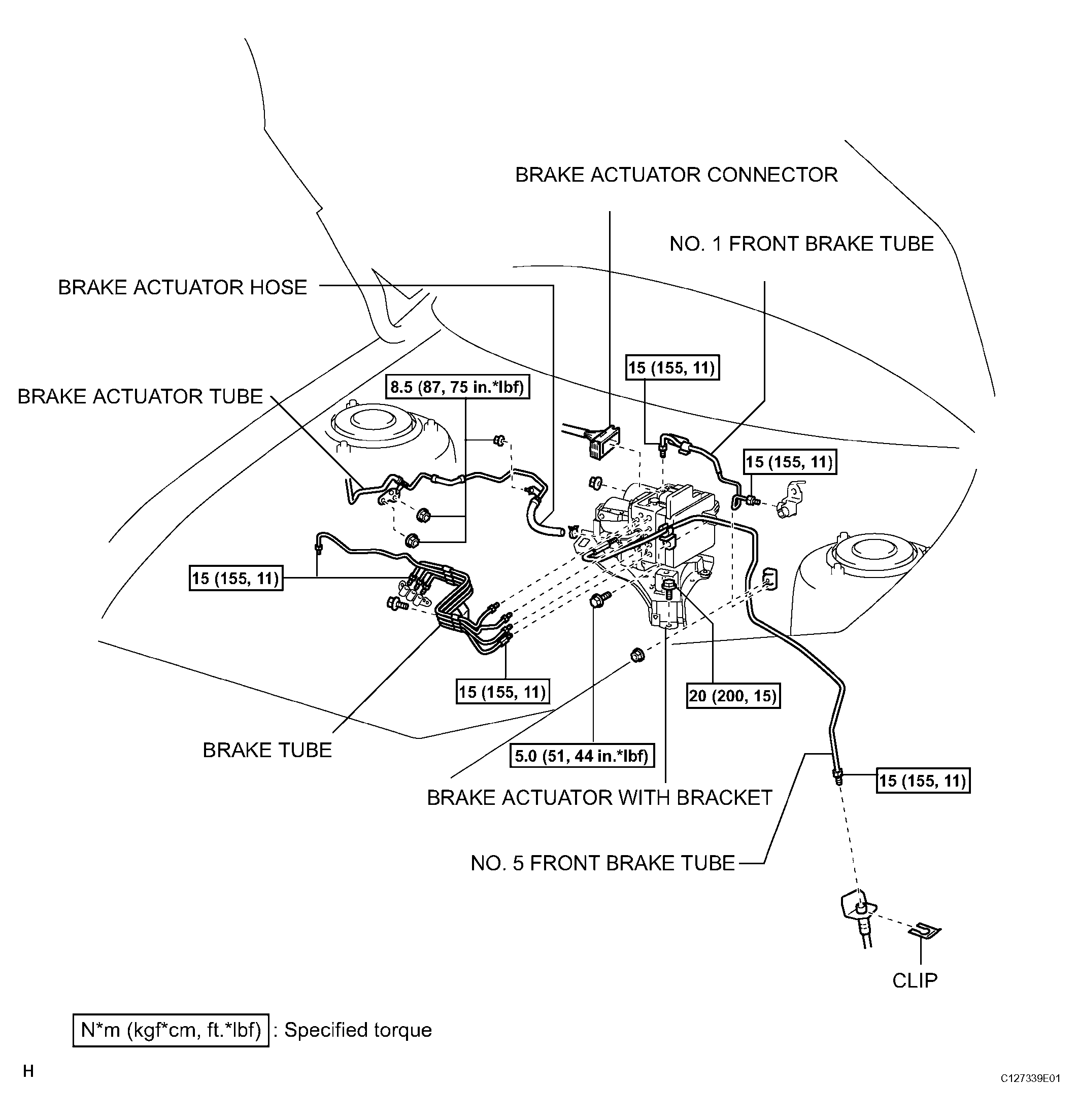

Fig 3: Identifying Brake Actuator Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Brake Actuator Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
