Brake Control Warning Light Remains ON: Wiring Diagram

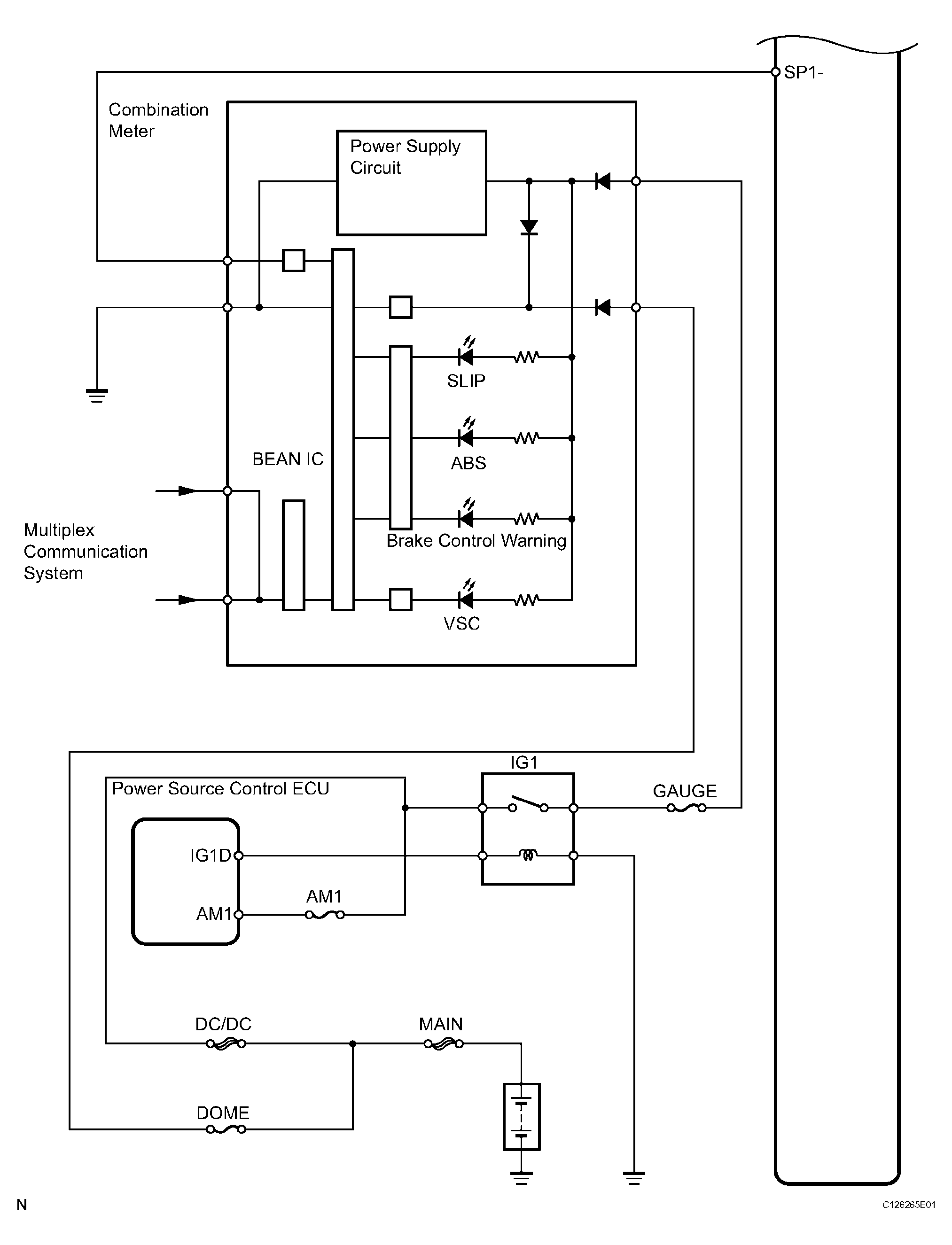

Fig 1: Brake Control Warning Light Remains On - Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

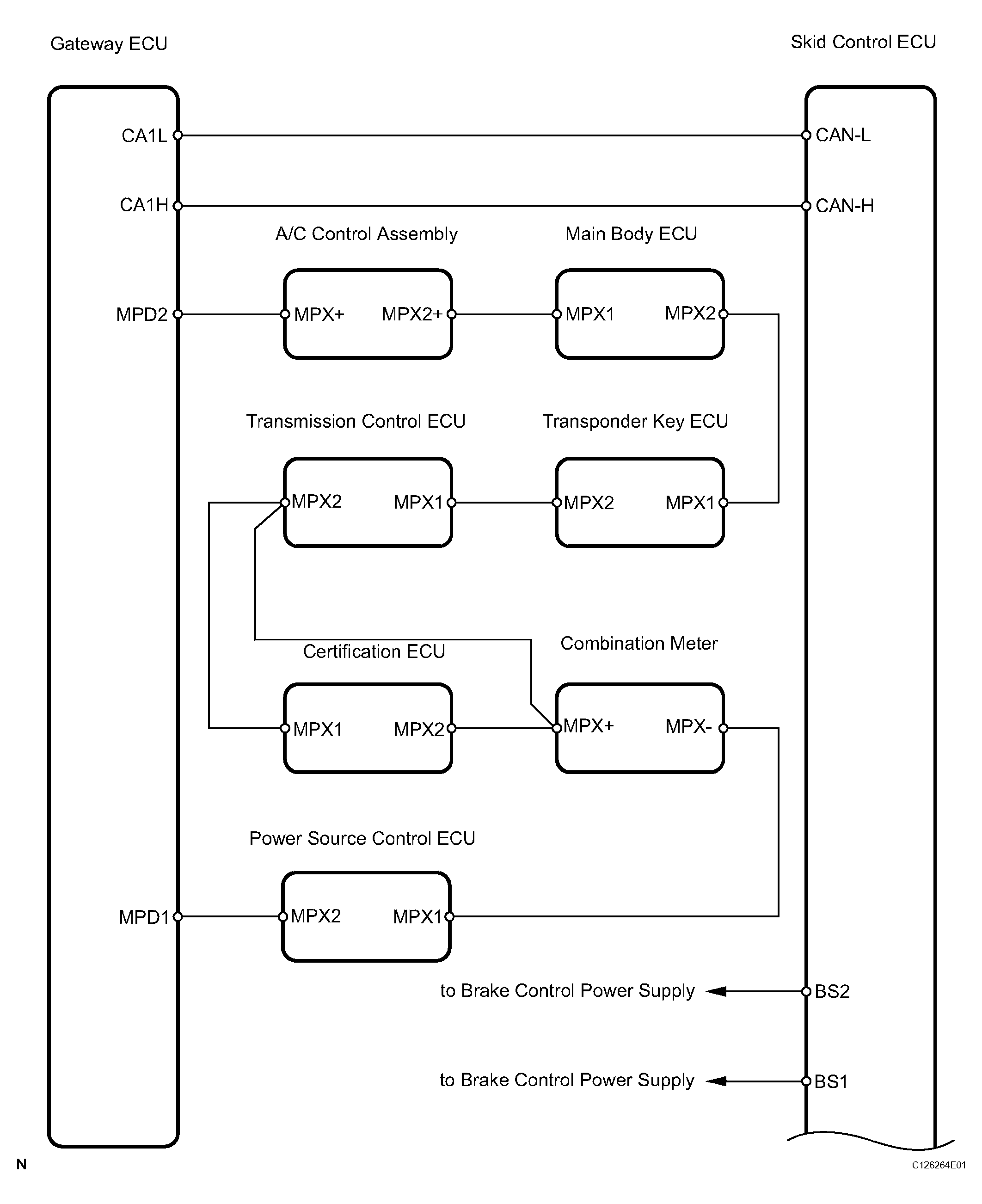

Fig 2: Brake Control Warning Light Remains On - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
