Inspection Procedure

  1. INSPECT FUSE (ABS MAIN3)
    1. Remove the ABS MAIN3 fuse from the engine room relay block.
    2. Measure the resistance of the fuse.

      Standard resistance: Below 1 Ω

    NG : CHECK FOR SHORT IN ALL HARNESS AND CONNECTOR CONNECTED TO FUSE AND REPLACE FUSE

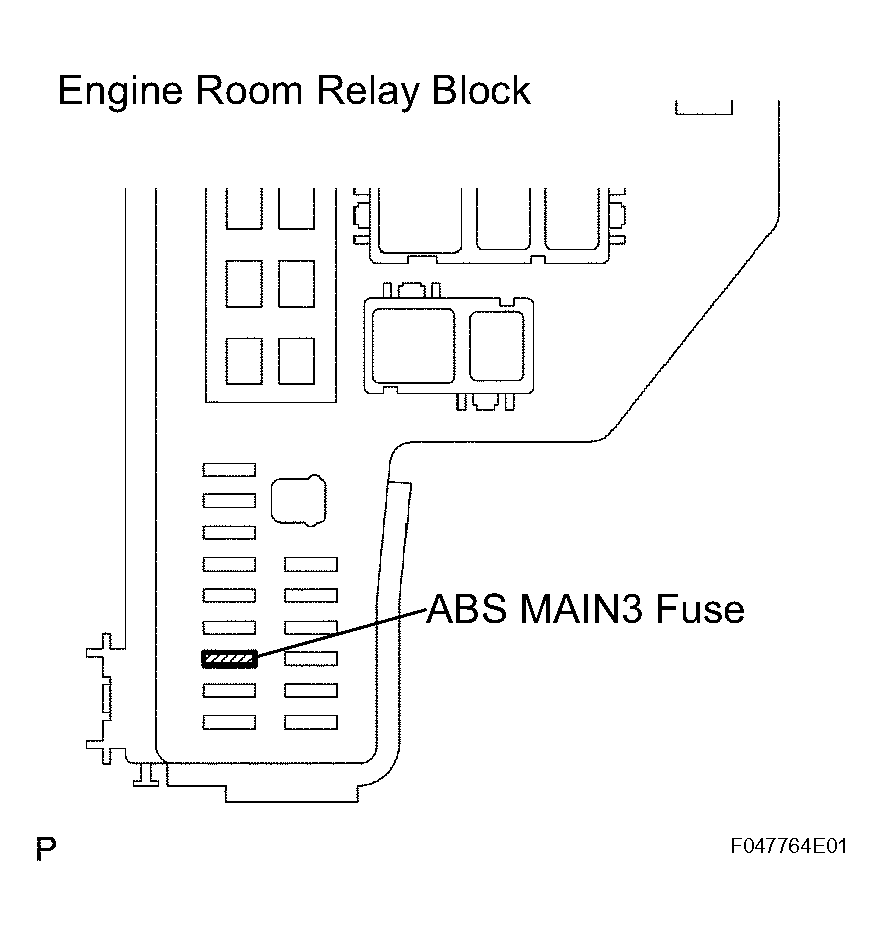

    Fig 1: Inspecting Fuse (ABS MAIN3)
    G04474664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  2. CHECK BRAKE CONTROL POWER SUPPLY (BC VOLTAGE)
    1. Measure the voltage of the connector.

      HINT:

      Measure the voltage from behind the connector with the connector connected.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      B18-8 (BC) - Body ground 10 to 14 V

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    Fig 2: Identifying Brake Control Power Supply B18 Connector
    G04474665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  3. CHECK SKID CONTROL ECU (+BI1, +BI2 VOLTAGE)
    1. Measure the voltage of the connectors.

      HINT:

      Measure the voltage from behind the connector with the connector connected to the skid control ECU.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      S8-3 (+BI1) - Body ground 10 to 14 V
      S9-5 (+BI2) - Body ground 10 to 14 V

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    Fig 3: Checking Skid Control ECU (+BI1, +BI2 Voltage)
    G04474666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  4. CHECK SKID CONTROL ECU (+BO1, +BO2 VOLTAGE)
    1. Measure the voltage of the connectors.

      HINT:

      Measure the voltage from behind the connector with the connector connected to the skid control ECU.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      S8-5 (+BO1) - Body ground 10 to 14 V
      S9-4 (+BO2) - Body ground 10 to 14 V

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    Fig 4: Checking Skid Control ECU (+BO1, +BO2 Voltage)
    G04474667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  5. CHECK BRAKE CONTROL POWER SUPPLY (OUT1, BCTY, OUT2 VOLTAGE)
    1. Measure the voltage of the connector.

      HINT:

      Measure the voltage from behind the connector with the connector connected.

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      B18-1 (OUT) - Body ground Power switch ON (READY) 9 to 13 V
      B18-2 (BCTY) - Body ground Power switch ON (READY) 9 to 13 V
      B18-7 (OUT2) - Body ground Power switch ON (READY) 9 to 13 V

    NG : REPLACE BRAKE CONTROL POWER SUPPLY

    Fig 5: Checking Brake Control Power Supply (OUT1, BCTY, OUT2 Voltage)
    G04474668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : REPAIR OR REPLACE HARNESS AND CONNECTOR
