Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control System
›
Electronically Controlled Brake System
›
Parts Location
Parts Location

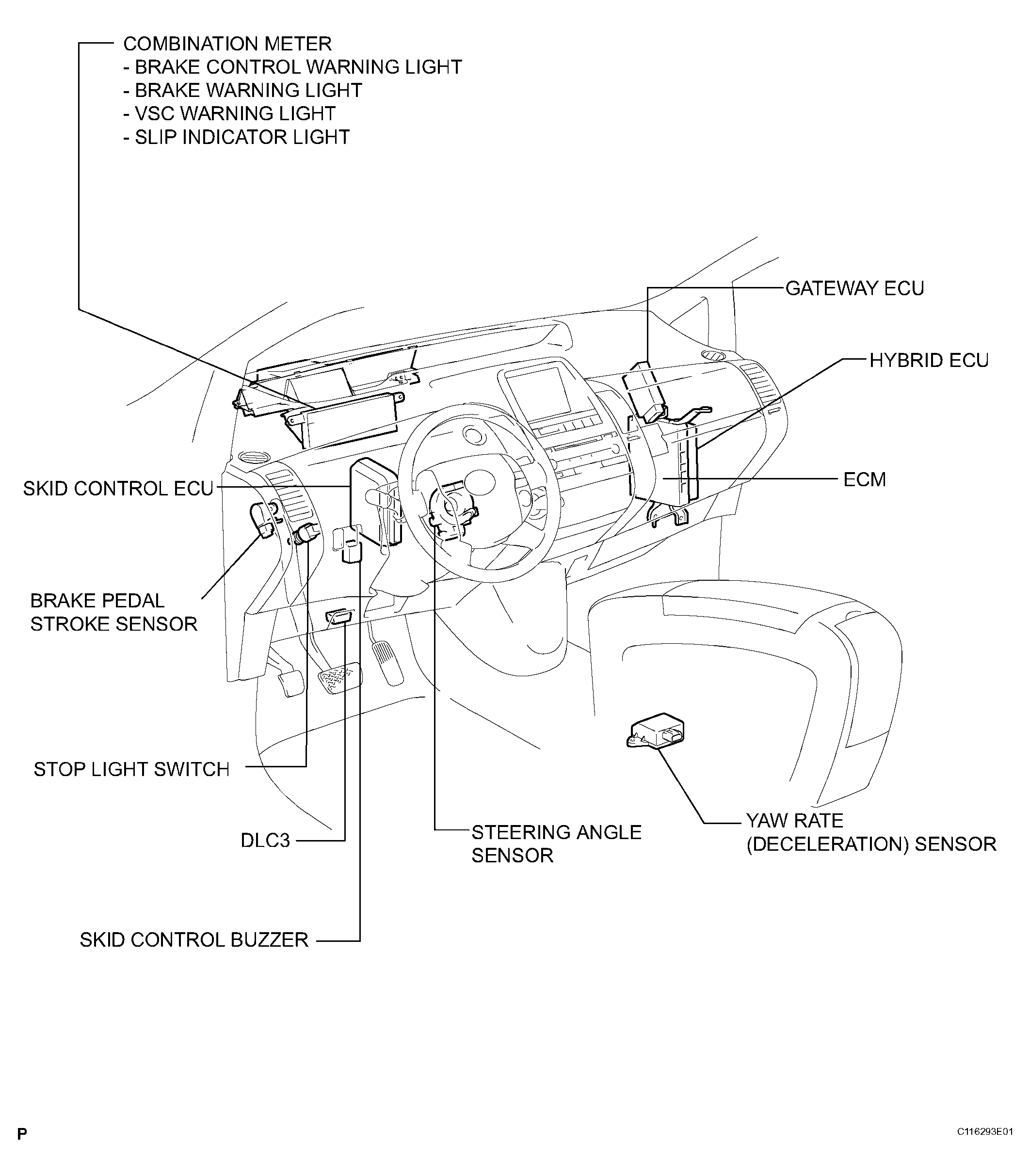

Fig 1: Identifying Brake Control System Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

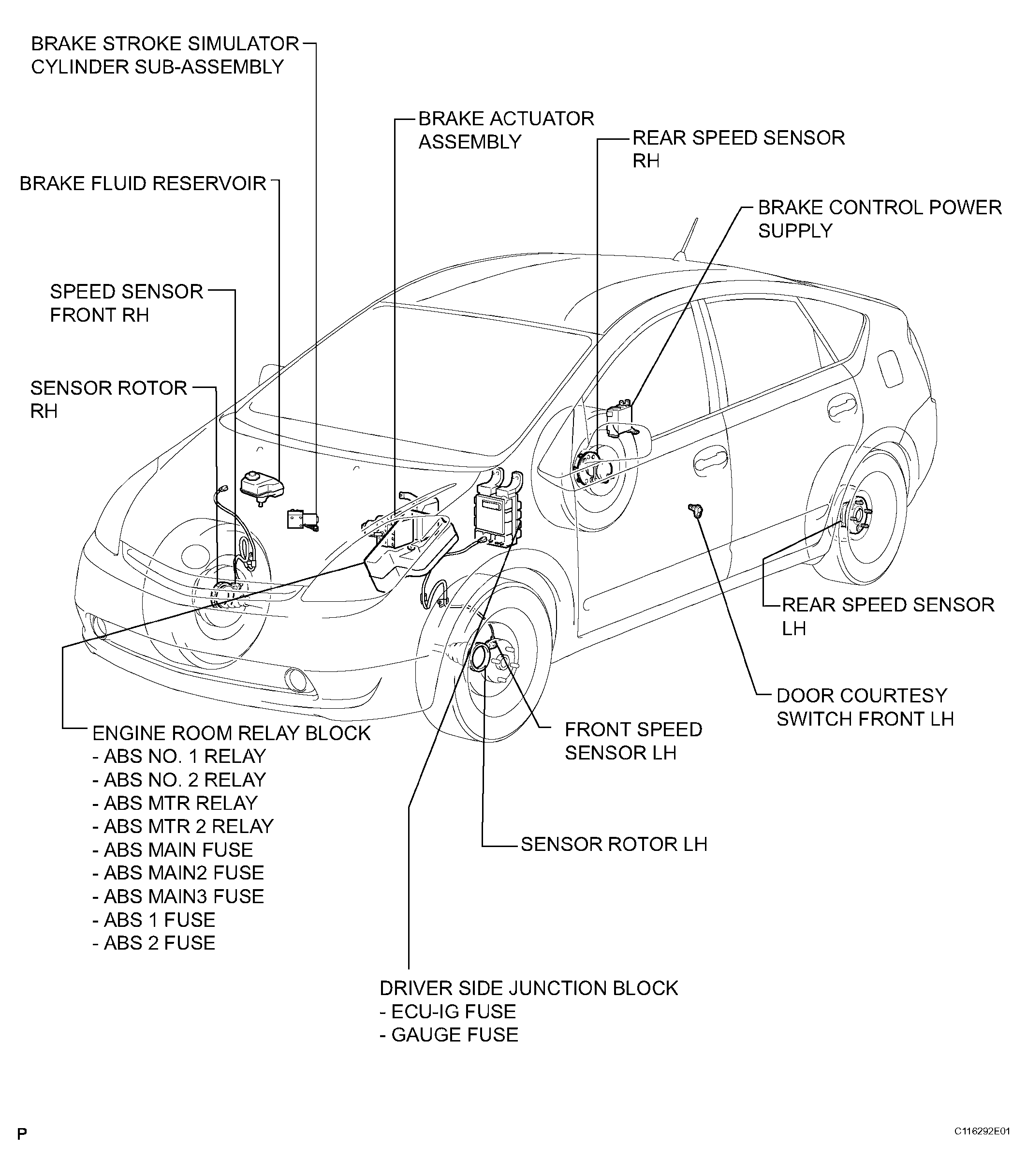

Fig 2: Identifying Brake Control System Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
