Inspection Procedure

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration (see INITIALIZATION  ).
  1. CHECK DLC3 (TS VOLTAGE)
    1. Turn the power switch ON (READY).
    2. Measure the voltage of the DLC3.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      D1-12 (TS) - D1-4 (CG) 10 to 14 V

    NG : Go to step   3

    Fig 1: Identifying DLC3 Connector Terminal
    G04474697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  2. CHECK WIRE HARNESS (SKID CONTROL ECU - DLC3)
    1. Disconnect the S8 ECU connector.
    2. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      S8-32 (TS) - D1-12 (TS) Below 1 Ω
      S8-32 (TS) - Body ground 10 kΩ or higher

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

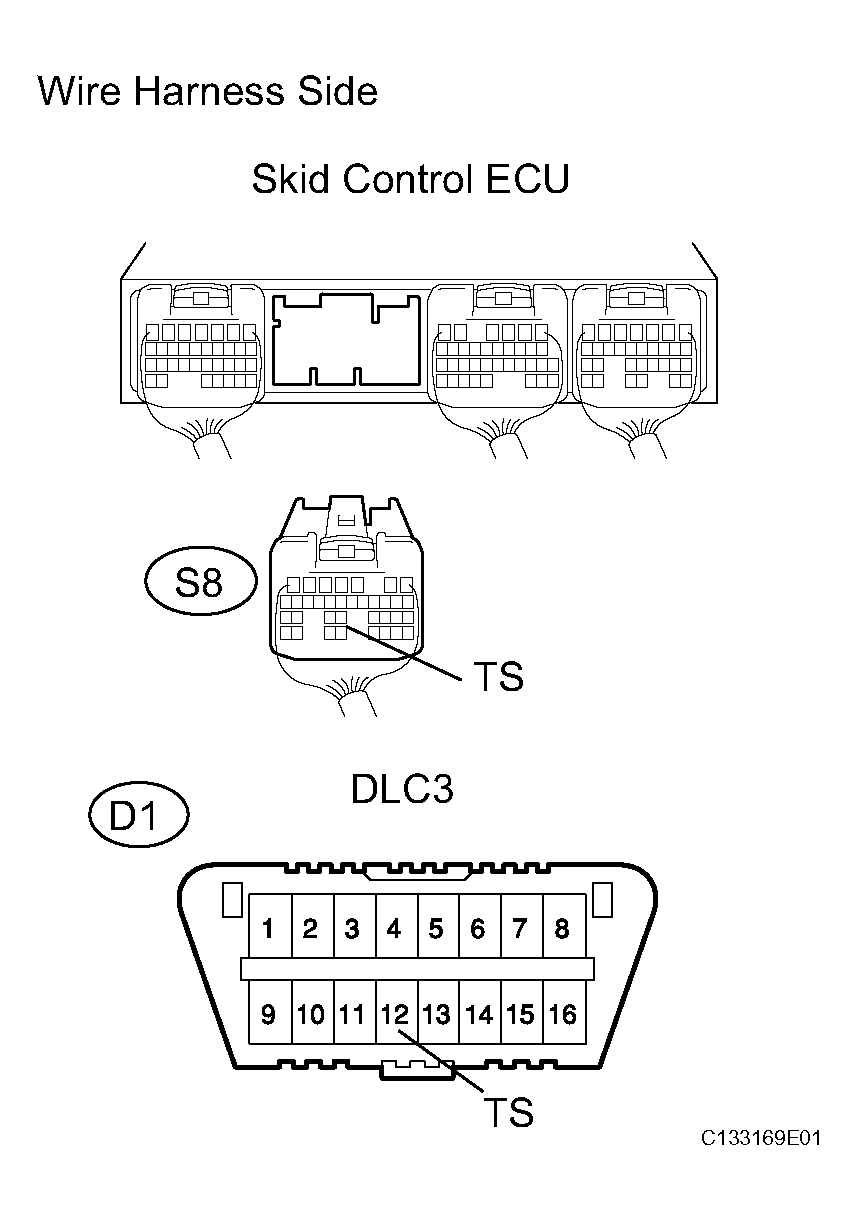

    Fig 2: Disconnecting S8 ECU Connector
    G04474698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : REPLACE SKID CONTROL ECU

  3. CHECK WIRE HARNESS (DLC3 - BODY GROUND)
    1. Measure the resistance of the DLC3 connector.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      D1-4 (CG) - Body ground Below 1 Ω

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    Fig 3: Identifying DLC3 Connector Terminal
    G04474699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : GO TO NEXT STEP

  4. CHECK WIRE HARNESS (SKID CONTROL ECU - DLC3)
    1. Disconnect the S8 ECU connector.
    2. Measure the resistance of the wire harness side connector.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      S8-32 (TS) - D1-12 (TS) Below 1 Ω
      S8-32 (TS) - Body ground 10 kΩ or higher

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    Fig 4: Disconnecting S8 ECU Connector
    G04474700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK : REPLACE SKID CONTROL ECU
