Skid Control Sensor: Components

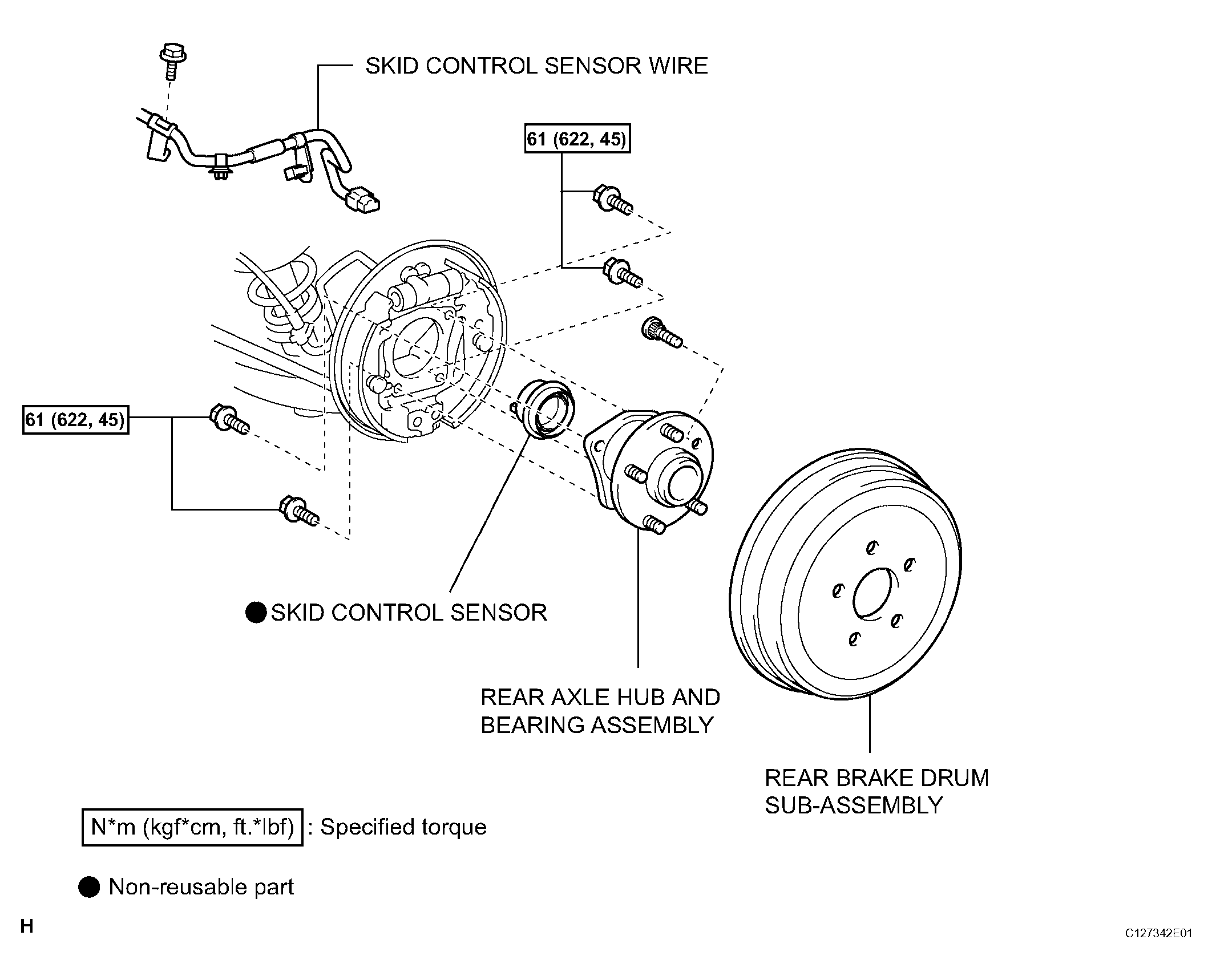

Fig 1: Identifying Skid Control Sensor Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
