Multiplex Communication System - AVC-LAN Bus: Notes

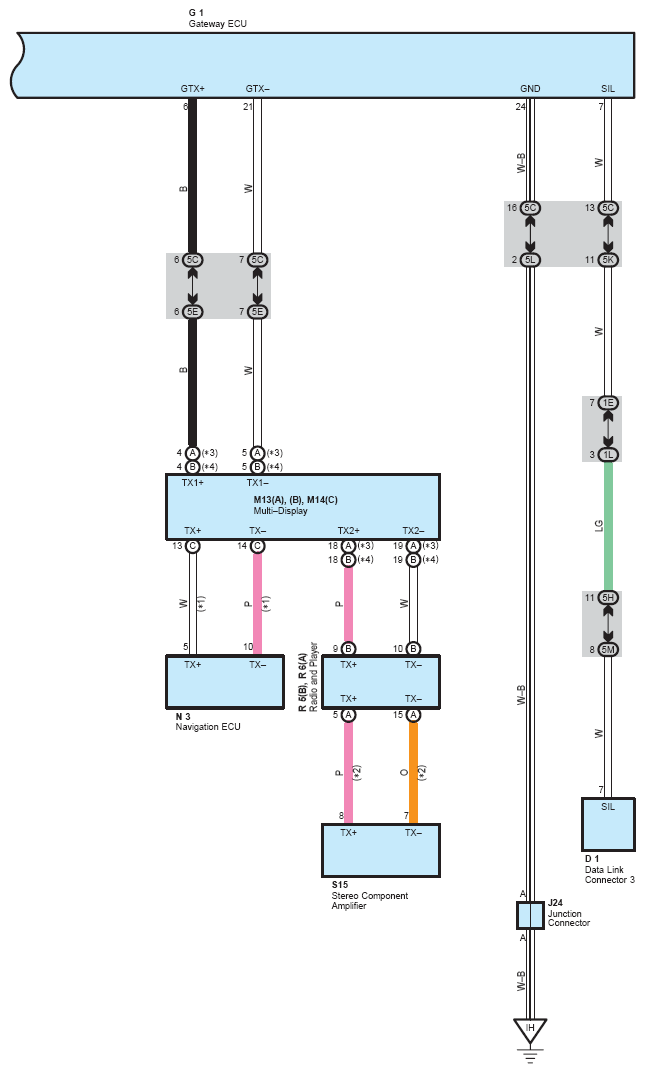

Fig 1: Multiplex Communication (AVC-LAN Bus) System Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

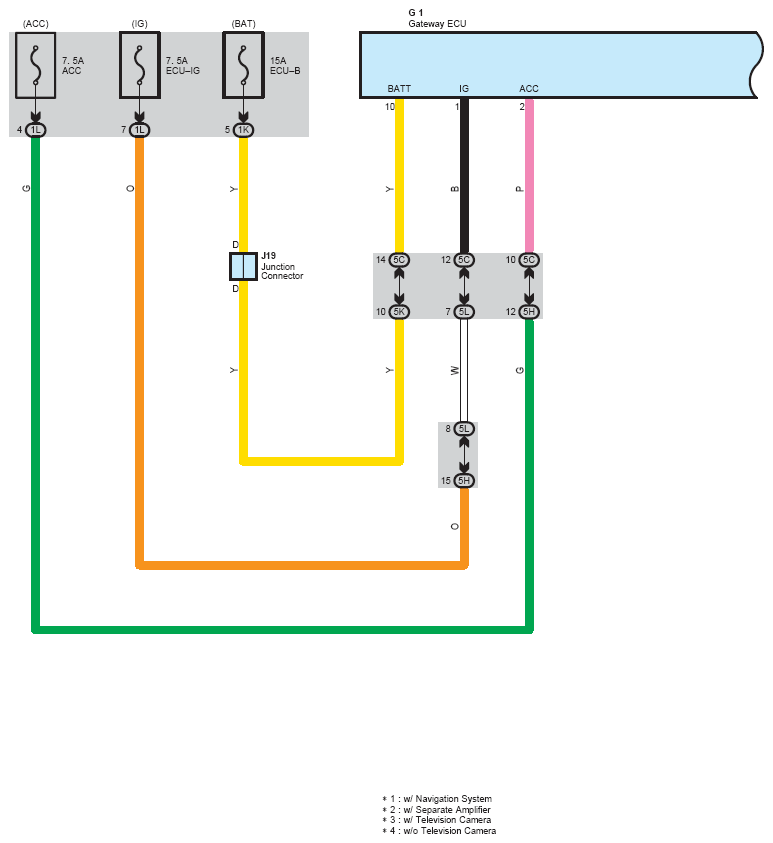

Fig 2: Multiplex Communication (AVC-LAN Bus) System Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
