Knock Sensor: Components

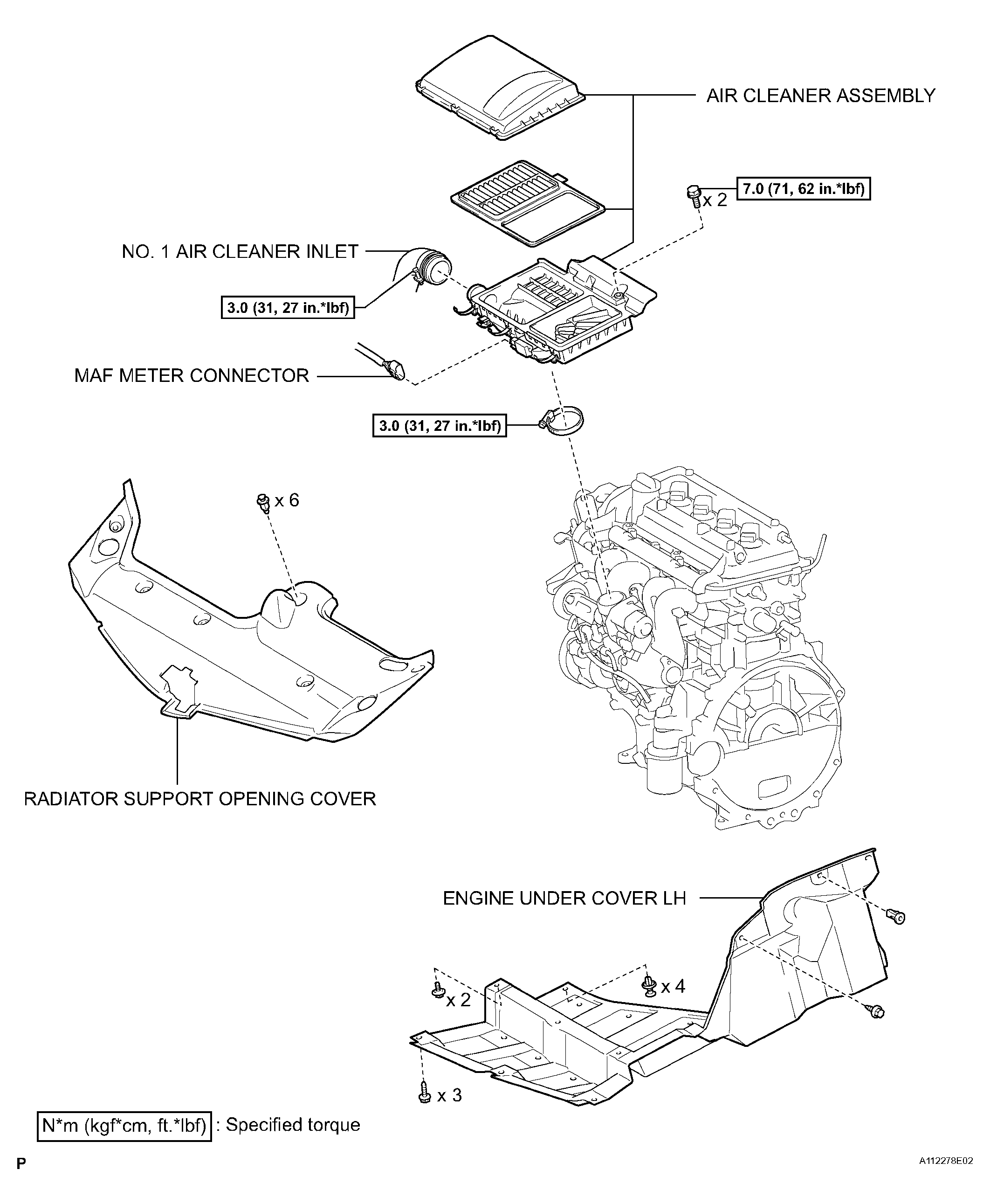

Fig 1: Identifying Knock Sensor Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

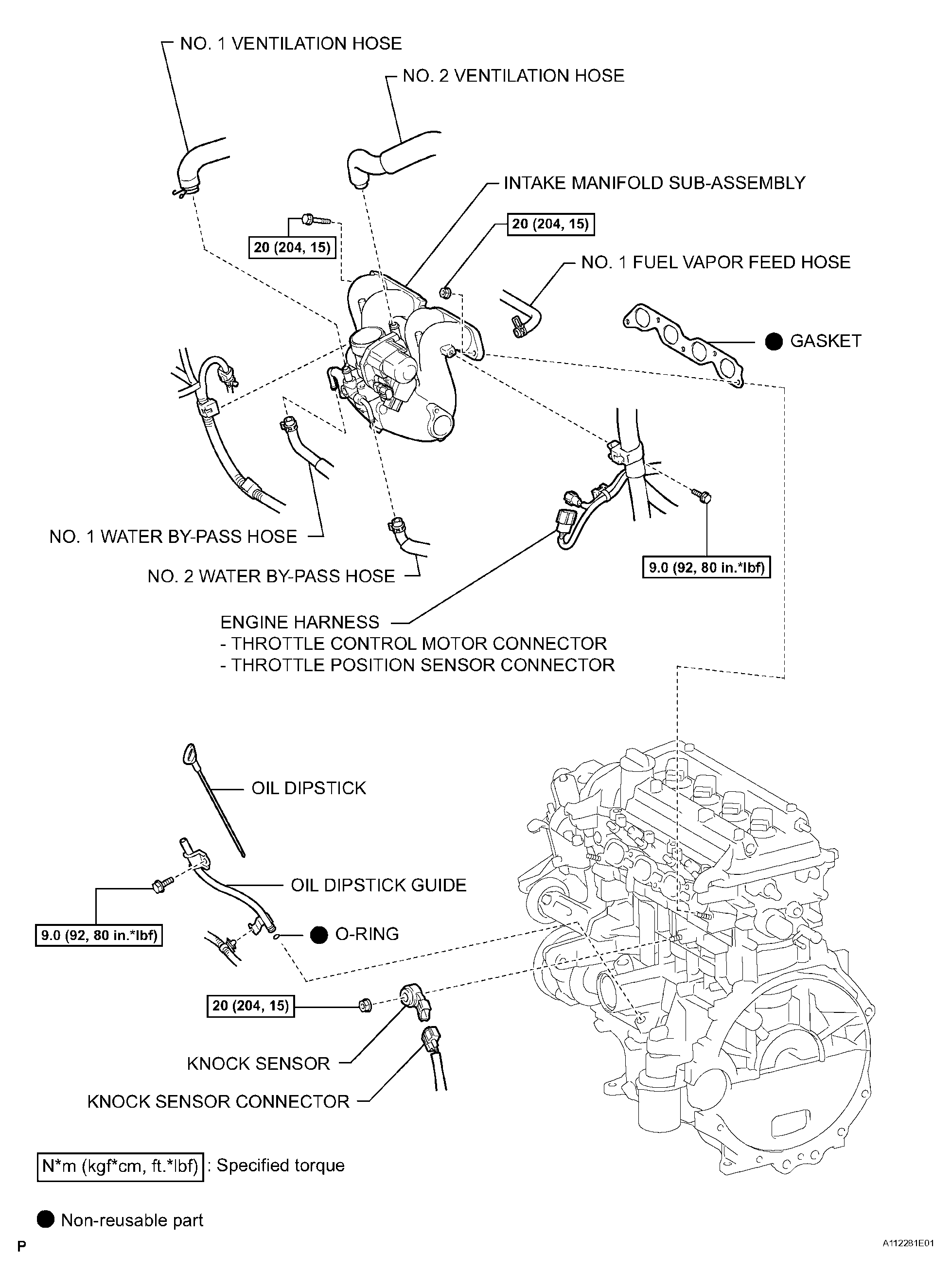

Fig 2: Identifying Knock Sensor Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
