VC Output Circuit: Wiring Diagram

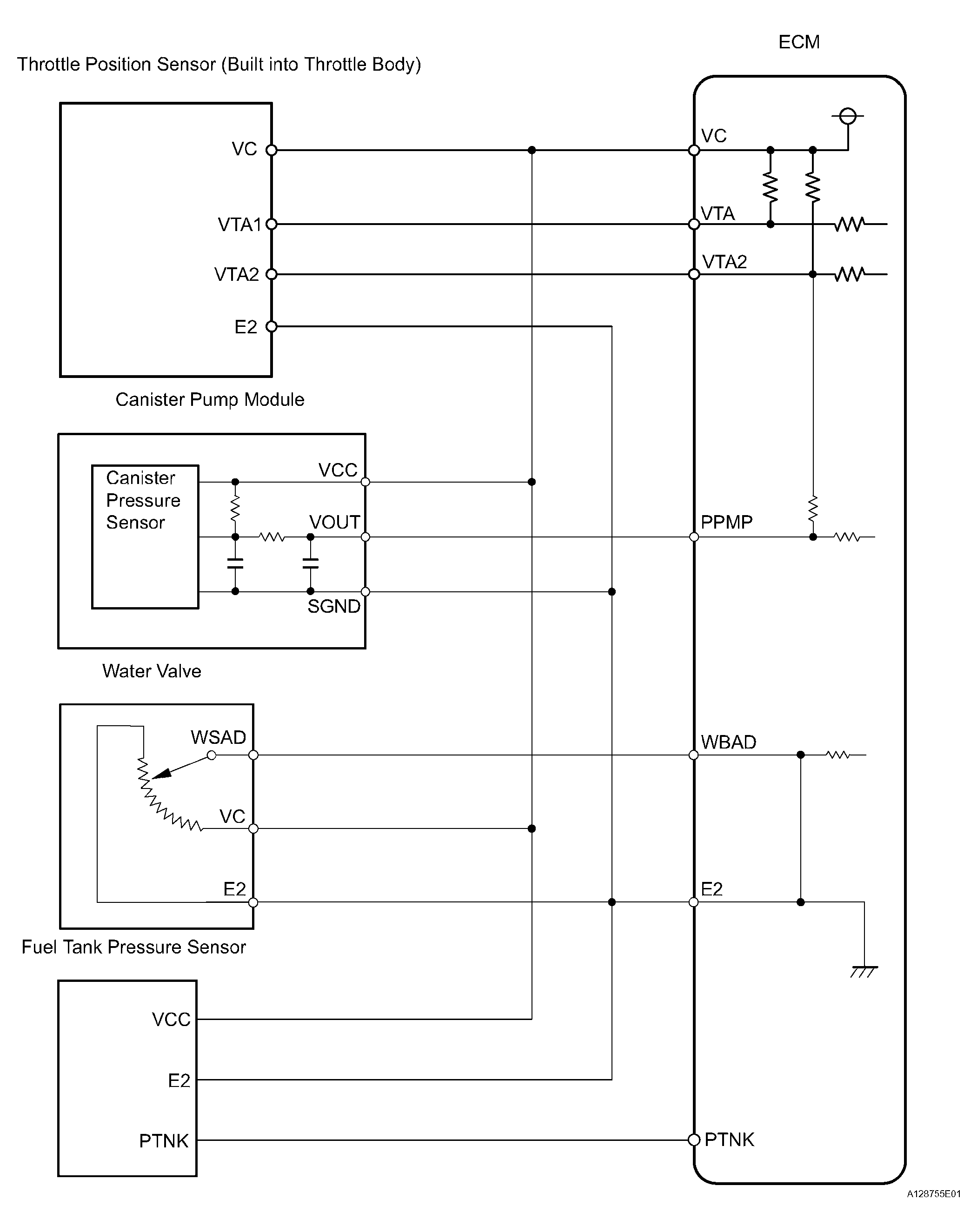

Fig 1: Wiring Diagram - VC Output Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
