DTC Check/Clear

WARNING: This page is about a different car, the 2006 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

DTC CHECK
HINT:

When DTC B1650/32 is detected as a result of troubleshooting for "AIRBAG SYSTEM", perform troubleshooting for the occupant classification system.
1. Check the DTCs.
  1. Connect the intelligent tester to the DLC3.

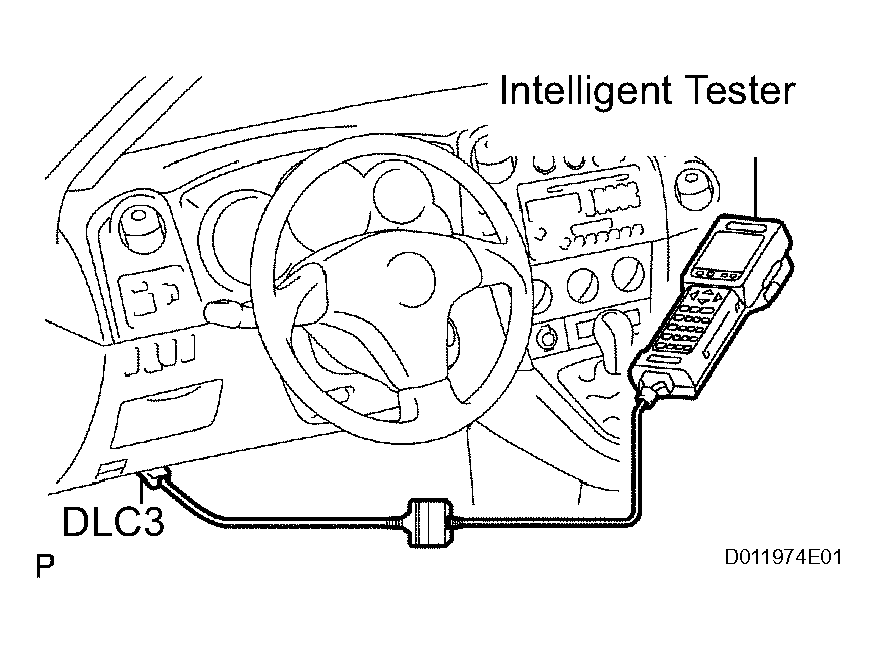

    Fig 1: Connecting Intelligent Tester To DLC3
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Turn the ignition switch to the ON position.
  3. Check the DTCs by following the prompts on the tester screen.
    HINT:

    Refer to the intelligent tester operator's information for further details.
2. Clear the DTCs.
  1. Connect the intelligent tester to the DLC3.
  2. Turn the ignition switch to the ON position.
  3. Clear the DTCs by following the prompts on the tester screen.
    HINT:

    Refer to the intelligent tester operator's information for further details.
