Headlight Assembly: Components

WARNING: This page is about a different car, the 2006 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Headlight Assembly Components (1 Of 2)
G04466437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

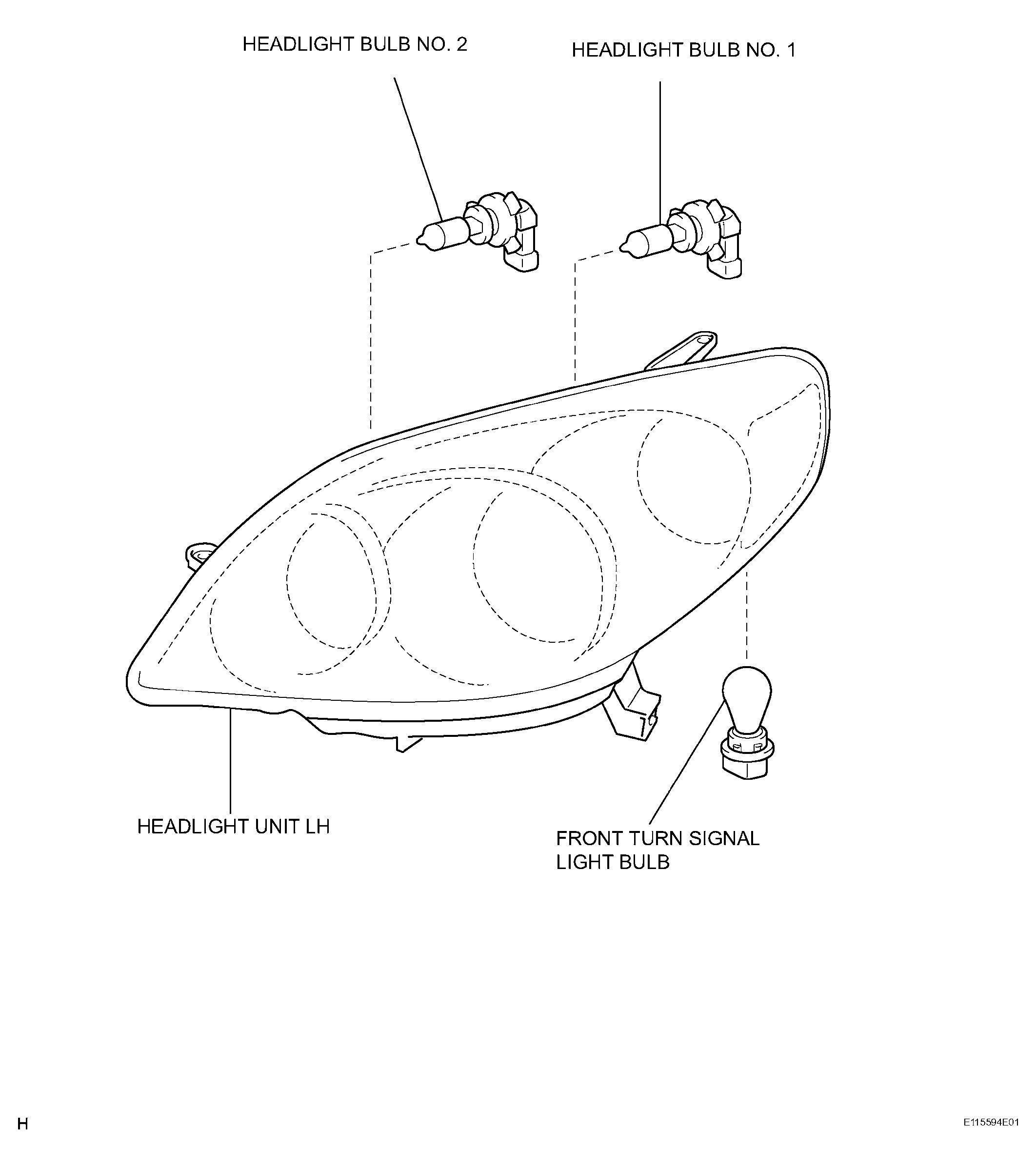

Fig 2: Identifying Headlight Assembly Components (2 Of 2)
G04466438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
