Steering Column Assembly: Components

WARNING: This page is about a different car, the 2006 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

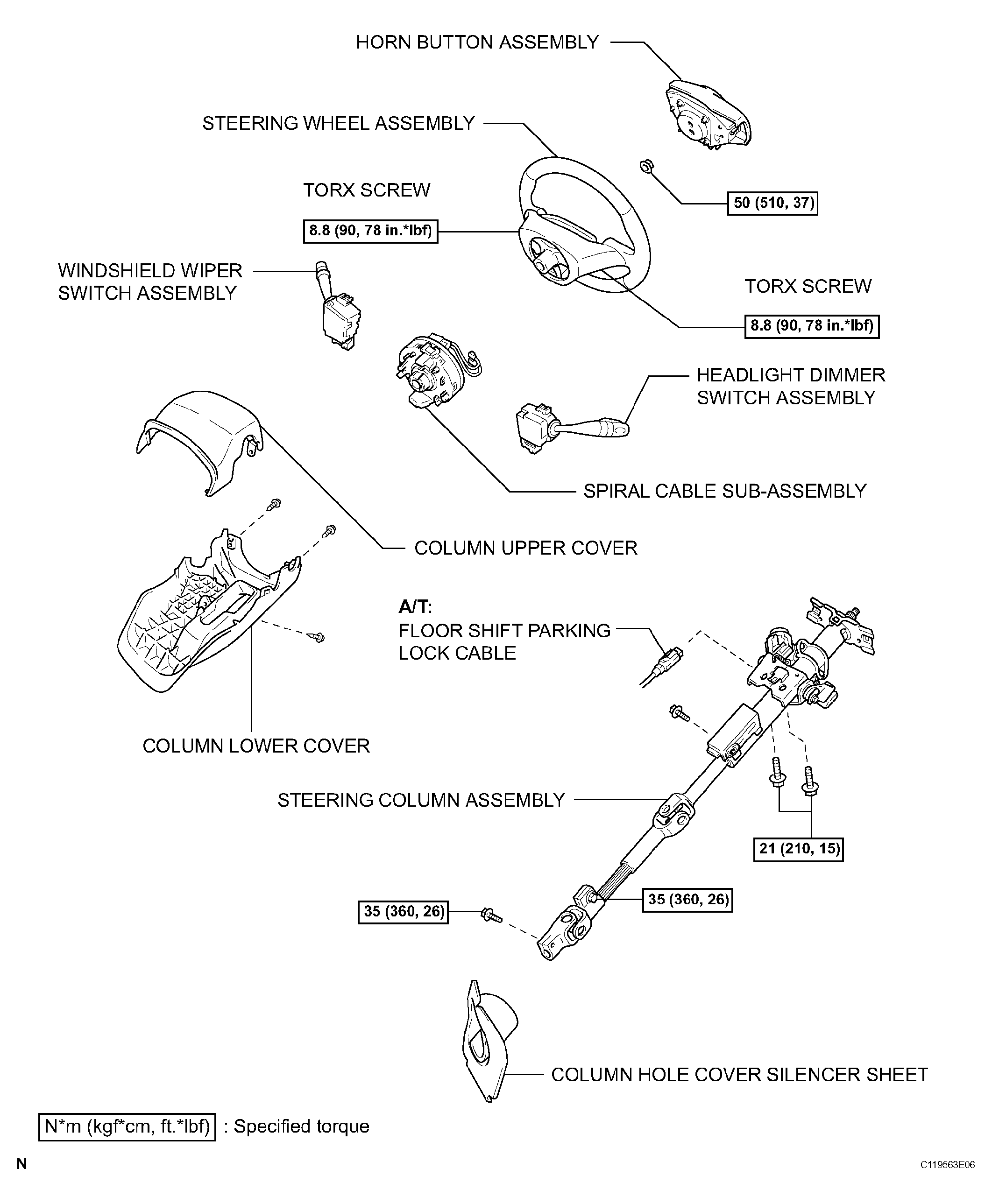

Fig 1: Identifying Steering Column Assembly Components (1 Of 2)
G04465576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

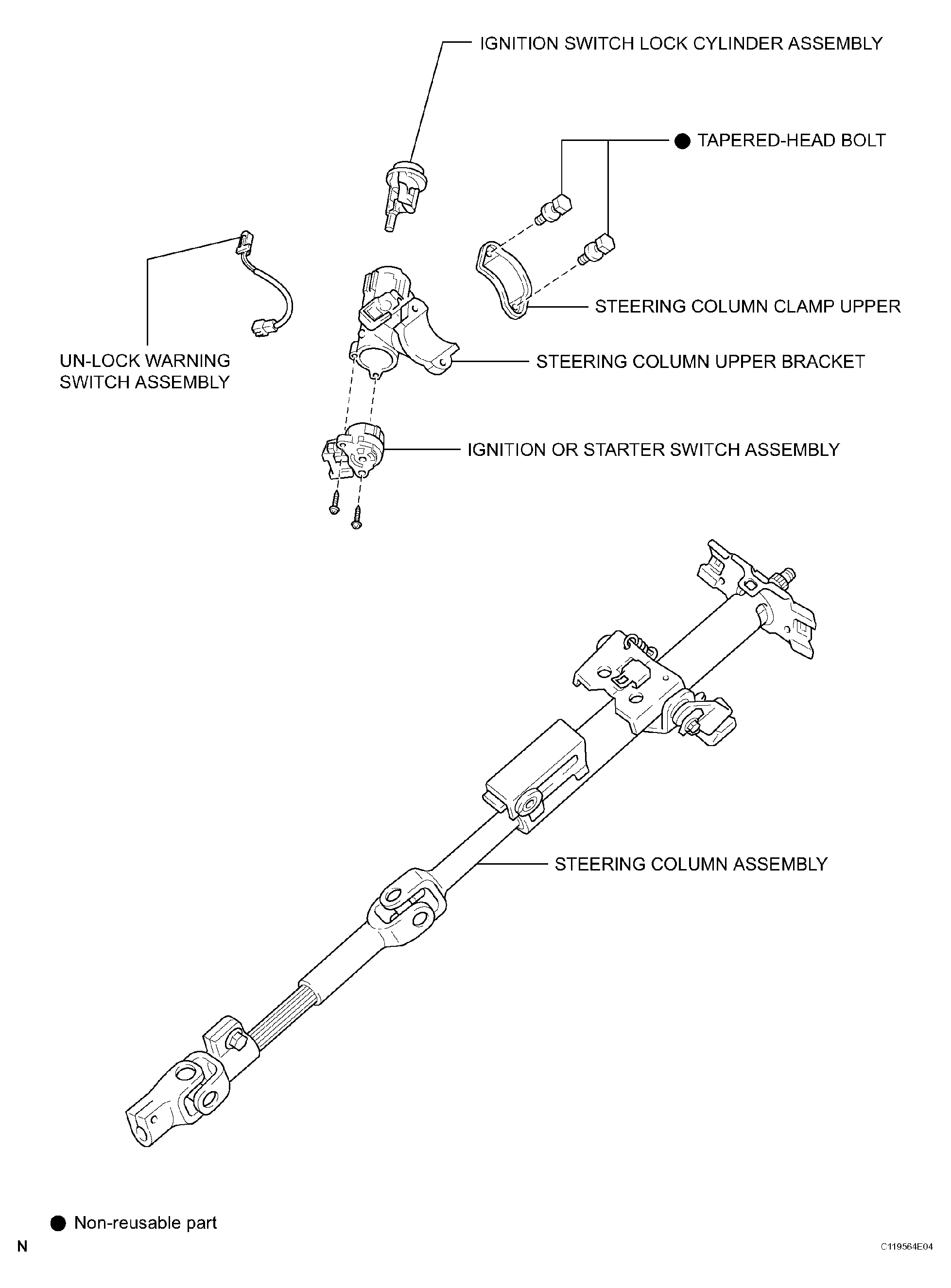

Fig 2: Identifying Steering Column Assembly Components (2 Of 2)
G04465577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
