Home › Toyota › 2006 › Prius › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission › Differential Case › Components

Differential Case: Components

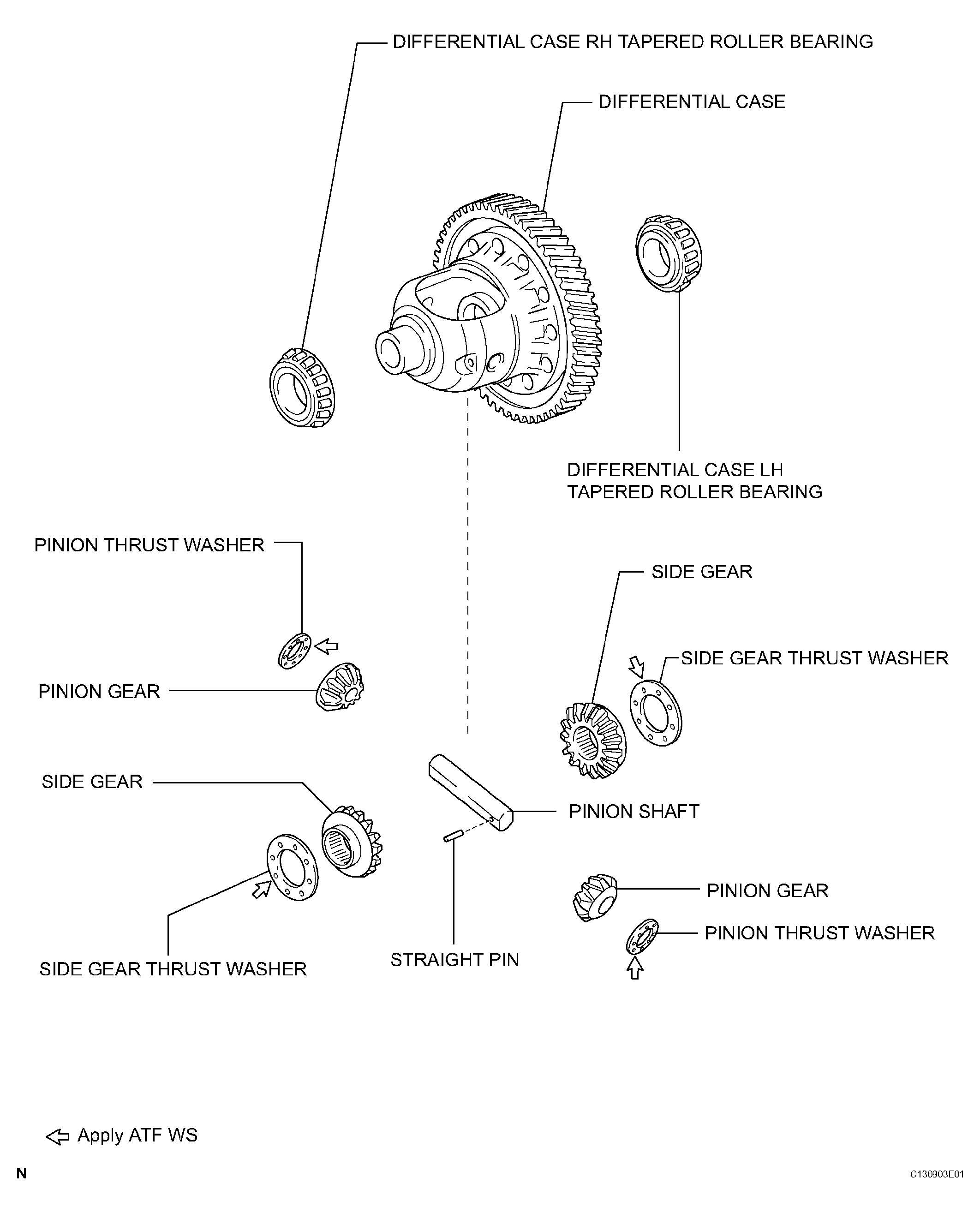

Fig 1: Identifying Differential Case Components
G04474275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
