Rear Power Window RH does not Operate with Rear Power Window Switch RH: Wiring Diagram

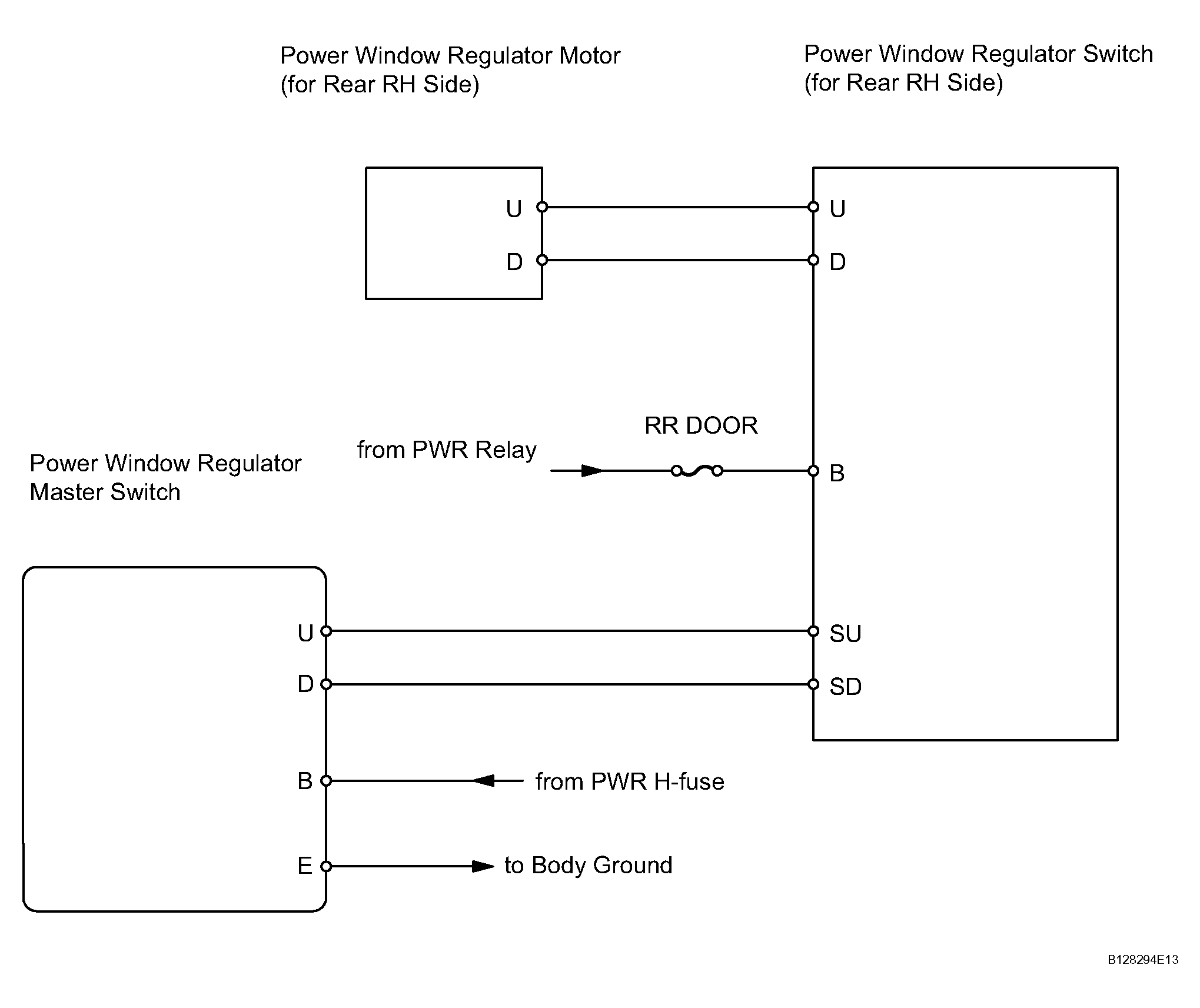

Fig 1: Rear Power Window RH Operate With Rear Power Window Switch RH - Wiring Diagram
G04491401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
