Windshield Deicer System
›
System Diagram
›
Wiring Diagram
System Diagram: Wiring Diagram

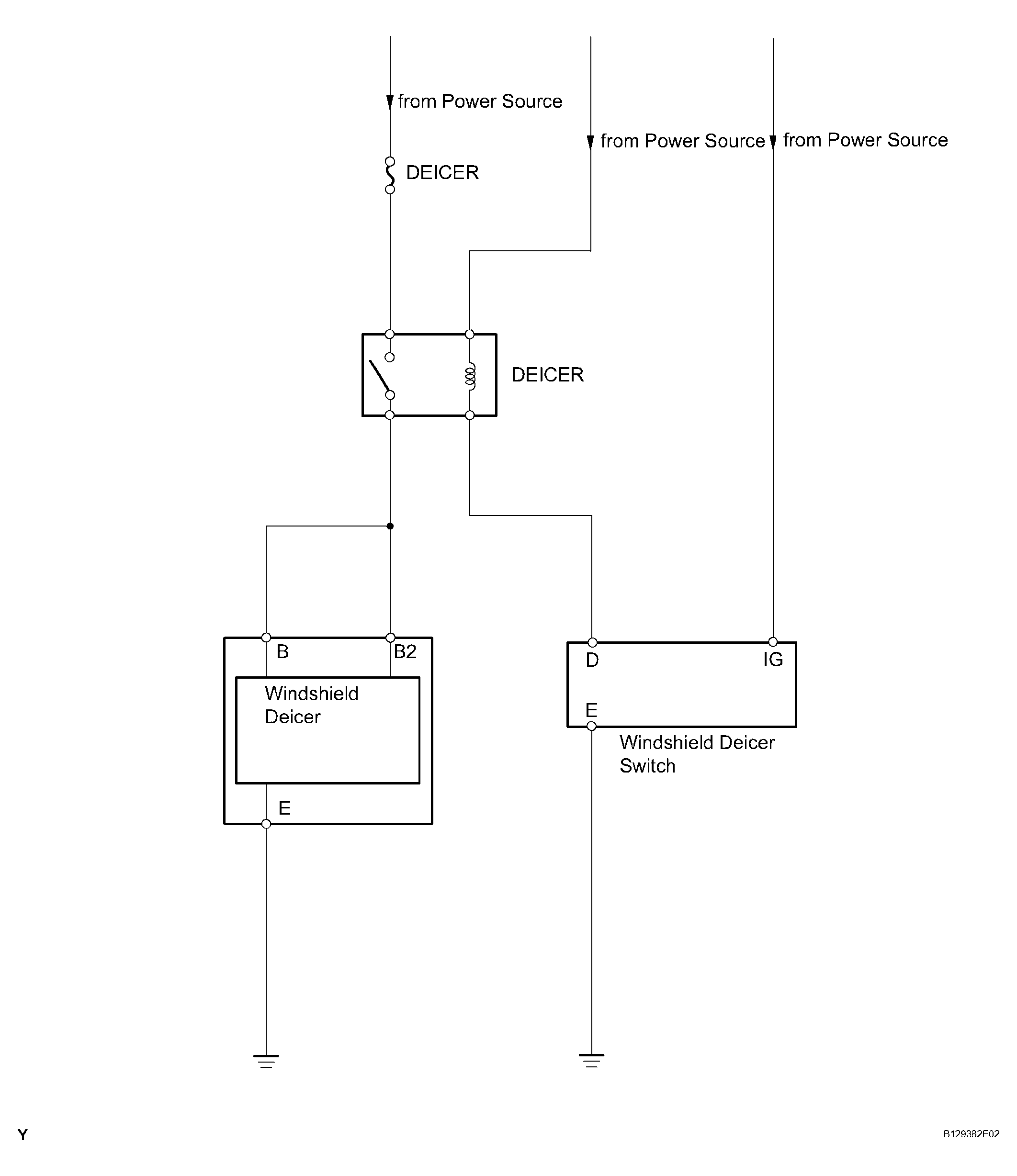

Fig 1: Windshield Deicer System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
