Multiplex Communication System - CAN: Notes

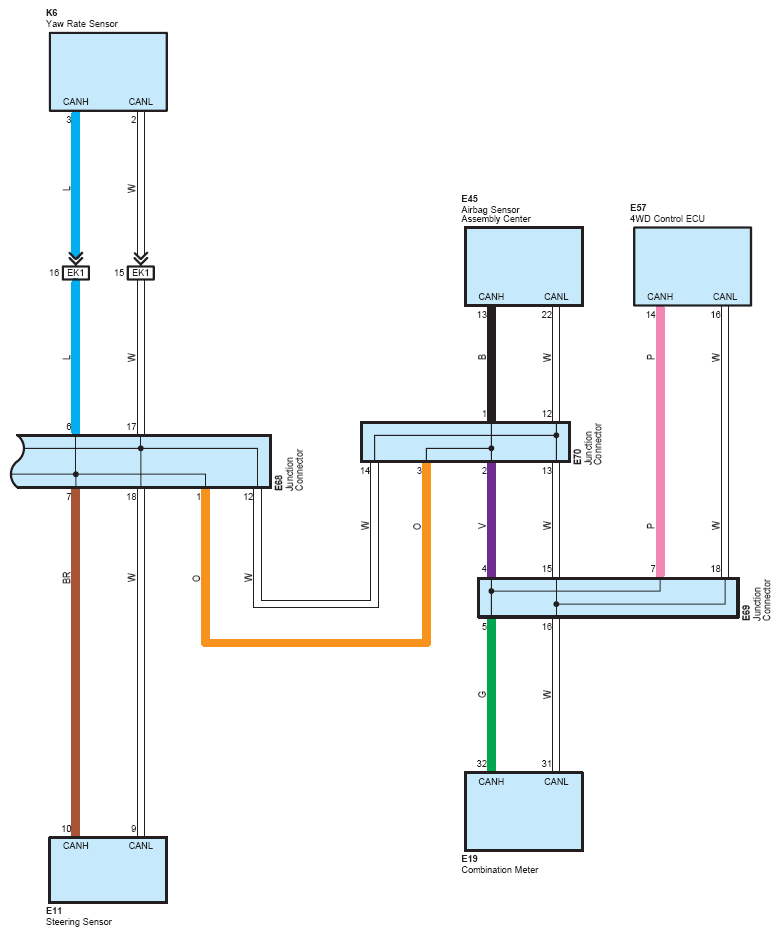

Fig 1: Multiplex Communication System - CAN (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

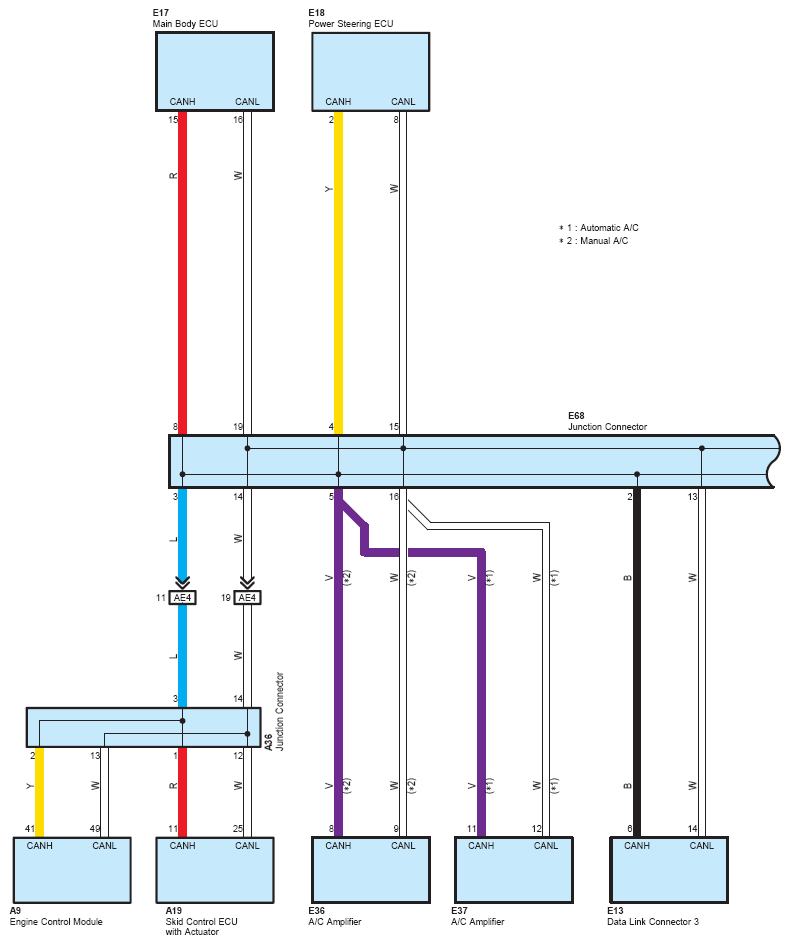

Fig 2: Multiplex Communication System - CAN (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
