Seat Heater: Notes

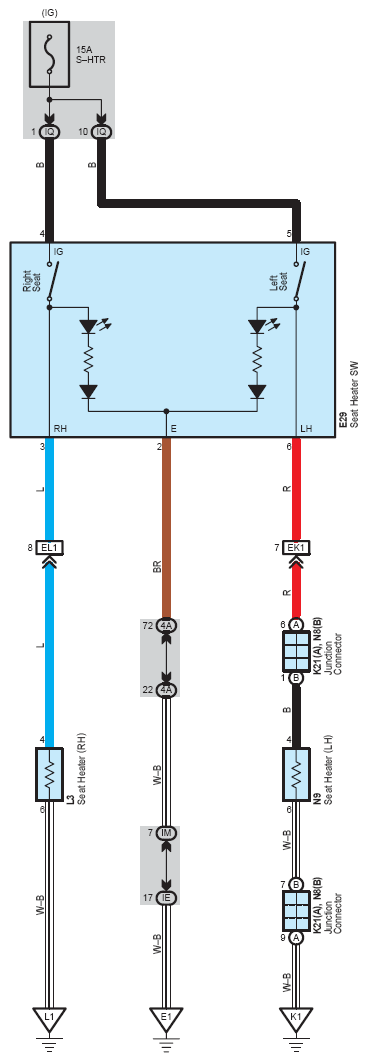

Fig 1: Seat Heater System Wiring Diagram

G08795441

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
