Rear Upper Control Arm: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. DISCONNECT SKID CONTROL SENSOR WIRE (for 2WD) (See  REMOVAL  )
3. DISCONNECT REAR SPEED SENSOR LH (for 4WD) (See  REMOVAL  )
4. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH
   1. Support the No. 2 suspension arm.

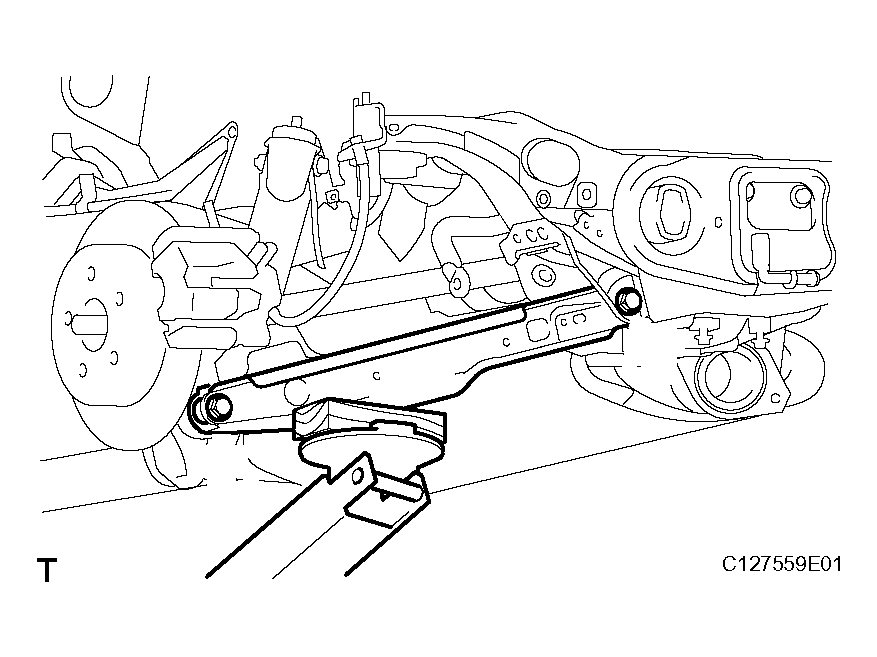

      Fig 1: Supporting No. 2 Suspension Arm

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 bolts and 2 nuts, and disconnect the upper control arm.
      NOTE: When removing the bolts, hold the nuts in place.

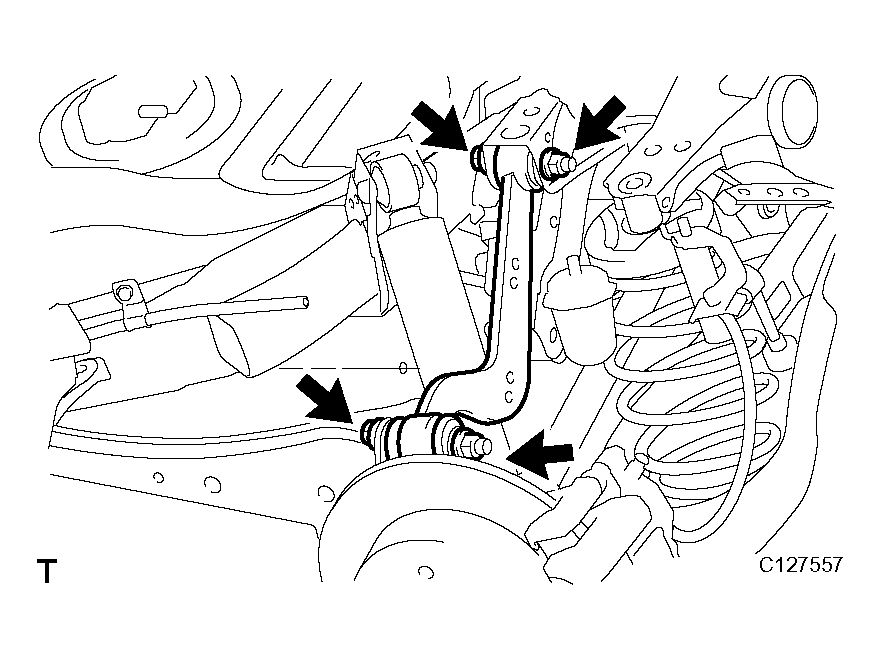

      Fig 2: Removing 2 Bolts And 2 Nuts, And Disconnecting Upper Control Arm

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
