Charging with Trailer Towing: Notes

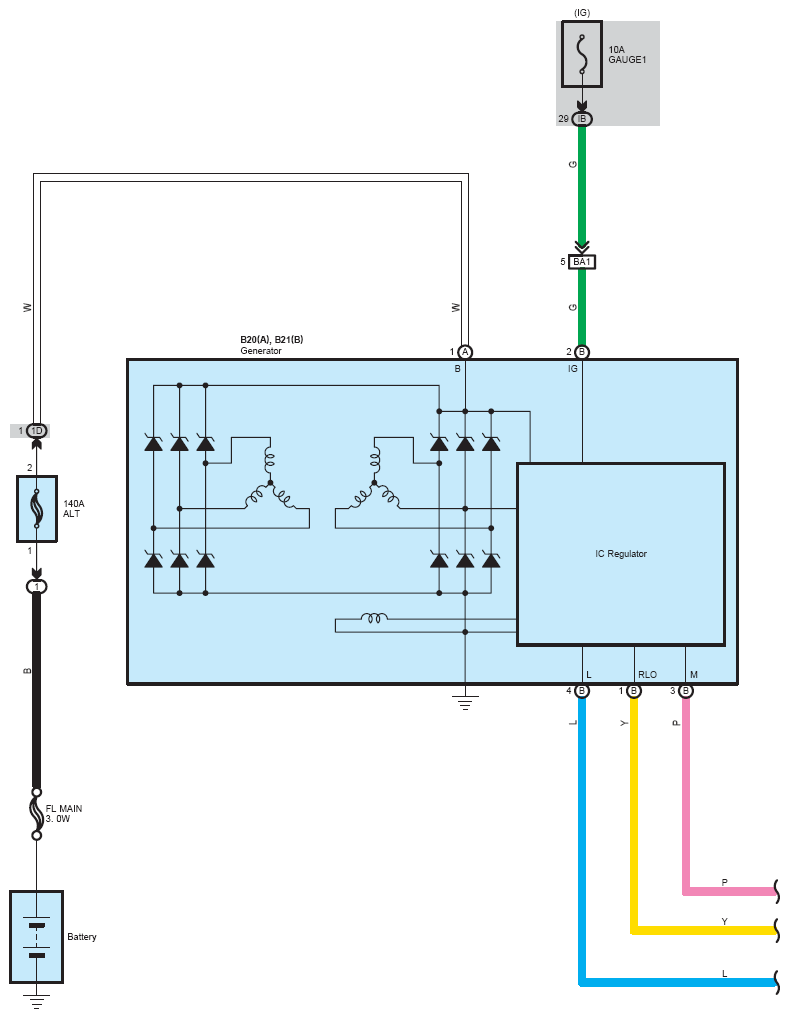

Fig 1: Charging With Trailer Towing System Wiring Diagram (1 Of 3)
G08795383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

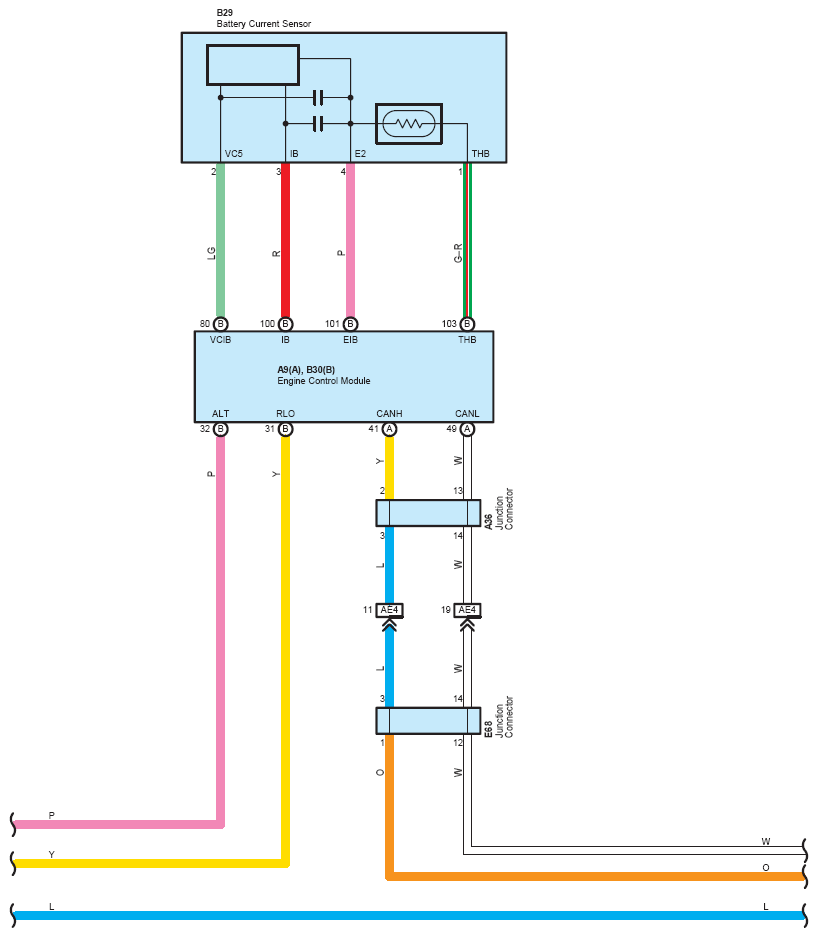

Fig 2: Charging With Trailer Towing System Wiring Diagram (2 Of 3)
G08795384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

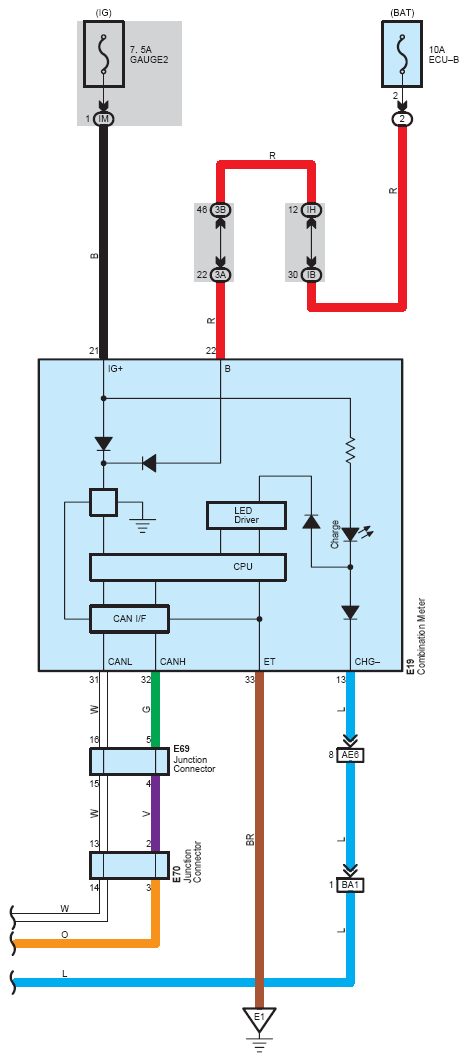

Fig 3: Charging With Trailer Towing System Wiring Diagram (3 Of 3)
G08795385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
