Accelerator Pedal Rod
›
Components
Accelerator Pedal Rod: Components

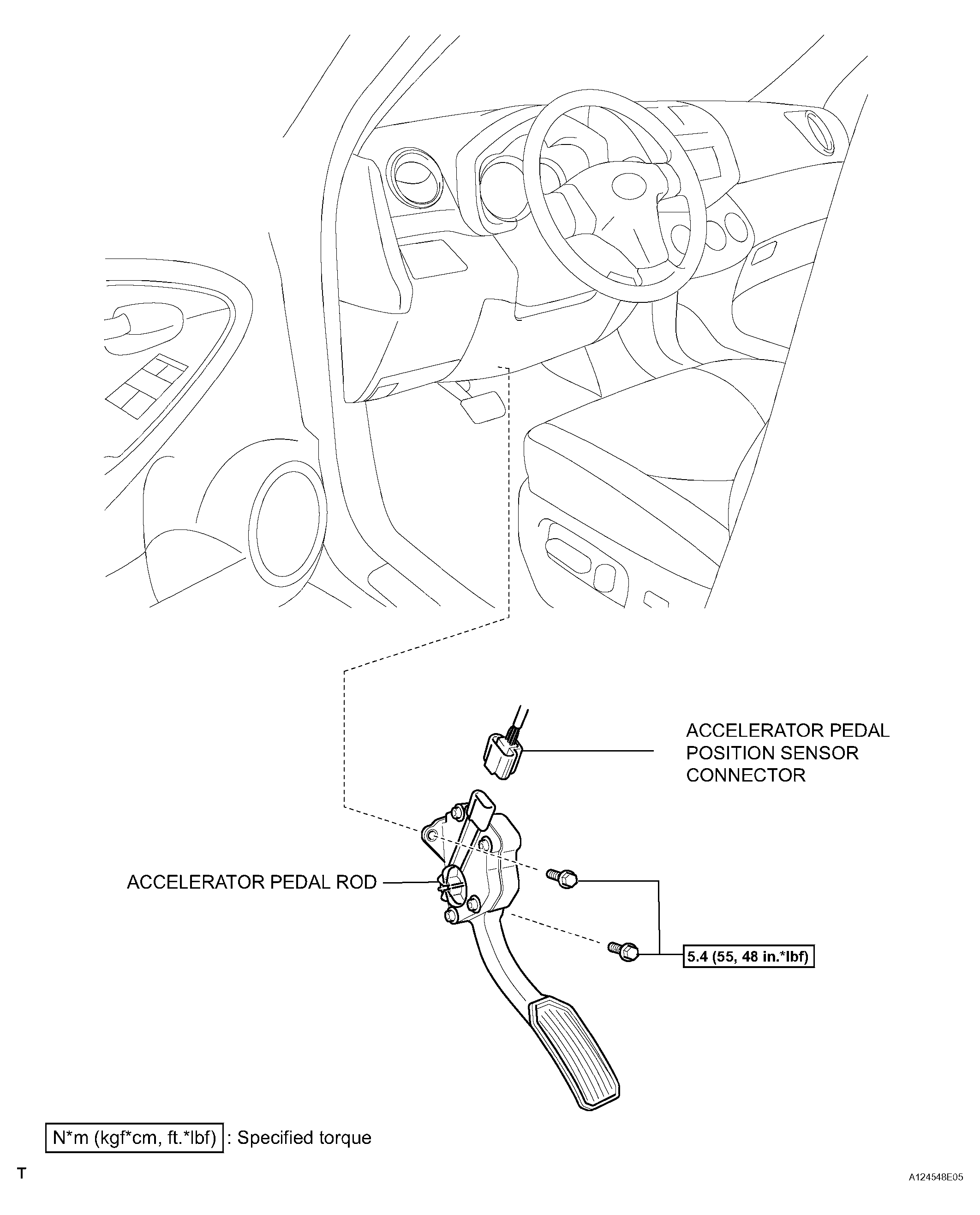

Fig 1: Accelerator Pedal Rod Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
