Knock Sensor: Components

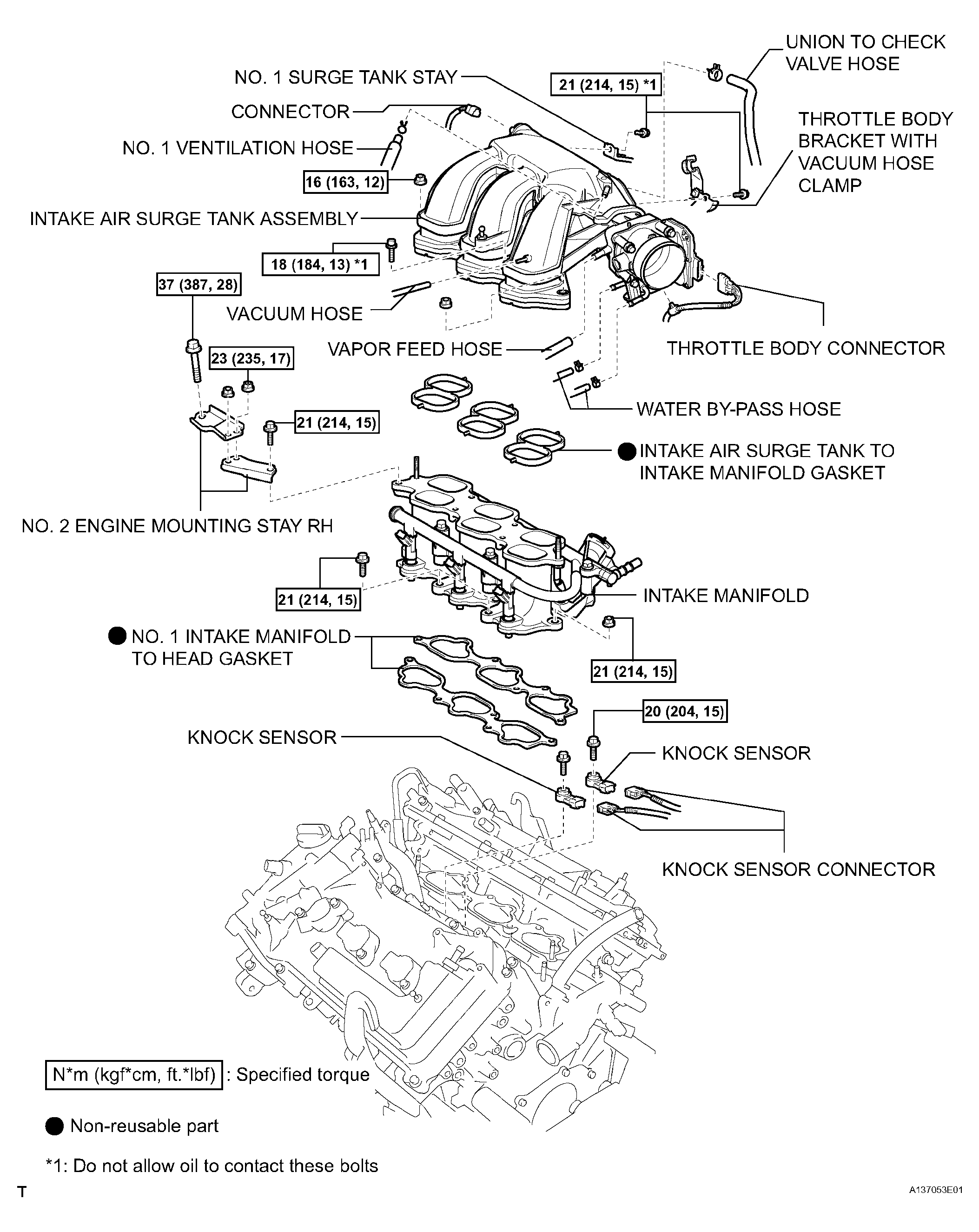

Fig 1: Knock Sensor Replacement Components With Torque Specifications

G04484560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
