ACIS Control Circuit: Wiring Diagram

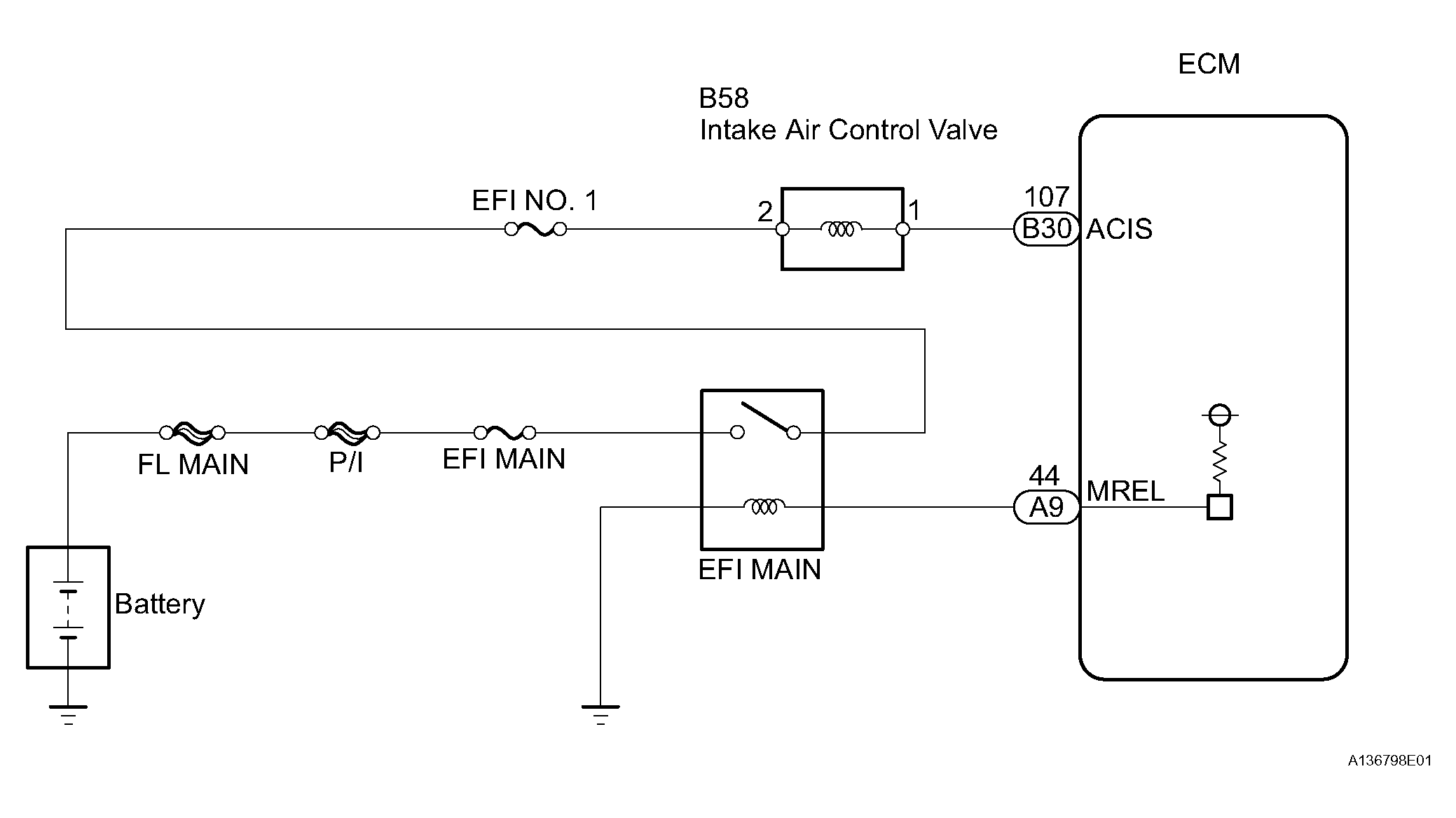

Fig 1: ACIS Control - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
