Ignition Coil: Installation

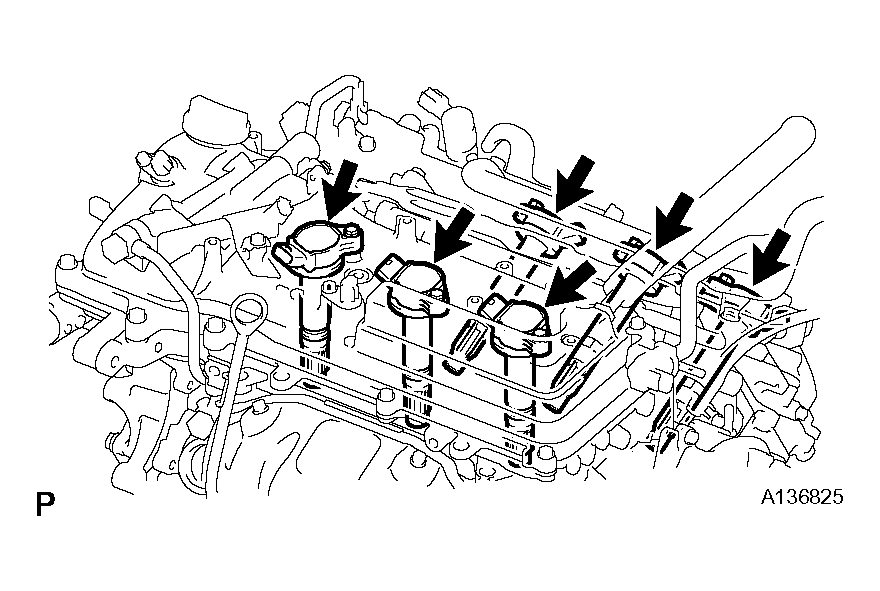

- Install the 6 ignition coils with the 6 bolts.
Torque: 10 Nm (102 kgf.cm, 7 ft.lbf)
- Connect the 6 ignition coil connectors.
- Install intake air surge tank assembly (See step 22 under INSTALLATION ).
- Install the V-bank cover.
